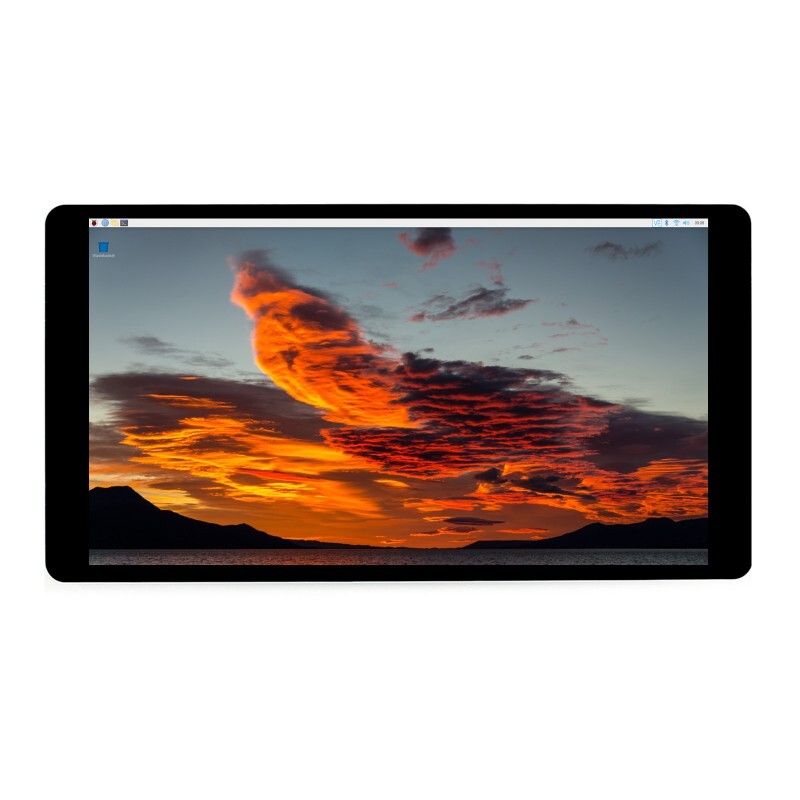

Raspberry Pi 5.5inch 2K Capacitive Touch LCD Display, HDMI Interface, IPS Screen, 1440×2560, Toughen Glass Panel, With Case(Optional)5.5″ 2K Touch Display
High Resolution | Multi-Touch | Full Color
- Size5.5″
- Display PortHDMI
- Display PanelIPS
- Viewing Angle170°
- Touch TypeCapacitive
- Touch Points10-Point
- Touch PortUSB
- Touch PanelToughened Glass
- Touch Panel TechOptical Bonding
- Audio Output13.5mm Jack
- Audio Output24PIN Header
The display orientation is portrait by default, 1440×2560 resolution (H×V). Change the software config for landscape display.
Version Options
For More Detailed Part List, Please Refer To The Package Content
The display only
The display with case
Only support Raspberry Pi 4B
Device & System Support
Raspberry PiSupports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali, single point touch, driver freePCSupports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
- For the moment, only the Raspberry Pi 4B and CM4 have adequate CPU performance to drive this 2K display completely.
- Support more powerful future versions as long as its GPU performance is equivalent to or better than the Pi 4B.
- Limited by the hardware, when working with Raspberry Pi 3B+/Pi 3B/Zero 2w/Zero w, only supports default portrait display and cannot be rotated.
- The case only supports Raspberry Pi 4B.
Connection Examples
Working With Raspberry Pi 4B
The Display Only
The Display With Case
Working With Compute Module 4
Working With Mini PC
for reference only, Raspberry Pi 4B and CM4 are not included
IPS Display Panel
Excellent Display & Color Performance
2K High Resolution
1440 X 2560 Pixels
Optical Bonding, Dust-Proof And Clearer Display
Capacitive 10-Point Touch
Support 10-Point Touch, The Actual Number Of Touch Points Is Related
To The Software And System
Toughened Glass Panel, Hardness Up To 6H
Interface IntroductionDimensions
The Display Only
The Display With Case
Development Resources
5.5inch 1440x2560 LCD x1HDMI cable x1USB type A plug to micro B plug cable x1USB adapter (B) x1HDMI adapter (B) x1HDMI to Micro HDMI adapter (C) x1USB adapter (D) x1Screws pack x1
