Raspberry Pi PoE+ HAT for Raspberry Pi 3B+/4B 802.3af/at-compliant

Price: CN $67.21

DESCRIPTION
Raspberry Pi PoE+ HAT, Compatible With Raspberry Pi 3B+/4B, 802.3af/atPower-Sourcing Equipment Required OfficialRaspberry Pi PoE+ HAT

Compatible with Raspberry Pi 3B+/4B, 802.3af/at-compliant

Product Overview

TheRaspberry Pi PoE+ HATis a Power Over Ethernet (PoE+) accessory for theRaspberry Pi 3B+/4B. Compared to its predecessorRaspberry Pi PoE HAT, it features better cooling effect, implementing the 802.3af/at standard with 5V DC/4A larger power output, providing enough power for both Raspberry Pi 3B+/4B at max load and other peripherals at the same time.

By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

Comparison POE HAT POE+ HAT PoE standard 802.3af 802.3af/at Input voltage 37-57 V DC, Class 2 device 37-57 V DC, Class 4 device Output voltage/current 5V DC/2A 5V DC/4A Current sense No Yes Transformer design Wire-wound Planar Fan Controllable brushless cooling fan Controllable brushless cooling fan
delivering 2.2 CFM for processor cooling Fan size 25 x 25mm Feature Fully isolated switched-mode power supply Compatible with Raspberry Pi 3B+/4B For Use With Raspberry Pi 3B+/4B * for reference only, please refer to the Package Content for detailed part list

Power Over Ethernet

Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable
802.3af/At-Compliant, 5V DC/4A Larger Power Output

Raspberry Pi or PoE equipment is NOT included. Stronger Air Flow, Better Cooling

25 X 25mm Brushless Cooling Fan With Fan Control, Delivering 2.2CFM Air Flow For Cooling

Outline Dimensions Selection Guide PRODUCT SUPPORTED PI POE STANDARD POE POWER OUTPUT FEATURE Raspberry Pi PoE+ HAT 3B+/4B 802.3af/at 5V 4A Raspberry Pi official (second generation) PoE HAT (B) 802.3af 5V 2.5A with OLED display, cost effective PoE HAT (C) 802.3af/at 5V 4A / 12V 2A high power, cost effective PoE HAT (D) 802.3af 5V 2.5A tailored for Raspberry Pi official case, cost effective PoE HAT (E) 802.3af 5V 2.5A mini body, tailored for Raspberry Pi official case, cost effective PoE HAT (F) Raspberry Pi 5 802.3af/at 5V 4.5A / 12V 2A with metal heatsink, high power, cost effective

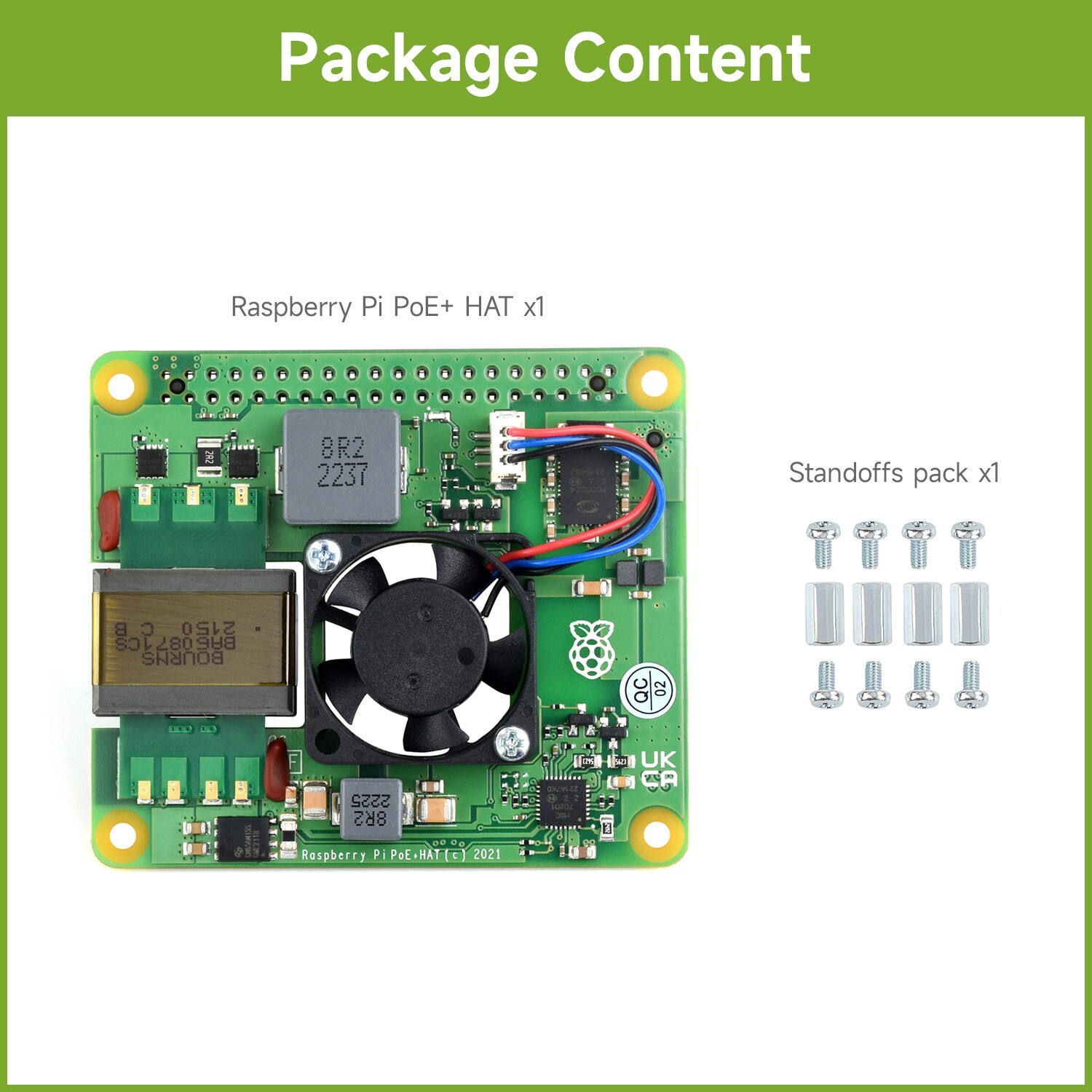

PACKAGE CONTENT

Weight:0.057 kg
