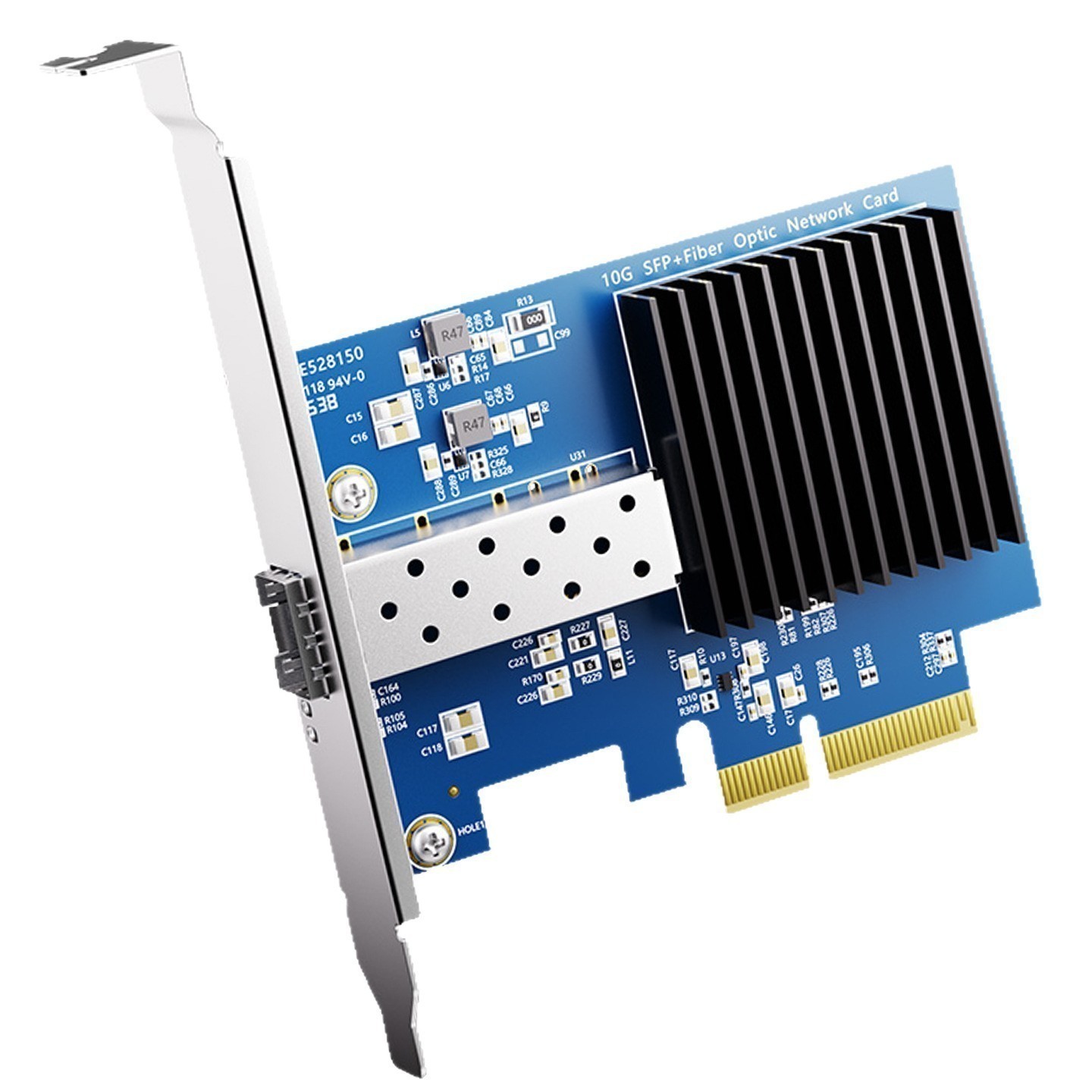

Realtek RT8127AF 10G-SFP LAN Optical Port PCI-E 3.0-4X diskless network Card PXE
RTL8127AF 10GbE SFP+ Fiber Ethernet Server Adapter
Transforming the data center through a reliable and unified 10GbE network
Overview
PCI Express X4 10GbE SFP+ Fiber Server adapter, adopts Intel third-generation WMB network controller RTL8127, By providing unparalleled features of virtualization, flexible features of LAN and SAN network, and proven reliable performance, it solves the high requirements of the generation data center, it has Single 10Gps SFP+ port which can setup a long-distance link with a file server or a remote workstation.Features & Benefits.PCI Express* 3.0, REALTEK RTL8127AF 10GbE SFP+ Fiber NICs , deliver the performance that demanding applications require. Industry-leading product innovations for I/O virtualization that are ideal for the dynamic data center.Unified networking support simplifies the network infrastructure by allowing LAN, SAN, and IPC traffic to share the samedata center fabric.Energy-efficient design with integrated SFI/KR PHYs that creates new opportunities for Blades and LAN-on-motherboard(LOM) solutions.
High-volume stable architecture with broad operating system support.
General specification
Controller-processor REALTEK RTL8127AF Ethernet Controller
Bus type PCI Express 3.0 (5.0 GT/s)
Bus width 8-Lane PCI Express
Connectors 1 x SFP+ LC Connectivity
Data rate Optical: 1 GbE/10 GbE
Direct Attach: 10 GbE
Network Standards
Physical Layer Interface 10GBASE-SR, 10GBASE-LR , SFP+ Copper Direct Attach physical media.
IEEE 802.3ad, IEEE 802.3x Flow Control - IEEE 802.1q VLAN, IEEE 802.1p, IEEE802.3ae
Tx / Rx IP, TCP, & UDP checksum offloading (IPv4, IPv6) capabilities
Operating System Windows Vista / Win 7 / Server2012 / Server2008 / Win 8 / Win 8.1 / Server2016 / Win 10/WIN11,FreeBSD, Linux , VMWare ESXi
Hardware & environment
LED Indicators Link (solid) and ACT IVITY (blinking)
Link speed ( green=10 Gbps; yellow=1 Gbps)
Operating temperature 0 °C to 55 °C (32 °F to 131 °F)
Storage temperature -40 °C to 70 °C (-40 °F to 158 °F)
Storage humidity Maximum: 90% non-condensing relative humidity at 35 °C
