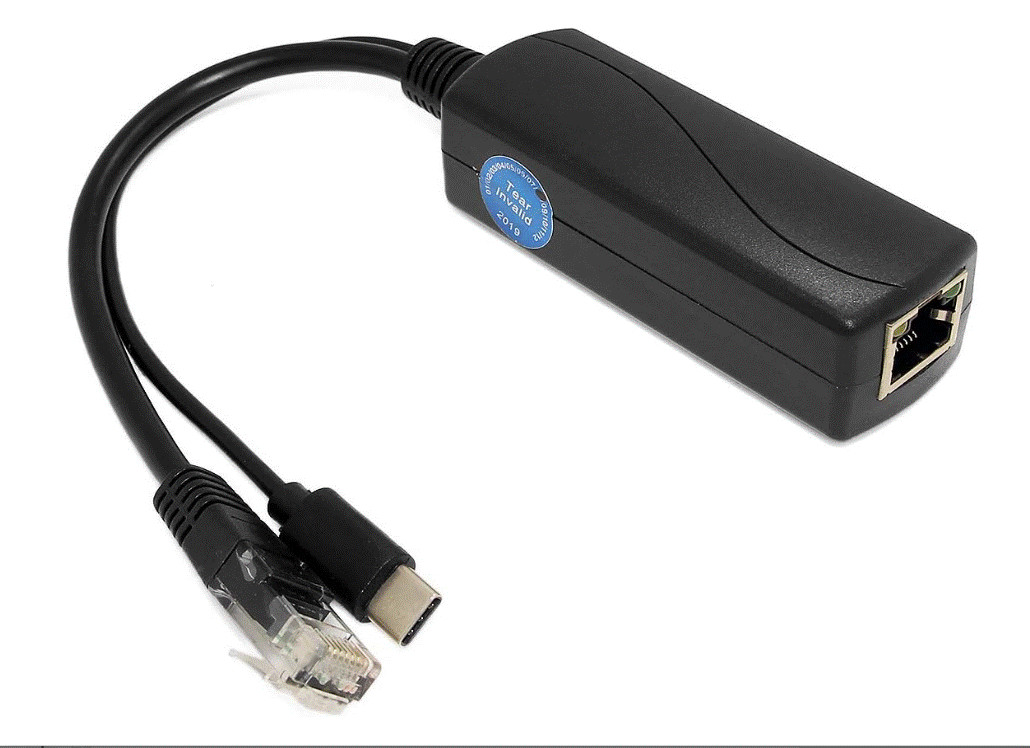

TYPEC0503 PoE splitter,a new model: With RJ45 portand TYPEC port.
it is an economical and practical PoE remote powerequipment base on IEEE802.3af standard. It can separate the power and data viacable transmission. Proper matching with a PoE switch or PSE injector thatmeets IEEE802.3af standards. Provides power and data at the same time forterminal devices that do not support PoE.

Specifications：
Support international standard IEEE802.3 af;
The POE port supports 10/100 Mbps data transmission
PD supports 44V-57V voltage transmission, automaticallydetects the power supply from the PSE power supply module
5V/3A power output using Type-C, the Type-C port isonly for power charging.
Support the isolation circuit protection, which caneffectively protect electrical equipment.
Support the short circuit, overvoltage protection
1500V high voltage isolation

Model: TYPEC0503
Transfer Rate: 10/100Mbps
Power: Input 48V DC /0.6A, Output 5V/3A
Standard: IEEE802.3 af
TRNF: 1/2(+),3/6(-);4/5(+),7/8(-)
Interface Type: 1 Input RJ45 port, 1 output RJ45port, 1 DC output（Type-C）
Standard: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3x, IEEE 802.3 af
LED: Yellow PoE lamp
Temperature: Work within -20~50°,Storage within-30~60°
Humidity: Work within 10%~90% (Non-condensing),Storage within 5%~95% (Non-condensing)
Dimension: 27.5 x 2.8 x 2.3cm
Weight: 0.05kg
