New in the Box

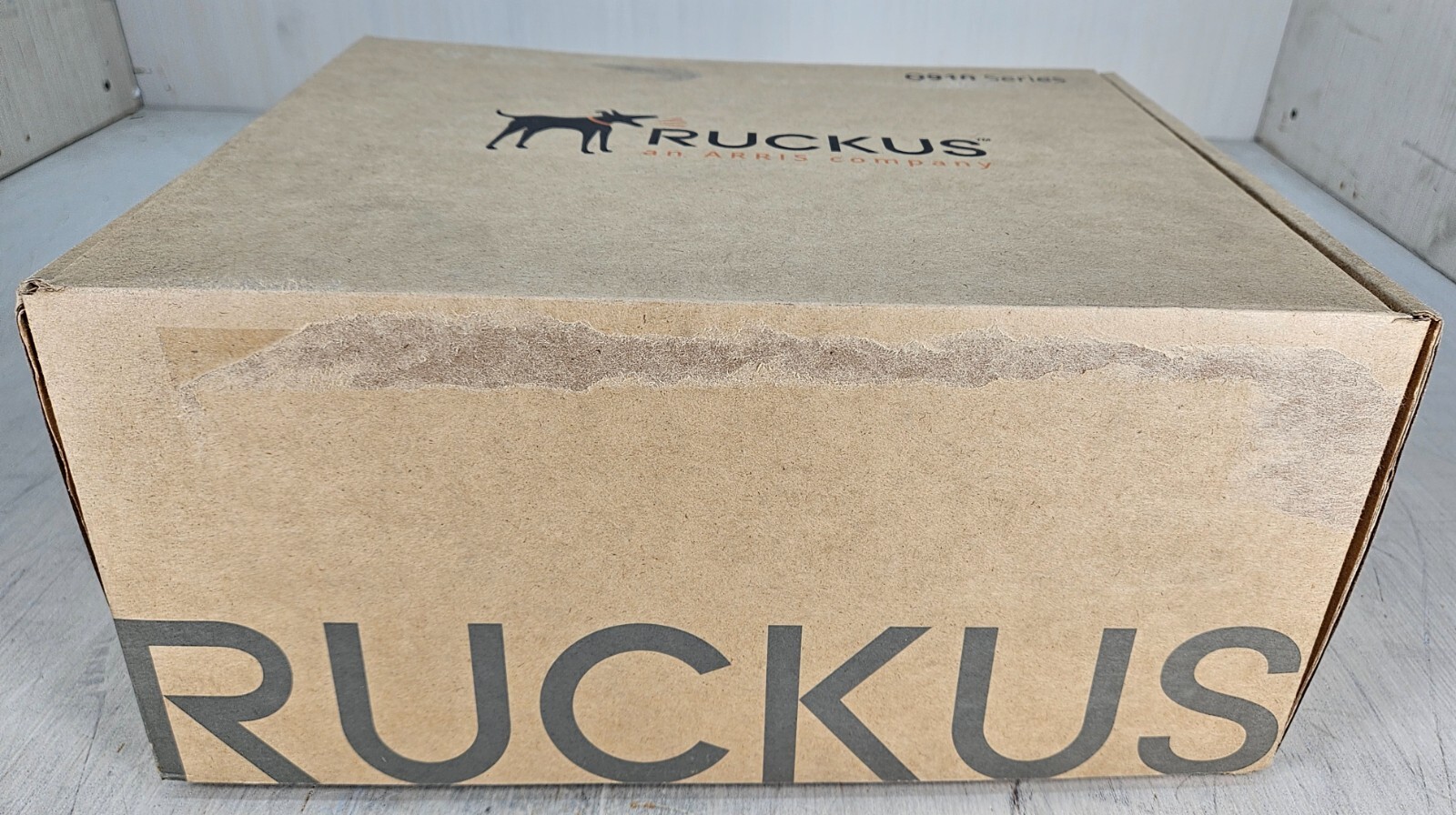

Ruckus Q910 CRBS Integrated LTE Outdoor Wireless Access Point P01-Q910-US02
Integrated Outdoor LTE Access Point for the 3.5GHz CBRS Band
Features and BenefitsThe RUCKUS Q910 is an outdoor pole, wall or strand-mounted LTE Access Point for CBRS. Q910 offers the highest CBRS capacity available in a fully-integrated, rugged outdoor package.

• Stunning Performance - The RUCKUS Q910 offers the highest capacity available in the US CBRS band. Aggregating up to four CBRS channels, Q910 can offer over 200Mbps of combined throughput to users in high-density areas such as stadiums, outdoor malls, resorts, and enterprise campus environments
• Multiple Applications - From mobile coverage and capacity, to industrial Private LTE and neighborhood broadband, Q910 covers a broad gamut of CBRS use cases
• Advanced Technology - Q910 is packed with advanced 3GPP and proprietary technology, such as LTE-Advanced Carrier Aggregation, Self-Organizing Networks (SON), Self-Organizing Timing and Zero-Touch Provisioning™that make the solution both extremely powerful as well as easy to deploy
• Wi-Fi-Like Simplicity - Q910 is ideal for campus and neighborhood LTE wireless networks that deploy with the economics and simplicity of Wi-Fi
• Lightweight and Efficient - Q910 can be discreetly attached to anything from light poles to buildings, and can even hang from a cable strand. It also sips power to keep your OPEX costs in ClassificationRegional AvailabilityAsia | Australia/New Zealand | EMEA | Latin America | North AmericaProduct TypeCBRS access pointProduct BrandRUCKUS®General SpecificationsTechnology3GPP Release 13 TD-LTE Small Cell (eNodeB)Antenna Gain, maximum, per antenna3 dBiAntennas, quantity4Bandwidth, maximum40 MHzBandwidth Configurations10+20 | 20 | 20+20 | Non-contiguous 10Concurrent Users, maximum64Effective Isotropic Radiated Power (EIRP), maximum1 WEMS SupportRUCKUS Cloud LTEEPC SupportStandard 3GPP S1 InterfaceEthernet Ports2 x 1 GbE RJ45Frequency BandCBRS B48 (3550-3700 MHz)MIMO ConfigurationDual 2 x 2 MIMONetwork ProtocolIPSec | IPv4 / IPv6 | VLANOutput Ports, quantity4Output Power, per port24 dBmPower PortsInput: PoE+ In (IEEE 802.3at)SAS SupportWINN Forum TS1.0Throughput, maximum200 Mb/sTiming PortsBuilt-in GPS | IEEE 1588 v2 PTPTypeOutdoor integratedDimensionsHeight101.6 mm | 4 inWidth241.3 mm | 9.5 inLength317.5 mm | 12.5 inElectrical SpecificationsPower Consumption, maximum20 WEnvironmental SpecificationsOperating Temperature-40 °C to +65 °C (-40 °F to +149 °F)Standards ComplianceFCC Part 96 | OnGo™| ULPackaging and WeightsWeight, net2.495 kg | 5.5 lb
