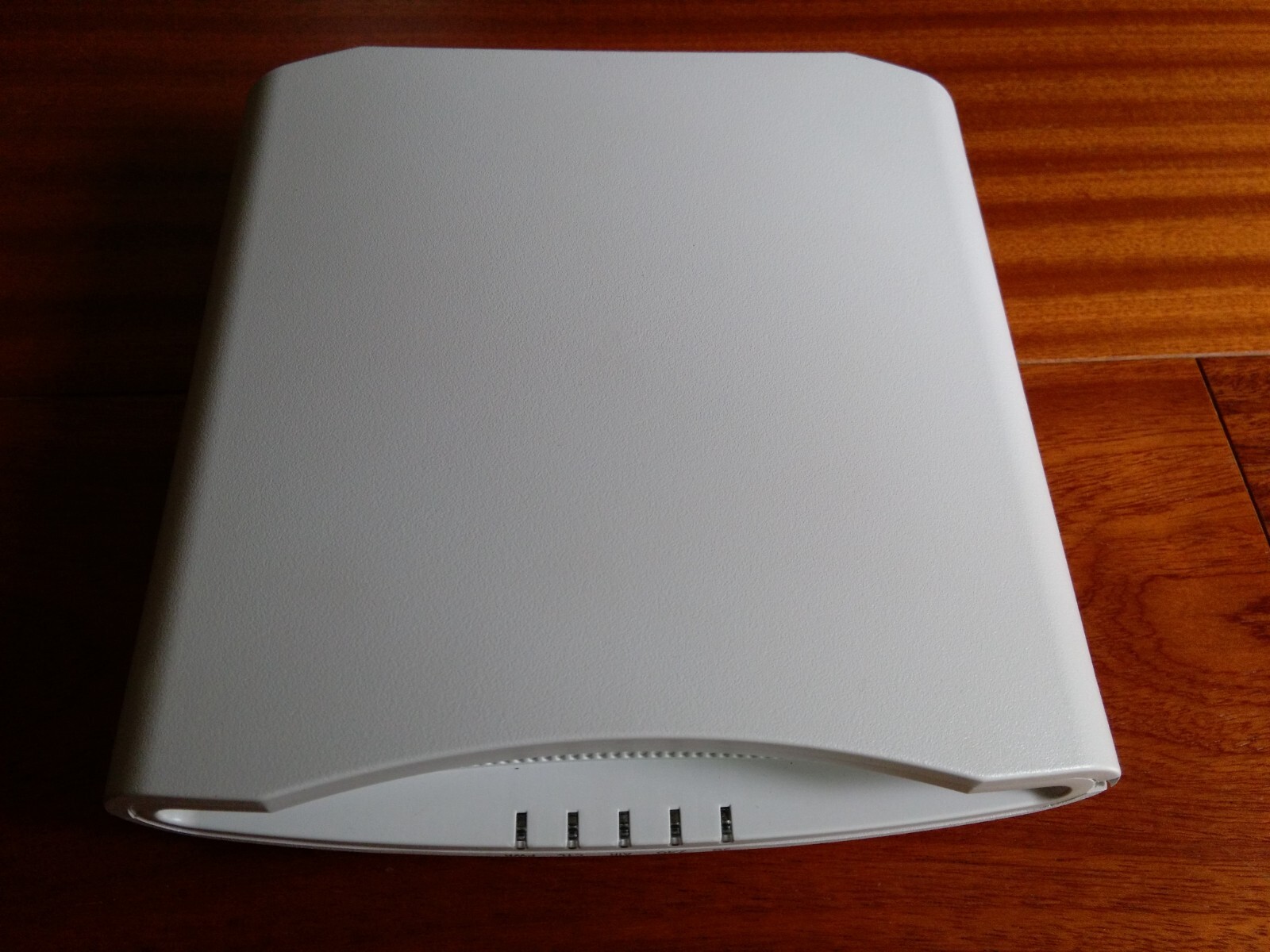

Used, in good condition. Tested and reset to default. Loaded with the latest UNLEASHED firmware.
WI-FI
Wi-Fi Standards
• IEEE 802.11a/b/g/n/ac Wave 2
Supported Rates
• 802.11ac: 6.5 to 1,733Mbps (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80)
• 802.11n: 6.5 Mbps to 600Mbps (MCS0 to MCS31)
• 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps
• 802.11b: 11, 5.5, 2 and 1 Mbps
Supported Channels
• 2.4GHz: 1-13
• 5GHz: 36-64, 100-144, 149-165
MIMO
• 4x4 SU-MIMO
• 4x4 MU-MIMO
Spatial Streams
• 4 streams for SU-MIMO
• 3 streams for MU-MIMO
Channelization
• 20, 40, 80MHz
Security
• WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i, Dynamic PSK
• WIPS/WIDS
Other Wi-Fi Features
• WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v
• Hotspot
• Hotspot 2.0
• Captive Portal
• WISPr
RF
Antenna Type
• BeamFlex+ adaptive antennas with polarization diversity
• Adaptive antenna that provides 4,000+ unique antenna patterns
Antenna Gain (max)
• Up to 3dBi
Peak Transmit Power (aggregate across MIMO chains)
• 2.4GHz: 28dBm
• 5GHz: 28dBm
Minimum Receive Sensitivity
• -104dBm
Frequency Bands
• ISM (2.4-2.484GHz)
• U-NII-1 (5.15-5.25GHz)
• U-NII-2A (5.25-5.35GHz)
• U-NII-2C (5.47-5.725GHz)
• U-NII-3 (5.725-5.85GHz)
PERFORMANCE AND CAPACITY
Peak PHY Rates
• 2.4GHz: 600Mbps
• 5GHz: 1733Mbps
Client Capacity
• Up to 512 clients per AP SSID
• Up to 31 per AP
