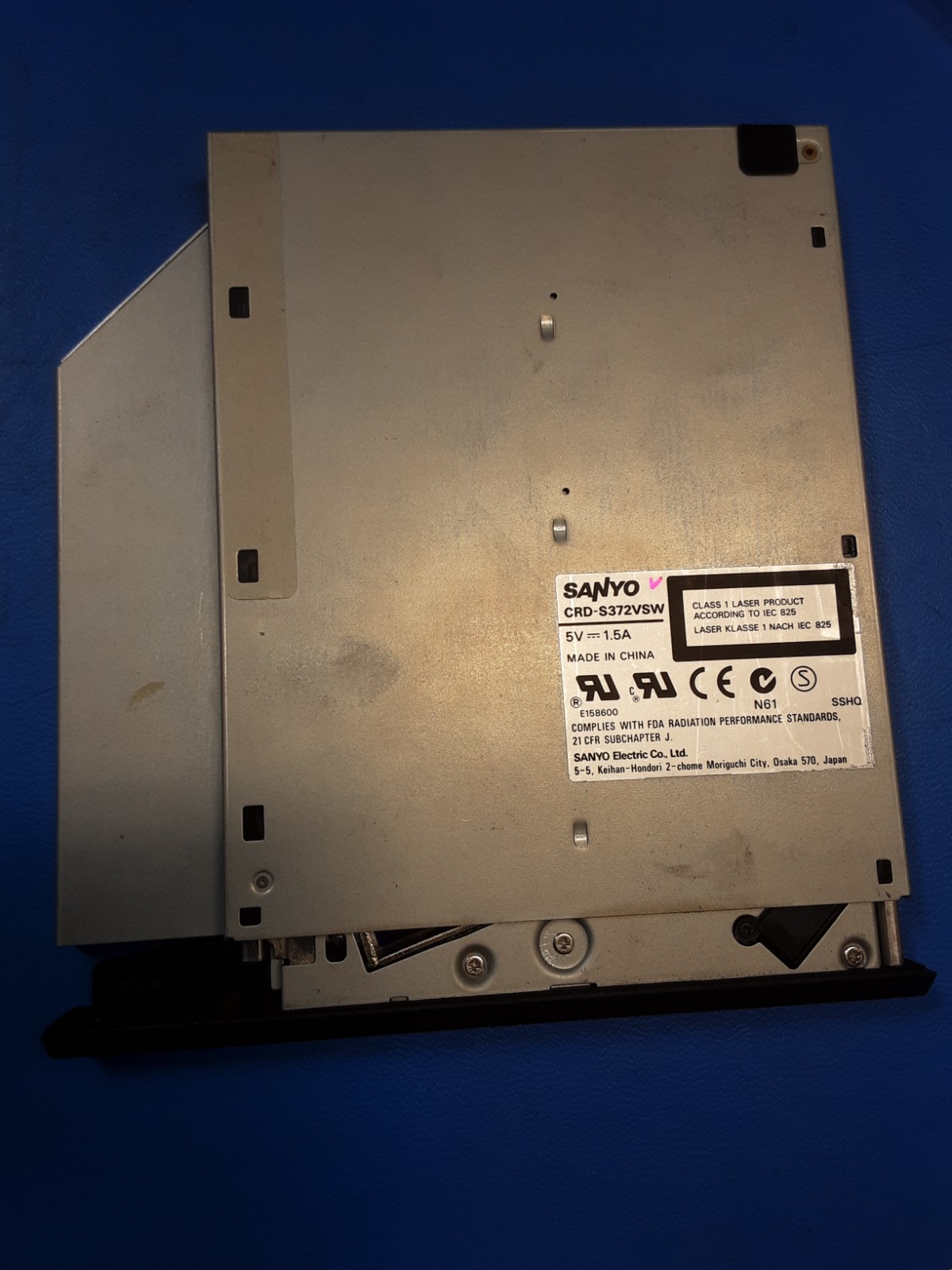

SANYO CRD-S372VSW CD-ROM Drive IBM 05K9059 05K9058 ThinkPad 24X IDE Slim Optical Drive

Item: SANYO CRD‑S372VSW Slim CD‑ROM DriveCompatibility: IBM ThinkPad systems using part numbers 05K9059 / 05K9058 Type: 24X IDE Slim Optical DriveManufacturer: SANYO Electric Co., Ltd.

This listing is for a genuine SANYO CRD‑S372VSW slim CD‑ROM drive originally used in IBM ThinkPad laptops. This is an authentic OEM part, ideal for restoring a vintage ThinkPad, replacing a failed drive, or completing a retro computing build.

✔ Features

• 24X CD‑ROM read speed

• Slim IDE interface

• IBM FRU/ASM compatibility: 05K9059 / 05K9058

• Class 1 Laser Product

• Original SANYO manufacturing quality

✔ Condition

• Pulled from a working system

• Clean, tested, and reads discs reliably

• Normal signs of use consistent with age

✔ What’s Included

• SANYO CRD‑S372VSW optical drive only (no additional accessories)

📌 Notes

Please verify compatibility with your specific ThinkPad model before purchase. This is a vintage component and may fit only certain IBM systems from the late 1990s to early 2000s.

SANYO CRD‑S372VSW Slim CD‑ROM Drive

IBM FRU/ASM: 05K9059 / 05K9058 Interface: IDE / ATAPI Drive Type: 24X Slim Optical CD‑ROM

1. General Information

• Manufacturer: SANYO Electric Co., Ltd.

• Model Number: CRD‑S372VSW

• IBM Part Numbers:

  • FRU: 05K9059

  • ASM: Type: Internal Slim CD‑ROM Drive

  • Intended Use: IBM ThinkPad laptops & docking modules (late 1990s–early 2000s)

  2. Performance Specifications

  • Read Speed:

    • 24X Max CD‑ROM (approx. 3,600 KB/s)

  • Access Time:

    • Average: ~120 ms (typical for this class)

  • Data Transfer Mode:

    • PIO Mode 4

    • Multi‑Word DMA Mode 2

    • Ultra DMA (where supported by host)

  3. Supported (read)

• CD‑RW (read)

• Multisession discs

• Mode 1 & Mode 2 Form 1/2

4. Interface & Connectivity

• Interface Type: IDE / ATAPI (Slimline 50‑pin connector)

• Connector Style: Standard Slimline Optical Drive Connector

• Eject Mechanism:

  • Electronic eject

  • Emergency manual pinhole eject

5. Electrical Specifications

• Power Requirements:

  • +5V DC, 1.5A (as labeled on unit)

• Power Consumption:

  • Active: ~5–7W

  • Idle: ~1–2W

  • Standby: <1W

6. Physical Specifications

• Form Factor: Slimline Optical Drive (12.7mm class)

• Dimensions (approx.):

  • Height: 12.7 mm

  • Width: 128 mm

  • Depth: 129 mm

• Weight: ~200–230g

• Front Bezel: Black, ThinkPad‑style slim bezel

7. Environmental Requirements

• Operating Temperature: 5°C to 45°C

• Storage Temperature: –20°C to 60°C

• Operating Humidity: 10%–80% (non‑condensing)

8. Compliance & Safety

• Laser Classification: Class 1 Laser 21 CFR Subchapter J (radiation performance)

• Other regional compliance marks (varies by batch)

9. Compatibility

Compatible with IBM ThinkPad systems that use the following FRU/ASM found in:

• ThinkPad 600 / 600E / 600X

• ThinkPad 770 series

• Select UltraBay‑compatible docking stations(Compatibility varies by bay type — users should verify before purchase.)
