This SD2IEC device comes with everything (NO SD CARD INCLUDED) you needed to support/emulate Commodore 8-bit disk drive capabilities. The design is that only cassette port and the computer's serial connector is used, leaving your user port free for other device.
The item also includes:
1) Plastic footings for the SD2IEC board.
2) The cassette breakout board that:
- supplies the 5V to power the SD2IEC device.
- provides 3.3V output (with limited current from the Commodore computer. MAKE SURE YOU DO NOT DRAW MORE THAN WHAT THE COMPUTER'S SPEC SAYS.) This is helpful for doing prototyping and cassette port related projects.
- header pins for IO.This is helpful for doing prototyping and cassette port related projects.
One cosmetic labeling mistake on the SD2IEC device. Device id label "8" and "9" are switched, same for "10" and "11". No big deal. Device IDs are set via jumper setting.

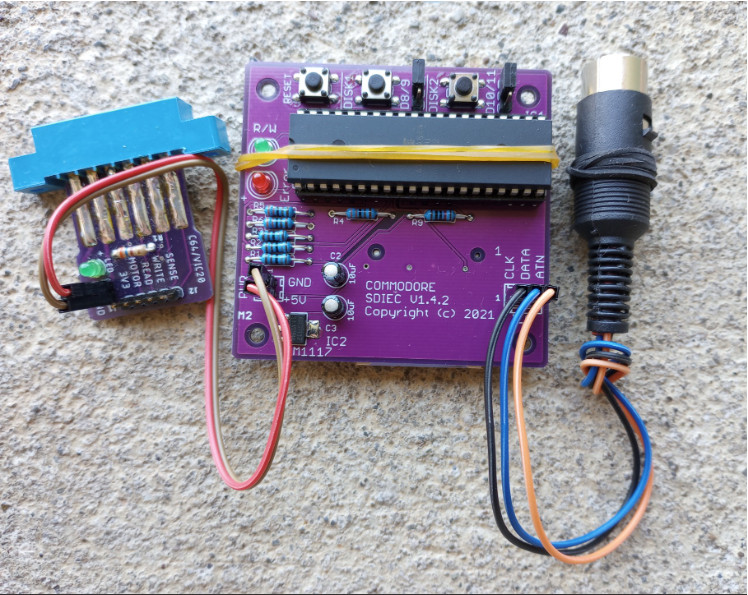

Please see photos for additional details/information.
