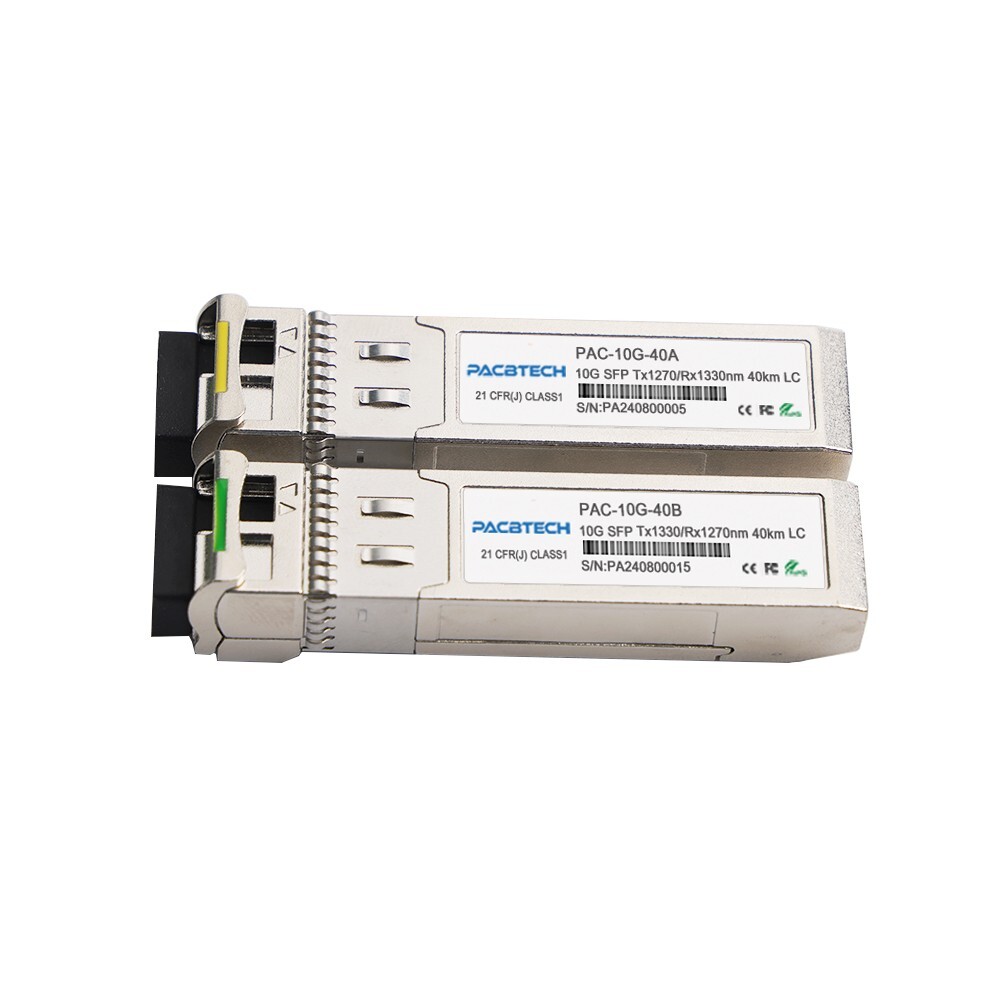

10GWDM SFP+ LC 20km 40km 60km 70km 80km 100km Optional
Wavelenth ：
1270nm/1330nm for 20km 40km 60km 70km
1490nm/1550nm for 80km 100km
Singlemode Single Fiber LC Connector
The price is for 2pcs ( 1Transmitter +1Receiver )
SPECIFICATIONS:
Type
SFP+
Technology
offeri (WDM), One Fiber
Distance
10 km
20 km
40 km
60 km
70KM
80 km
100KM
Data rate
10 Gb/s
Wavelength
Tx:1270nm/Rx:1330nm
Tx:1490nm/Rx:1550nm
Tx:1330nm/Rx:1270nm
Tx:1490nm/Rx:1550nm
Fiber/Cable Type
Single-Mode Fiber (SMF)
Connector
LC/UPC Simplex Connector
Digital Output Monitoring
Yes
(DDM, DOM, DDMi)
Distance
10 km
20 km
40 km
60 km
70KM
80 km
100KM
TX Power
-2~+3dBm
-2~+3dBm
0~+5dBm
0~+5dBm
2~+3dBm
+0~1dBm
+1~2dBm
RX Sensitivity
≤-14.5dBm
≤-14.5dBm
≤-16.0dBm
≤-22.0dBm
≤-23.0dBm
<-24dBm
<-26dBm
Operating temperature range
Commercial: 0 to 70℃ (32 to 158℉)
Manufacturer
PACBTECH
Product Features●Supports 9.95 to 10.3Gb/s bit rates●Simplex LC Connector●Hot pluggable SFP+ footprint●Uncooled 1310nm LD transmitter, 1310nm PIN photo-detector●Applicable for 3km SMF connection●Low power consumption, < 1.0W●Digital Diagnostic Monitor Interface●Optical interface compliant to IEEE 802.3ae 10GBASE-LR●Electrical interface compliant to SFF-8431●Operating case temperature: Commerical:0 to 70 °CApplications●10GBASE-at 10.3125Gbps●10GBASEat 9.953Gbps●Other optical linkProduct Descriptions10G single mode transceiver is small form factor pluggable module for optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability. The Hilinktechmodule is designed for single mode fiber and operates at a nominal wavelength 1310nm; The transmitter section meet the class 1 laser compliant according to International Safety Standard IEC-60825.The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. The transceiver designs are optimized for high perform -ance and cost effective to supply customers the best solutions fortelecommunication.
