SIDKick Pico DAC 2350 Commodore 64 and 128 (C64 / C128) MOS SID 6581 / 8580 Kit
Licensed version of SIDKick Pico 2350 - DAC stereo -SKpico2350DAC- Kit.
The SIDKick pico ("SKpico") is a drop-in replacement for the SID 6581/8580 sound chips in the Commodore 64 and 128 computers. It has been designed as an inexpensive alternative to other replacements while not making compromises regarding quality. It consists of a simple interface board and a Raspberry Pi Pico (or compatible clone). The emulation is based on an extended version of reSID 0.16, and includes a few additional features:
- dual 6581 and/or 8580 emulation, or 6581/8580 plus FM emulation
- advanced SID filter settings plus 19x measured 6581 filter curves
- 2nd-SID address at $d400, $d420, $d500, $d420 + $d500 simultaneously, $de00, $df00 (on C128 no $d500), or any address when an external chip select signal is used (e.g. for the C64 Ultimate or on Ultimate 64 boards)
- paddle/mouse support with optional anti-jittering
- built-in configuration menu (launch with "SYS 54301"/"SYS 54333", also from C128-mode)
- built-in PRG launcher ("SYS 54333,0" etc. or from the menu), PRGs can be integrated into the firmware or flashed from the configuration menu
By default, theSIDKick Pico 2350 DACversion output any audio via the 8 pin video port (mono) and byGND-R-L pin header on the top of the board (stereo)
This item include:

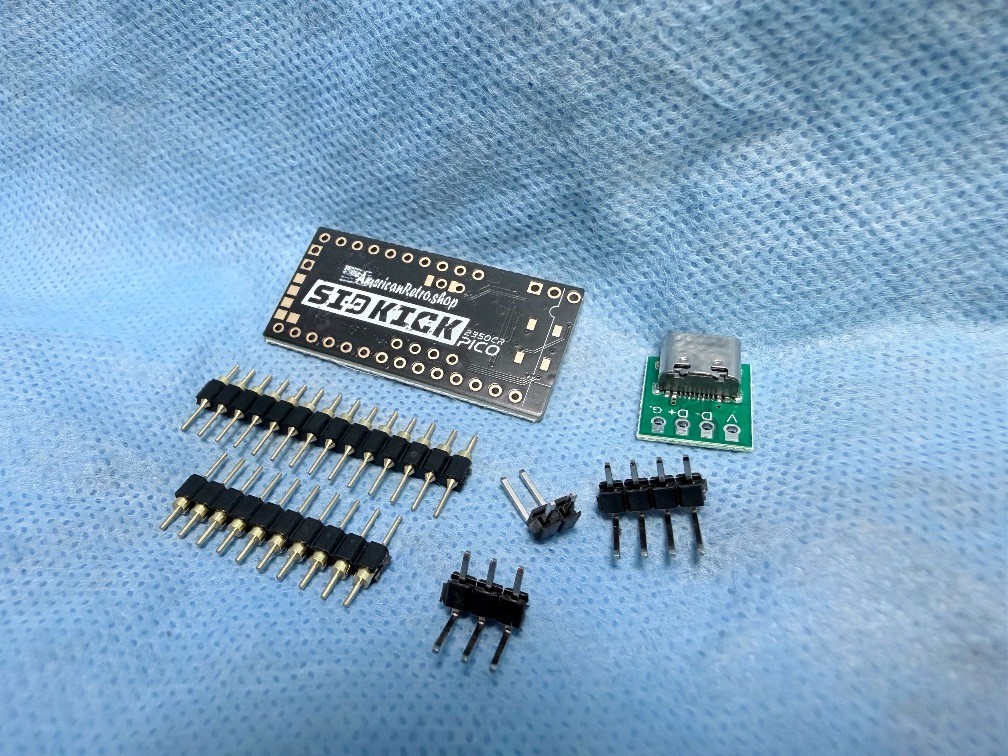

1 xSIDKick Pico2350DAC,USB 3.1 Type C Connector, All Pin Headers
(after assemblySIDKick Pico 2350DAC need to be programed by firmware from Github project page)
SIDKick Pico is based on Github project "SIDKick-pico" by Frntc.
