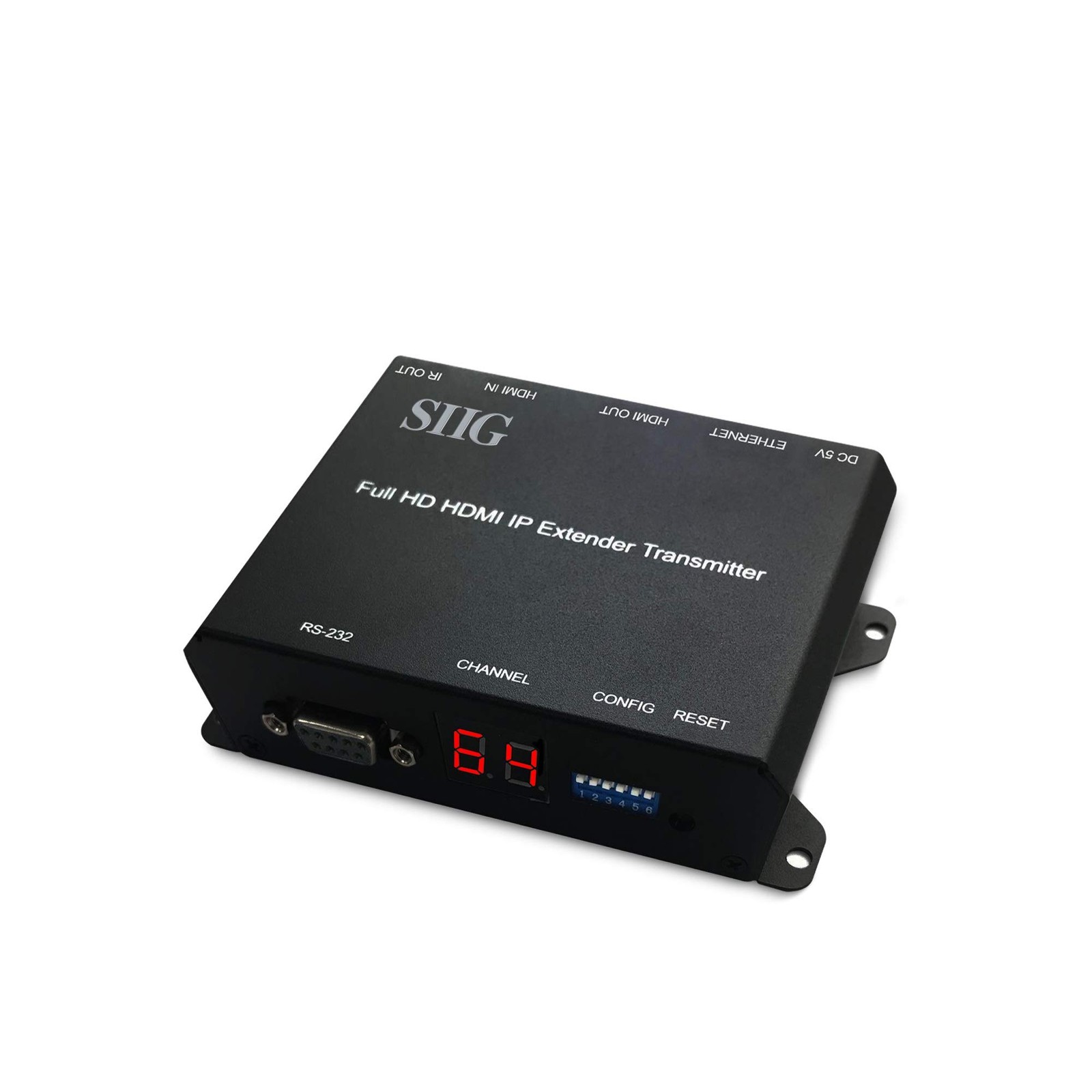

SIIG 1080p HDMI Over IP Transmitter, PoE, IR, RS-232, TAA, CE-H26411-S1 | Add a source to a matrix-configurable IP system; local loopout and separate...

ColorBlackConnector TypeHDMIBrandSIIGCompatible DevicesMonitorCable TypeHDMIBrandSIIGUnit Count1 HighlightAdd a source to a matrix-configurable IP system; local loopout and separate receiver requirement clarify deployment.Number of Items1Item Weight10.24 ouncesModel NumberCE-H26411-S1Mfr Part NumberCE-H26411-S1

• Transmitts HDMI signals with stereo audio to a remote display over UTP Cat5e/6 cabling up to 100 meters. Note: Requires Full HD HDMI Extender over IP with PoE, RS-232 & IR - Receiver, part# CE-H26511-S1, sold separately
• Power over Ethernet (PoE) powers the transmitter(s) and receiver(s) over Cat cable from your PoE Gigabit Switch (purchase separately)
• Full HD 1080p video resolution delivers stunning and clear images & Local HDMI loop-out allows you to monitor the extended display from the source location
• IR pass back function controls the source device from remote RX location & Computer control software allows you to select and switch between source devices (Matrix mode only)
• Video protocol with H.264 compression over IP & Features MP3 audio compression and stereo 192Kbps encoder/ decoder

Specifications:
Compliant with HDMI 1.3
Video resolution: 1080p 60/50, 1080p 30/25, 1080i 60/50,720p 60/50, 480i 60/50, 480p 60/50
Video compression:
H.264 compression video format Full HD encoder/ decoder
MP3 compression audio format stereo 192Kbps encoder/ decoder
Media stream up to 18Mbps
HDMI Audio: Stereo 192Kbps
IP PROTOCOL: TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4
LAN port: RJ-45 connector for 10/100 BASE-T Cat extension
Serial port: DB-9 RS-232 female connector
Power input: RJ-45, Power over Ethernet (PoE), 36V to 57V, 7W in
ESD protection: Air gap discharge +-8KV, contact discharged +- 4KV
Product:
Dimensions: 5.12" (W) x 3.23" (H) x 1.19" (D)
Weight: 0.64 lbs
Housing material: Metal Housing
Housing color: Black
Connectors:
1x 19-pin HDMI, Type-A, Female, Input
1x 19-pin HDMI, Type-A, Female, loop Output
1x 8-pin RJ45, Output
1x 3.5mm phone jack for IR
1x 9-Pin RS-232 Serial
1x 6-pin DIP Switch for channel
Power jack: 5V/2A input, 5.5mm (OD) x 2.1mm (ID) x 10mm (D) (required with non-PoE Gigabit Switches or 1-to-1 (TX/RX) direct connection), power adapter purchase separately
Environmental conditions:
Operating temperature: 32 to 122 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Country of origin: China

System Requirements:
Full HD HDMI Extender over IP with PoE, RS-232 & IR - Receiver, part number CE-H26511-S1, sold separately
IGMP PoE Gigabit Switch recommended for best performance and reliability
Cat5e/6 cable using T568B wiring standard (Cat6 recommended)
Power adapter, required with non-PoE Switches or direct TX-to-RX connection, purchase separately: Power plug dimensions: 5.5mm (OD) x 2.1mm (ID) x 10mm (L), Output: DC 5V/2A
