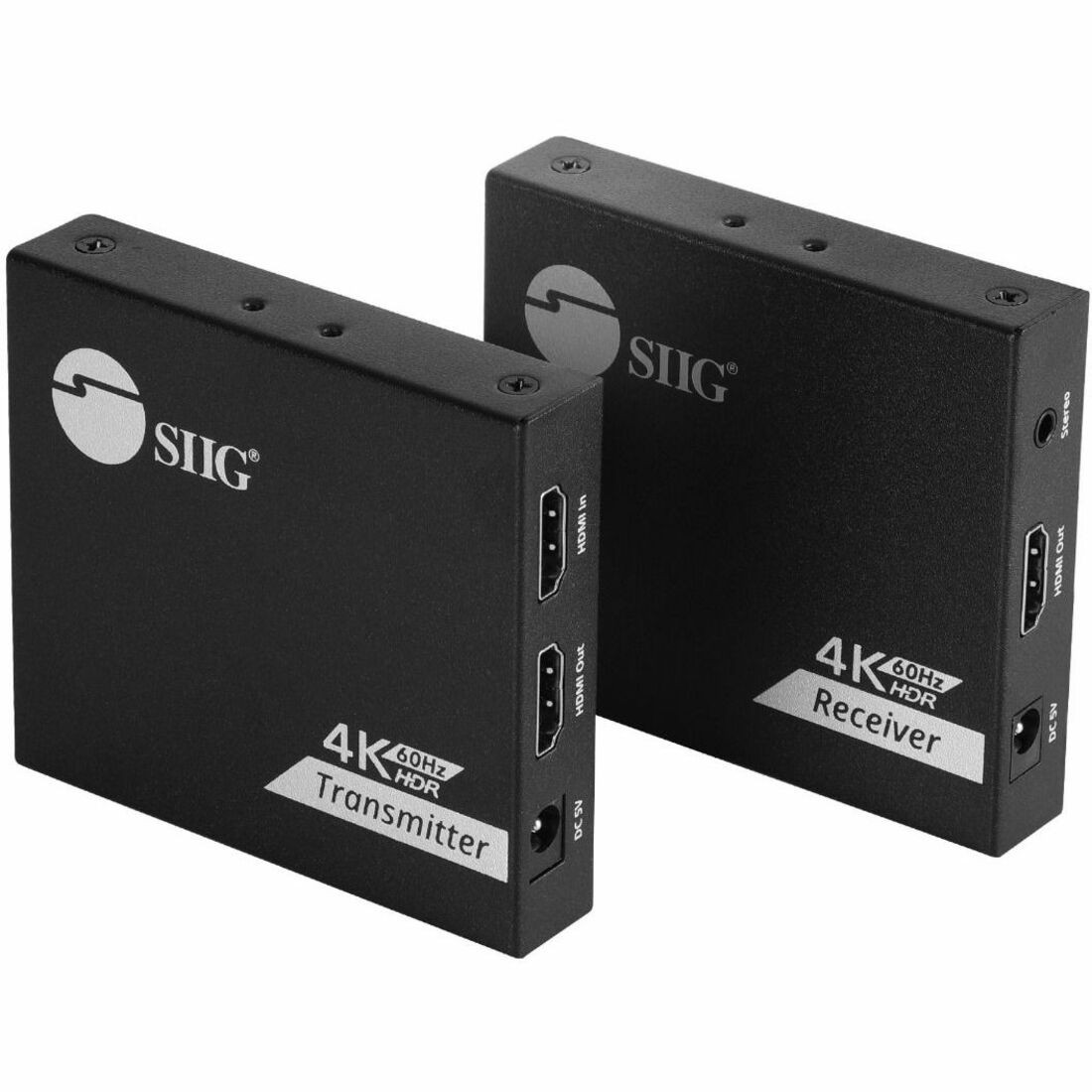

SIIG 4K 60Hz HDMI Over Cat6 Extender with Loopout & IR (ce-h27d11-s1) SIIG 4K 60Hz HDMI Over Cat6 Extender with Loopout & IR (ce-h27d11-s1)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: 1 x Transmitter 1 x Receiver 2 x Power Adapter IR Blaster extension cable IR Receiver extension cable 4 x Mounting Ears 8 x Screws User Manual
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Product Description
This item is brand-new, factory sealed.
Features
Extends HDMI signals from DVD players, game consoles, or HDMI-equipped computers up to 230ft via Cat6/7 networking cable, ideal for home theater, conference room or other audio/video applications that require remote location setup
Delivers video content up to UHD 4K@60Hz with zero latency up to 230ft/70m through a Cat6/7 network cable, support HDR 10
The transmitter can work as an HDMI splitter with the additional HDMI output design and allows screen mirroring to another display device
Supports PCM / DTS-HD/ Dolby Digital 5.1ch via HDMI and 3.5mm stereo audio from receiver
Supports EDID passthrough and auto downscaling
Protection, Surge Protection, ESD Protection provides durability and minimizes EMI/RFI noise interference.
Premium metal housing offers excellent heat dissipation further enhances durability for dependable performance and long life
Plug-n-Play installation, no software installation or hardware setup is required
Multiple Connectivity Ports
Comes with one HDMI video input port, one HDMI video loop-out port, one HDMI video output port, two RJ45 network ports, one 3.5mm IR emitter port, one 3.5mm IR receiver port, one 3.5mm stereo audio port, two reset buttons, two DC power jacks (5V/1A)
Applications
Lecture hall
Educational facilities
Multimedia education
Home theater
Restaurant
Shopping center
Digital signage
Meeting room
Trade show
Library
Show room
Church Compliant with HDCP 2.2, support HDR 10 Supports resolution:
Up to 3840x2160 at 60Hz Maximum transfer rate:
18Gbps Audio:
PCM 7.1 / DTS-HD / Dolby Digital 5.1ch via HDMI and 3.5mm stereo audio from receiver Transmission Distance:
4K at 60Hz Up to 230ft/70M via Cat6/7 cable HDMI cable length:
up to 5 meters (Input and output) IR Remote Control:
20-60Hz Frequency Range Product:
Color:
Black
Housing:
Metal Transmitting unit (TX):
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 19-pin HDMI, Type A, Female, Loop out
1x 3.5mm jack, IR Blaster
1x 8-pin, RJ45 Output
1x Reset Button
1x Power Jack Receiving unit (RX):
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 3.5mm jack, IR Receiver
1x 3.5mm jack, L/R Audio Output
1x 8-pin RJ45, Input
1x Reset Button
1x Power Jack Power adapter:
Input: 100-240V / 50-60Hz
Output: DC 5V/1A
UL listed: E335801 / Level: VI Environmental conditions:
Operating temperature:
-20 to 60 degrees F
Storage temperature:
-30 to 70 degrees F
Relative humidity:
0% to 90% RH (non-condensing) Certifications/Standards:
FCC, CE, RoHS Interface
Transmitter (TX)
1x 19-pin, HDMI, Female (input)
1x 19-pin, HDMI, loop-out, Female (output)
1x 3.5mm infrared jack, IR emitter (output)
1x 8-pin, RJ45 (output)
1x Reset button
1x DC power jack, 5V/1A Receiver (RX)
1x 19-pin, HDMI, Female (output)
1x 3.5mm infrared jack, IR receiver (input)
1x 8-pin, RJ45 (input)
1x 3.5mm L/R stereo audio
1x Reset button
1x DC power jack, 5V/1A Package contents
4K 60Hz HDMI Over Cat6 Extender with Loopout and IR
Power adapter (x2)
IR Blaster extension cable
IR Receiver extension cable
Mounting ears (x4) and Screws (x8)
User ManualItem Dimension (L inchxW inchxH inch)
8 x 4 x 6
Weight
2.00 lb
Warranty Information
NA SpecificationPower DescriptionFrequency
Physical CharacteristicsTransmitter Weight (Approximate)4.80 ozReceiver Width3.35"Receiver Height0.65"Product ColorBlackReceiver Depth2.97"Transmitter Depth2.97"Receiver Weight (Approximate)4.80 ozTransmitter Height0.65"Transmitter Width3.35"WarrantyLimited Warranty2 YearInterfaces/PortsNetwork (RJ-45)YesHDMI OutYesNumber of HDMI Inputs1HDMI InYesNumber of HDMI Outputs2Number of Network (RJ-45) Ports2VideoGraphics Modes4KGeneral InformationBrand NameSIIGMarketing Information Multiple Connectivity Ports Comes with one HDMI video input port, one HDMI video loop-out port, one HDMI video output port, two RJ45 network ports, one 3.5mm IR emitter port, one 3.5mm IR receiver port, one 3.5mm stereo audio port, two reset buttons, two DC power jacks (5V/1A) Applications Lecture hall Educational facilities Multimedia education Home theater Restaurant Shopping center Digital signage Meeting room Trade show Library Show room Church Product TypeVideo Extender Transmitter/ReceiverProduct Name4K 60Hz HDMI Over Cat6 Extender with Loopout & IRManufacturerSIIG, IncManufacturer Part NumberCE-H27D11-S1Media & PerformanceTwisted Pair Cable StandardCategory 7Media Type SupportedTwisted PairTitleProduct TitleSIIG 4K 60Hz HDMI Over Cat6 Extender with Loopout & IR (CEH27D11S1)Technical InformationMaximum Operating Distance230 ftNumber of Input Devices Supported1Connectivity TechnologyWiredNumber of Output Devices Supported2 Shipping
