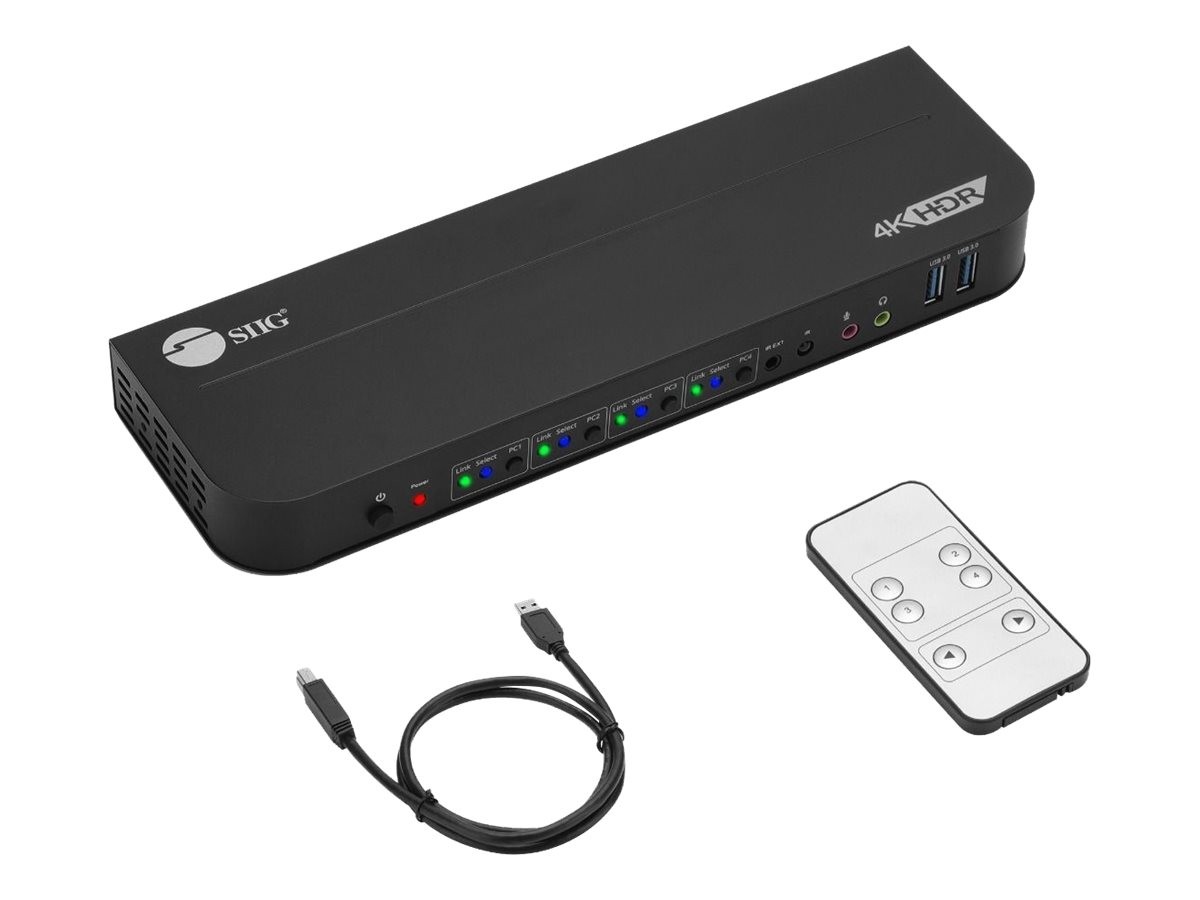

SIIG 4x1 DisplayPort 4K KVM USB 3.0 Switch with Remote Control (ce-kv0d11-s1) SIIG 4x1 DisplayPort 4K KVM USB 3.0 Switch with Remote Control (ce-kv0d11-s1)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: 4x1 DisplayPort 4K KVM USB 3.0 Switch with Remote Control Power Adapter 4 x USB 3.0 Type-A to B IR Extender Cable IR Remote Control User Manual
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Product Description
This item is brand-new, factory sealed.
Overview
4x1 DisplayPort KVM Switch, allows you to control 4 DisplayPort 1.4 computers using one keyboard and mouse, DP 1.4/8K@30 or HDMI 4K@60, USB 3.2 Gen1 ports, Microphone input, and Stereo audio output, Switch button, Hotkeys, Remote control
Features
Easily control 4 DisplayPort 1.4 computers and switch a DisplayPort or HDMI display/monitor with one set of keyboard & mouse improve your work efficiently
Effortless Switch
Easily switching between computer/device via the front panel push button, USB keyboard hotkeys or IR remote control make this 4x1 DisplayPort 4K KVM USB 3.0 Switch with Remote Control user-friendly to operate
4K/8K Ultra HD Resolution
Allows you to connect either a single UHD 8K (7680x4320) @30Hz resolution through a DisplayPort 1.4 port or a single UHD 4K (3840x2160) @60Hz through a DisplayPort 1.2 or HDMI port to display the crystal-clear video quality. Supports 3D and deep color
High Performance
Comes with four DisplayPort video input ports, four USB 3.2 Gen 1 Type-B ports (Host), twelve 3.5mm phone jacks to connect stereo speakers/earphones and microphones, one DisplayPort video output port, one HDMI video output port, two USB 3.2 Gen 1 Type-A, two USB 2.0 for keyboard & mouse connection, one 3.5mm Infrared jack to extend the IR signal, one IR sensor, four switch buttons, one power button, and one DC power jack (5V/3A)
USB Data Transfer
Delivers two SuperSpeed USB 3.2 Gen 1 Type-A ports up to 5Gbps data transfer rate on the front side for Flash drive, Printer, and other USB peripheral devices. And two High Speed USB 2.0 Type-A ports up to 480Mbps data transfer rate for independent HID keyboard and mouseSoftware
OS Compatibility
Windows 11, mac OS 12.x or newVideo
DisplayPort 1.4
Resolution: up to 8K (7680x4320) at 30Hz, video bandwidth:32.4Gbps
DisplayPort 1.2
Resolution: up to 4K (3840x2160) at 60Hz, video bandwidth: 21.6Gbps
HDMI
HDCP 2.2, Resolution: 4K (3840x2160) at 60Hz, video bandwidth: 18GbpsUSB data transfer rate
USB 3.2 Gen 1
2x Type-A, up to 5Gbps, 5V/900mA
USB 2.0
2x Type-A, up to 480MbpsAudio
7.1 channel surround sound from DisplayPort/HDMI port
PCM 2.1 channel stereo digital audio for 3.5mm audio jackPower Adapter
Input
AC 100-240V / 50-60Hz
Output
DC 5V/3A
ETL P/N
4006448Environmental conditions
Operating temperature
32 to 114 degrees F
Storage temperature
14 to 178 degrees F
Relative humidity:
5% to 90% RH (non-condensing)Product Info
Color
Black
Housing material
MetalCertifications/Standards
FCC, CE, RoHS, REACH
Country of origin: ChinaItem Dimension (L"xW"xH")
12 x 3 x 8
Weight
3 lbs
Warranty Information
2-Year SpecificationPower DescriptionInput Voltage Range100-240VACFrequency
Physical CharacteristicsWeight (Approximate)1.11 Warranty2 YearInterfaces/PortsNumber of USB Ports8Number of HDMI Ports1Number of 2.0YesVideoMaximum Video Resolution3840 x 2160General InformationBrand NameSIIGMarketing Information Features Control four computers with DisplayPort 8K@30Hz video system via one set of keyboard and mouse The single-head DisplayPort switcher on the market to offer DisplayPort 8K@30Hz or HDMI 4K60Hz output, it features Auto-EDID detection which ensures visual workspaces and screen resolutions are easy to connect to a new system every time. Easily to control via simple select buttons on the front panel or using programmable hot keys on USB keyboard or using remote control to switch Comes with 2 USB 2.0 ports for keyboard and mouse connection, and 2 USB 3.2 Gen 1 ports, Connect multiple USB peripherals such as flash drives, printers and more devices simultaneously Includes 3.5mm jack for microphone input and stereo speakers/headphones Supports infrared remote control function Supports screen auto scan between each display Plug-n-play, no driver installation Multiple Connectivity Port Comes with four DisplayPort video input ports, four USB 3.2 Gen 1 Type-B ports (Host), twelve 3.5mm phone jacks to connect stereo speakers/earphone and microphone, one DisplayPort video output port, one HDMI video output port, two USB 3.2 Gen 1 Type-A, two USB 2.0 for keyboard & mouse connection, one 3.5mm Infrared jack to extend the IR signal, one IR sensor, two switch buttons, one power button, and one DC power jack (5V/3A) Applications Server hubs Educational facilities Office and business workspace Media editing Audio/Video presentation Control center Graphic designer Hotels and Resorts Retail stores Dealer rooms Hospitals and medical offices Reception desk Product TypeKVM SwitchboxProduct Name4x1 DisplayPort 4K KVM USB 3.0 Switch with Remote ControlManufacturerSIIG, IncManufacturer Part NumberCE-KV0D11-S1TitleProduct TitleSIIG 4x1 DisplayPort 4K KVM USB 3.0 Switch with Remote Control (CEKV0D11S1)Technical InformationNumber of Computers Supported4FeaturesPlug and PlayNumber of Local Users Supported1 Shipping
