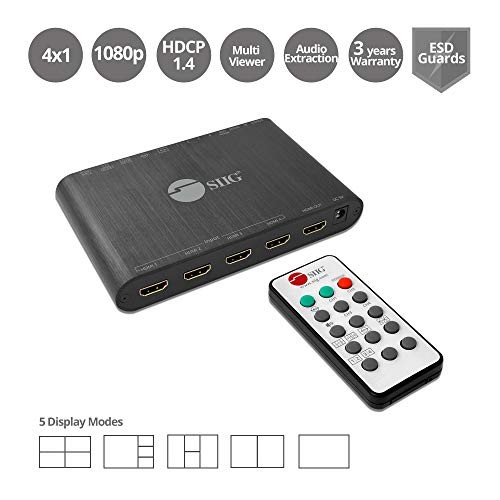

SIIG 4x1 HDMI Seamless Quad-Split Multi-Viewer Switcher SIIG 4x1 HDMI Seamless Quad-Split Multi-Viewer Switcher
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: 4x1 HDMI Seamless Quad-Split Multi-Viewer Switcher Power Adapter IR Remote Control User Manual
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.
o Allows 4 high definition source devices to display onto 1 HD display simultaneously
o 5 Display Modes: Single-View Mode, Dual-View Mode (left & right), Quad-View Mode, Quad-View Cycled Mode, Quad-View H mode
o Seamless source device and display mode switching via front panel push button or included IR remote control
o Compatible with most HDMI source devices such as desktop computers, laptops, notebooks, DVD/Blu-ray players, cameras, and set-top boxes
o Video resolutions up to 1080p@60Hz delivers crystal clear picture quality
o Control Options: 1) Push buttons, 2) IR remote, 3) software control via micro-USB
o Firmware upgradeable - add features, fix bugs; allows all hardware to work better together enhancing overall performance
o Metal housing provides excellent EMF protection and improves heat dissipation for reliability and long life
Compatible with HDMI 1.3 and HDCP 1.4
Input resolution:
480i /480p / 576i / 576p / 720p / 1080i / 1080p
Output resolution:
720p at 60Hz / 1080p at 60Hz
Video bandwidth:
6.75Gbps
Display modes:
Quad-View Mode, Quad-View Cycled Mode, Quad-View H mode: 4 HDMI sources displayed on 1 screen
Dual-View Mode: 2 HDMI sources displayed on 1 screen
One-View Mode: 1 HDMI source displayed on 1 screen
HDMI cable length:
Input: up to 10 meters
Output: up to 10 meters
Audio support:
Bypass Supports audio switch function
Supports audio extraction via stereo audio from selected HDMI input
Power consumption:
