SIIG Full HD HDMI Over IP Extender Kit CEH23A11S2
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

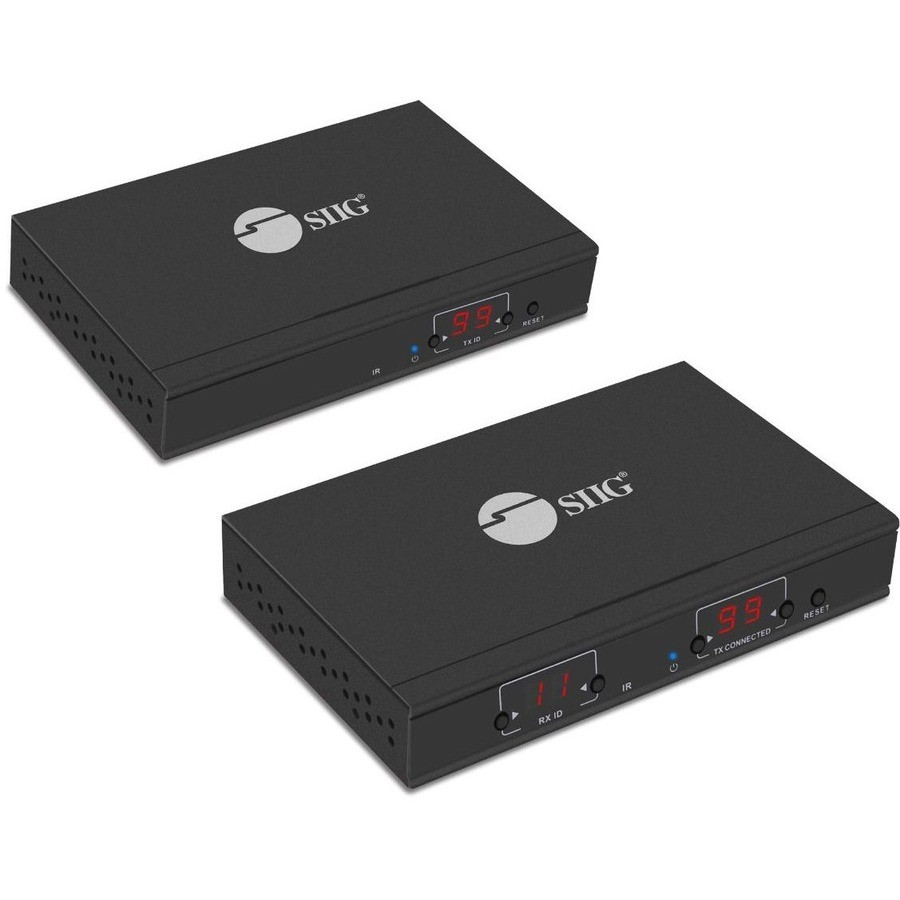

SIIG Full HD HDMI Over IP Extender Kit CEH23A11S2
Price: US $197.36
HDMI OVER IP EXTENDER WITH IR - KIT
  • About Us
  • Payment Info
  • Shipping Info
  • Customer Support
  • response
SIIG Full HD HDMI Over IP Extender Kit CEH23A11S2 Brand: SIIG UPC: 0662774045092 Mfr Part #: CEH23A11S2

General Information

Features

  • Extends HDMI signals with stereo audio to a remote display over UTP CAT5e/6 cabling up to 120 meters

  • Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional transmitter units (part# CE-H23B11-S2) and receiver units (part# CE-H23C11-S2) sold separately

  • Supports up to 1080p @60Hz video resolution to deliver stunning and crystal clear images

  • Supports IR pass back function to control the source device from RX location

  • Supports computer control software to select and switch between source devices (Matrix only)

  • Supports HDbit-T protocol with H.264 compression over IP

  • HDMI output on the transmitter allows you to monitor the HDMI signal at the source location

  • RS-232 pass-through connection to control RS-232 enabled devices at either direction

Technical InformationConnectivity Technology:WiredNumber of Input Devices Supported:1Number of Output Devices Supported:1Maximum Operating Distance:393.70 ft

Media & PerformanceMedia Type Supported:Twisted PairTwisted Pair Cable Standard:Category 6

Physical CharacteristicsProduct Color:BlackTransmitter Height:0.94"Transmitter Width:3.27"Transmitter Depth:5.50"Receiver Height:0.94"Receiver Width:3.27"Receiver Depth:5.50"Transmitter Weight (Approximate):9.60 ozReceiver Weight (Approximate):9.60 oz

  • HDMI Over IP Extender with IR - Kit
  • 2 x Power Adapters
  • IR Blaster Extension Cable and IR Receiver Extension Cable
  • 4 x Mounting Ears
  • 8 x Screw Kit
  • Remote Control
  • 2 x 3 Pin Phoenix Connectors
  • User Reference Guide
    • Application/Usage:Shopping FacilitiesCountry of Origin:ChinaEnvironmentally Friendly:YesEnvironmental Compliance:Restriction of Hazardous Substances (RoHS)
