GOIP SMB32 – 32-Port SIM Bank / SIM Server

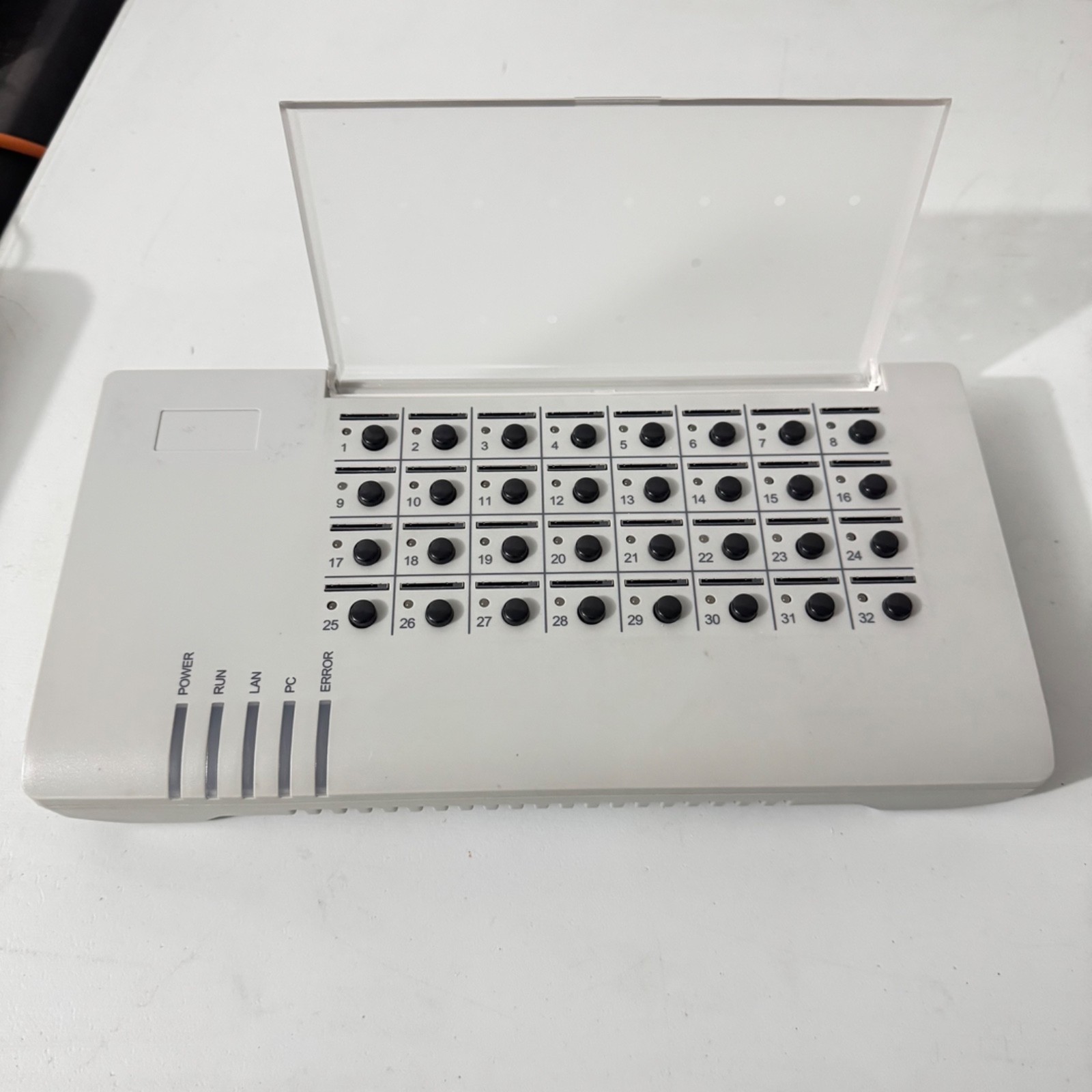

The SMB32 is a SIM bank that holds up to 32 SIM cards and makes them available over an IP network to compatible DBL GoIP GSM gateways operating without locally installed SIM cards. This allows all SIM cards to be kept in one secure, centrally managed location while the gateway hardware is installed elsewhere on the network.
Key features
- 32 individually numbered SIM card slots (1–32)
- Hot-swap support – a single card can be inserted or removed without interrupting the other slots
- SIM cards can be assigned to gateway channels manually or automatically on a configurable schedule
- Web-based configuration over the local network
- Two RJ-45 ports: LAN for the network connection, PC for a directly attached computer
- Recessed reset button for restoring factory settings
- Hinged transparent cover protecting the SIM card area
- Front status indicators: POWER, RUN, LAN, PC, ERROR
- Compact desktop enclosure, DC 12V power input
Specifications ManufacturerGOIP DBL ModelSMB32 SIM slots32 (standard mini-SIM / 2FF) Network interfaceRJ-45 Ethernet, LAN + PC Power inputDC 12V HousingDesktop, ABSTypical applications
Centralised SIM card storage and administration for licensed VoIP and GSM gateway operators, telecom integrators, laboratory and test environments, and M2M/IoT deployments where SIM cards and radio equipment are located in different places.
Important technical note
The SMB32 is passive SIM card management hardware. It contains no radio transmitter or receiver, does not connect to any mobile network by itself, and cannot place or receive calls or messages on its own. It communicates exclusively over a wired Ethernet connection. A compatible GoIP GSM gateway (not included) is required for operation.
No SIM cards, subscriptions or network services of any kind are included in this sale.
Shipping
Ships from EU. Dispatched within 3 business day of cleared payment, packed in a padded box with tracking.
