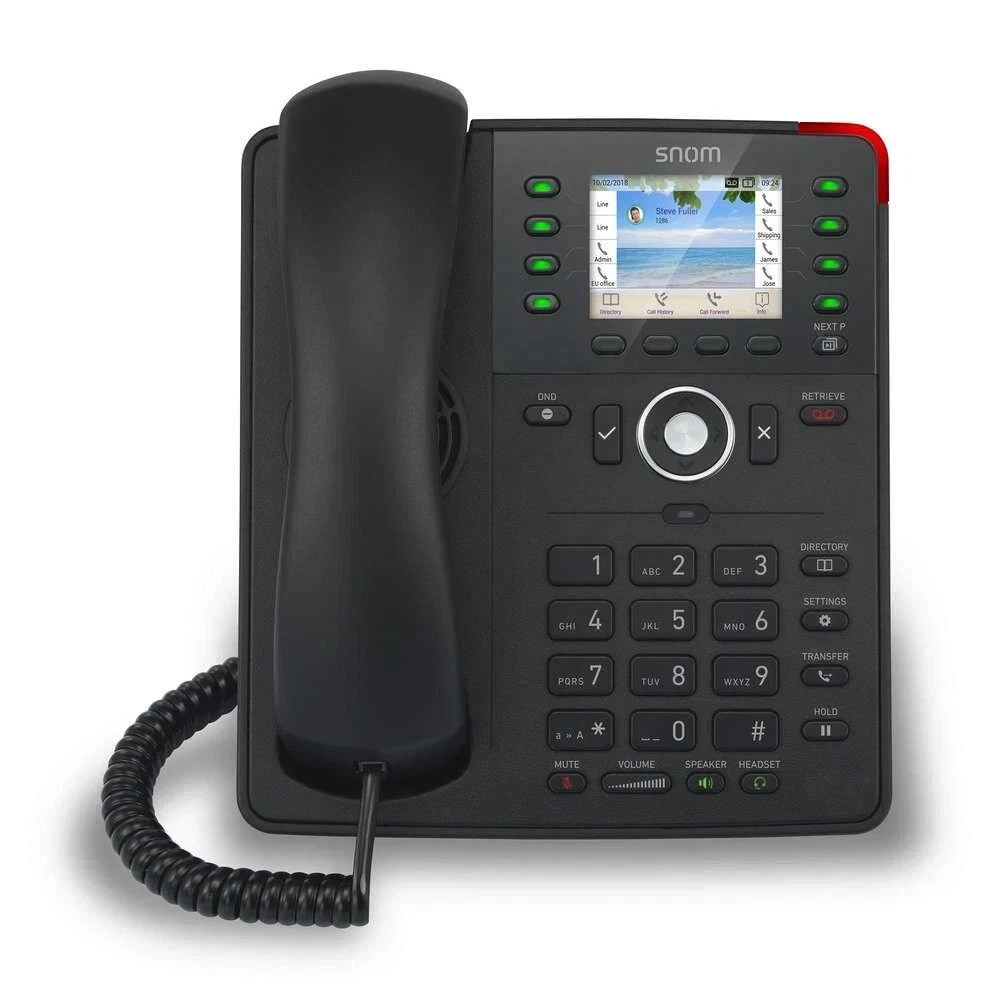

The SNOM D735 SIP Phone is a sleek black voice over IP phone featuring a 2.8" color LCD screen. This high-quality enterprise networking device by Snom is brand new in box. Designed in China, this model offers reliable and efficient communication for businesses looking to streamline their IP PBX systems with modern technology solutions.
*NEW IN BOX*
Phone Features

• 12 SIP identities / accounts
• XML browser
• Call lists for dialed, received, missed calls
• Local directory with 1000 entries
• Multiple language support
• DTMF in-band / out-of-band / SIP-INFO
• Interoperable with all major IP PBX platforms
• Speed dialing
• URL dialing
• Local dial plan
• Automatic redial on busy
• Call completion (busy/unreachable)(2)
• Caller identification
• Call waiting
• Call blocking (deny list)
• Auto answer
• Hold
• Music on hold(2)
• Blind and attended transfer
• Call forwarding
• 3-way conferencing on the phone
• Extension monitoring, call pickup(2)
• Call park, call unpark(2)
• Multicast paging
• DND mode (do not disturb)
• Keyboard lock
• Client matter code (CMC)(2)
• Unified Communications ready

Audio

• Codecs:
  • G.711 A-law, μ-law
  • G.722 (wideband)
  • G.726, G.729AB, GSM 6.10 (FR)
• Built-in assignable ringtones
• Comfort noise generator (CNG)
• Voice activity detection (VAD)

Setup

• Configurable through web interface
• Provisioning:
  • Automatic loading of settings via HTTP/HTTPS/TFTP
  • DHCP Options 66/67
  • Snom Redirection Service
  • Remote management via TR-069 / TR-111

Protocols

• SIP (RFC3261)
• DHCP, NTP
• HTTP / HTTPS / TFTP
• LDAP (Directory)
• Dual Stack IPv4 / IPv6

User Interface

• Localization (language, time, dial tone)
• Red LED for call indication / message waiting
• 4 context sensitive keys
• 32 (8 physical) programmable line / function keys with multicolour LEDs
• Dedicated keys for: Message, DND, directory, menu, transfer, hold, page
• Audio keys with LED indication: Mute, speakerphone, headset
• Volume key
• 5-way navigation key
• OK and cancel keys
• Sensor-assisted user interface

Security

• 802.1X Authentication and EAPOL
• Transport layer security (TLS)
• SRTP (RFC3711), SIPS, RTCP
• HTTPS server/client
• Password-protected web interface
• VPN support
• VLAN (IEEE 802.1Q)
• LLDP-MED, RTCP-XR

Specifications, Weights and Dimensions

• Dimensions (approx.):
  • 7.28" x 3.54" x 8.66"
  • With desk stand: "7.28" x 8.46" x 6.81"
• Weight (approx.): 1.8 lbs
• Input voltage: 5V DC (SELV)
• Power supply: PoE or 5Vdc power adapter(1), 10 Watts
• Handset: 4P4C
• Headset: 4P4C; Support for Snom EHS Advanced(1)
• Hearing aid compatible (HAC) handset
• 1 x USB 2.0 host port, Type A
• Environmental conditions:
  • Ambient temperature: 0°C to 35°C (32°F to 95°F)
  • Storage temperature: -10°C to 45°C (14°F to 113°F)
  • Humidity: 5% to 95% (non-condensing)
• Included in delivery:
  • Phone unit
  • Foot stand
  • Handset with cord
  • Ethernet cable
  • Quick Start Guide
• Color: Black
• Warranty: 3 years
• Part Number: 00004389 (all markets)
• APN: 80-S052-00

(1) Optional accessory
(2) If supported by PBXAPN numbers for optional accessories80-S049-00 D7 Expansion Module (black)
80-S103-00 D7C Expansion Module (black)
26-350200-3UL Power Adapter Snom A6 /US clip
89-S015-00 Snom EHS Advanced
00-S013-00 Wallmount plate for 7-series
89-S020-00 A100D Binaural headset
89-S019-00 A100M Mono headset
89-S035-00 A210 Wi-Fi USB Dongle
80-S050-00 A230 DECT USB Dongle
