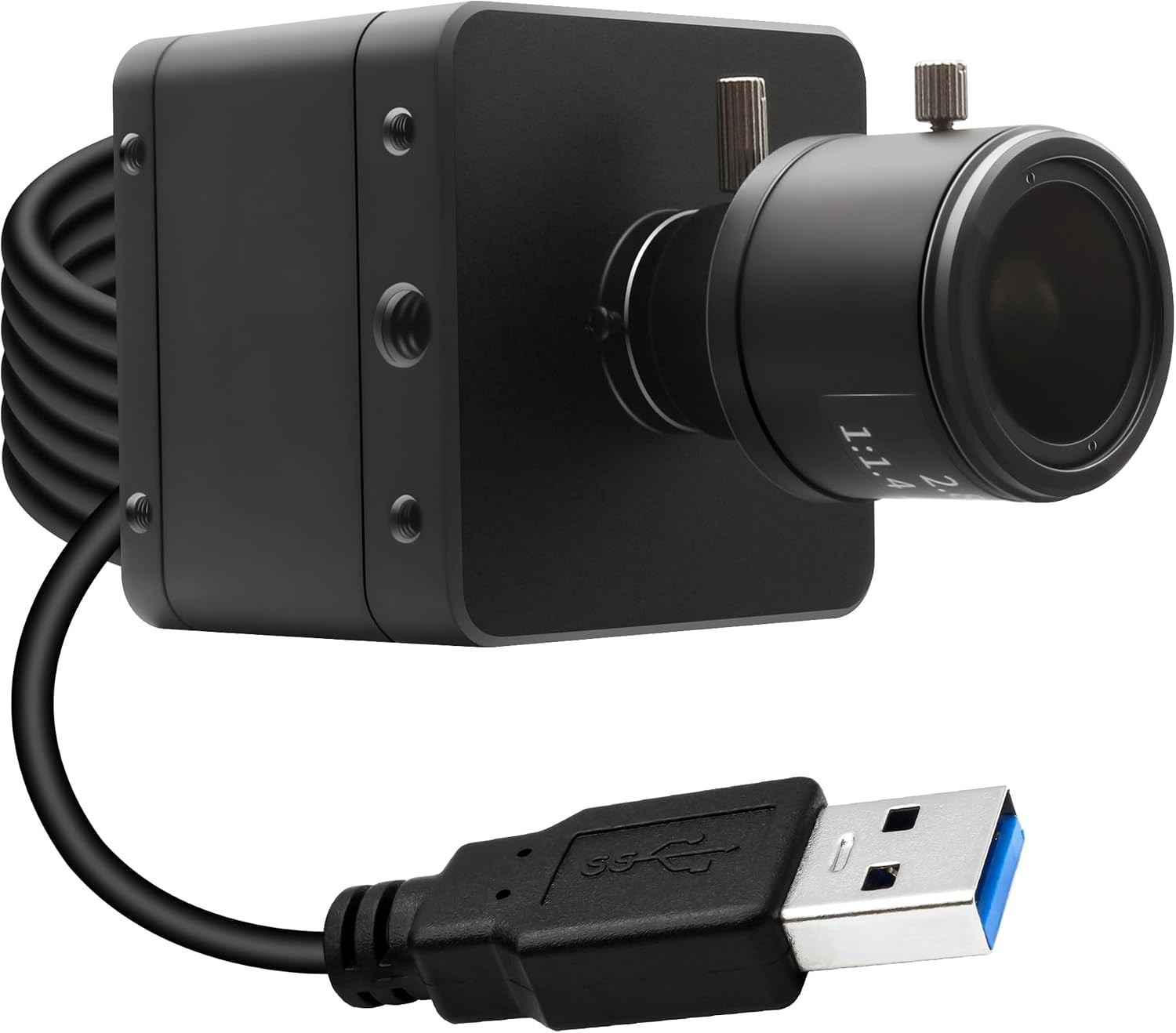

SVPro 5MP USB 3.0 Global Shutter Machine Vision Camera

The SVPro 5MP Global Shutter USB 3.0 Camera is designed for industrial automation, machine vision, robotics, motion analysis, and scientific imaging. Featuring a high-speed global shutter sensor, USB 3.0 connectivity, and a precision manual zoom lens, it captures fast-moving subjects with exceptional clarity and minimal latency.

Key Features

• 5MP Global Shutter Sensor

  • Equipped with a 1/2.5" OG05B10 global shutter sensor

  • Eliminates rolling shutter distortion and motion blur

  • Produces sharp images of fast-moving objects

  • Ideal for industrial inspection, robotics, automation, and motion tracking

• High Resolution & High Frame Rates

  • Up to 2592 × 1944 (5MP) resolution

  • Supports up to 60 FPS depending on resolution and video format

  • MJPEG and YUY2 output formats supported

  • Optimized for high-speed machine vision, motion analysis, AI, and industrial imaging

USB 3.0 Frame Rate PerformanceResolutionMJPEGYUY22592 × 1944 (5MP)60 FPS35 FPS2560 × 1440 (2K)60 FPS35 FPS2048 × 153660 FPS50 FPS1920 × 1080 (Full HD)60 FPS60 FPS1600 × 120060 FPS60 FPS1280 × 96060 FPS60 FPS1280 × 720 (HD)60 FPS60 FPS640 × 48060 FPS60 FPS512 × 51260 FPS60 FPSUSB 2.0 Frame Rate PerformanceResolutionMJPEGYUY22592 × 1944 to 1280 × 72060 FPS1 FPS640 × 48060 FPS30 FPS512 × 51260 FPS10 FPS

Note: For full YUY2 performance and maximum frame rates, USB 3.0 is strongly recommended. While the camera is backward compatible with USB 2.0, YUY2 frame rates are significantly reduced due to bandwidth limitations.

Precision 2.8–12mm Manual Zoom Lens

• Adjustable M12 lens with approximately 4X optical zoom

• Field of view adjustable from approximately 60°–115°

• Easily adapts to different working distances and inspection applications

USB 3.0 UVC Plug & Play

• High-bandwidth USB 3.0 interface for low-latency image transmission

• Backward compatible with USB 2.0

• UVC compliant—no additional drivers required

• Compatible Pi

• NVIDIA Jetson Nano

Industrial Metal Housing

• Durable all-metal enclosure for excellent heat dissipation

• Includes a 2-meter USB 3.0 cable

• Standard 1/4"-20 mounting threads on three sides for flexible installation

• Designed for continuous industrial and laboratory use

Ideal Applications

• Machine Vision

• Industrial Analysis

• AI & Computer Vision

• Quality Inspection

• Barcode & OCR Recognition

• Scientific Imaging

• Laboratory Equipment

• Raspberry Pi & Jetson Nano Projects

• DIY Embedded Vision Systems

Package Includes

• SVPro 5MP USB 3.0 Global Shutter Camera

• 2.8–12mm Manual Zoom M12 Lens

• 2m USB 3.0 Cable

The SVPro 5MP Global Shutter Camera delivers high-speed imaging, low-latency USB 3.0 performance, flexible manual zoom, and broad operating system compatibility, making it an excellent choice for demanding machine vision, automation, and industrial imaging (1/2.5”) Global ShutterMax Resolution2592 (H) *1944 (V)Dynamic Range70 dBMin Illumination0.1LuxInterface & ConnectorUSB3.0 20-Pin ConnectorLens2.8-12mm Manual Zoom LensLens MountM122592x1944MJPEG 60fps/ YUY2 35fps2560x1440MJPEG 60fps/ YUY2 35fps2048x1536MJPEG 60fps/ YUY2 50fps1600x1200MJPEG 60fps/ YUY2 60fps1920x1080MJPEG 60fps/ YUY2 60fps1280x960MJPEG 60fps/ YUY2 60fps1280x720MJPEG 60fps/ YUY2 60fps640x480MJPEG 60fps/ YUY2 60fps512x512MJPEG 60fps/ YUY2 60fps
