Single Drive • Multiple Available Samsung PM1643 3.84TB SAS 12Gb/s 2.5" Enterprise SSD – IBM 02YC039 (MZILT3T8HALS)
Enterprise-class, dual-port SAS solid state drive from Samsung’s PM1643 data center line. IBM OEM, 512-byte sector format, securely Purged with EPS Xerase and ready to drop into your server.
✔ Professionally Tested & Wiped – Excellent Operating Condition Overview

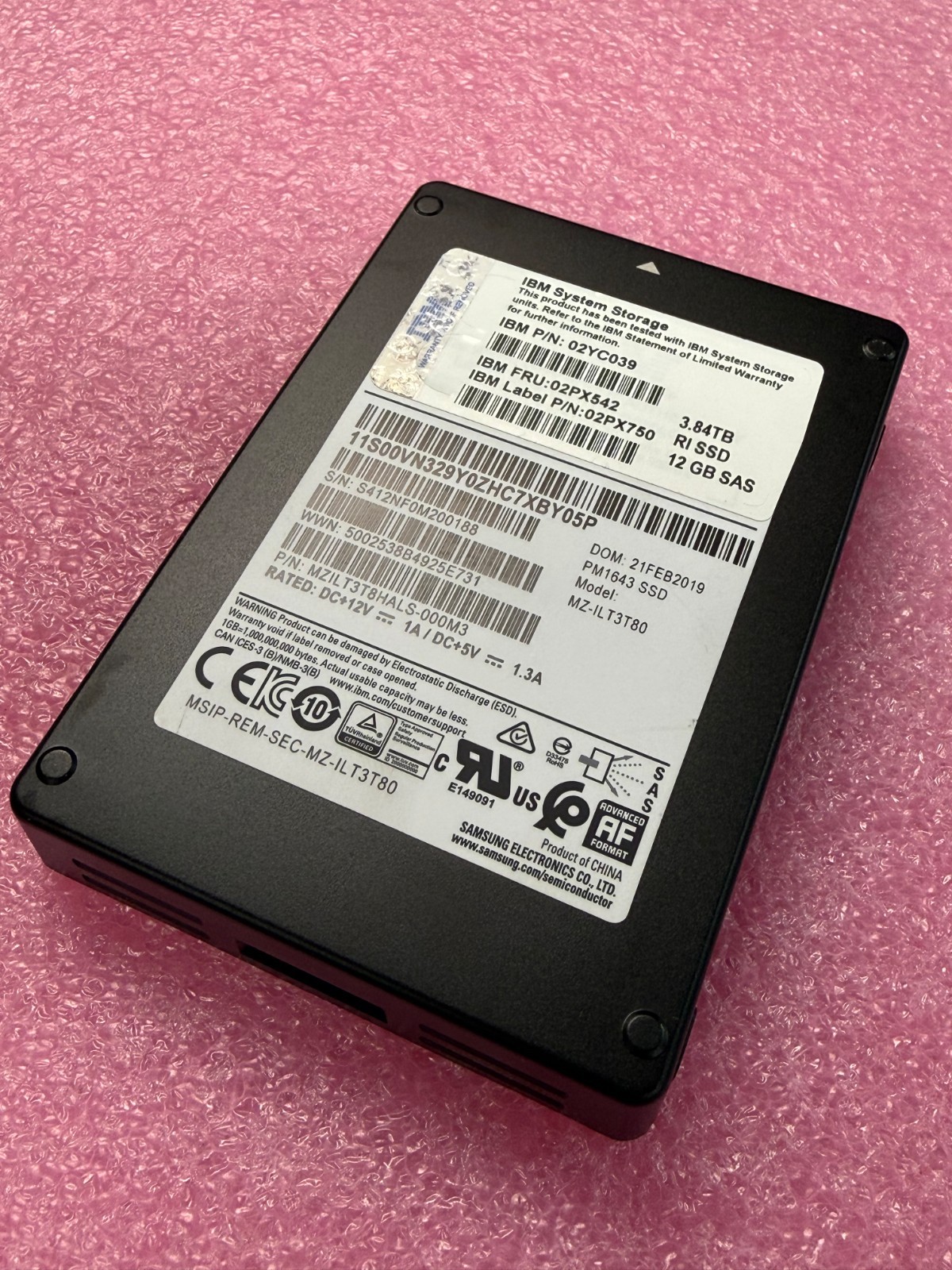

You are purchasing one (1) Samsung PM1643 3.84TB 2.5" SAS 12Gb/s solid state drive, IBM OEM part number 02YC039 (Samsung model MZILT3T8HALS / MZ-ILT3T80). Multiple identical drives are available – adjust the quantity to buy more.
The PM1643 is one of Samsung’s flagship enterprise SAS SSDs, built for demanding data center workloads: virtualization, databases, VDI, caching tiers and all-flash arrays. These drives are seriously fast and are a big step up from spinning SAS disks and older SAS SSDs. Each drive is formatted to standard 512-byte sectors, so there is no reformatting needed before use with a standard SAS HBA or RAID controller.
Every drive was SMART tested, health graded and sanitized to NIST 800-88 Rev. 2 Purge using EPS Xerase at our R2v3 certified facility.
3.84TBCapacity SAS 12Gb/sInterface 512nSector Format Grade AHealth Grade Detailed Specifications BrandSamsung (IBM OEM) Product LinePM1643 Enterprise SSD Samsung ModelMZILT3T8HALS / MZ-ILT3T80 IBM Part Number02YC039 Capacity3.84TB InterfaceSAS 12Gb/s, Dual-Port Form Factor2.5" (15mm height) Sector Format512 bytes (512n) NAND TypeSamsung V-NAND TLC Endurance Class1 DWPD (Read-Intensive) Drive TypeSolid State (no moving parts) Manufacture Year2019 ConditionUsed – Excellent IncludedBare drive only (no tray) Drive Health & Test Results
The figures below are from the erasure and diagnostic reports for drives in this batch. All drives come from the same deployment and were tested and graded the same way. Your drive will be very close to these values; minor variation between individual drives is normal.
Drive Health80.2% Health GradeGrade A Power-On HoursApprox. 61,820 hrs Reallocated / Grown Defects0 Erasure StatusPASSED Sanitization LevelNIST 800-88 Rev. 2 Purge About the Power-On Hours
Roughly 61,800 power-on hours is about seven years of continuous 24/7 data center service. That is exactly what these drives are built for. After that service the drives still report 80% health, zero grown defects and a Grade A rating – strong evidence of a stable, well-cooled server deployment and plenty of remaining usable life for your workloads.
SAS Drive Health Readings
SAS drives report health through enterprise log pages rather than the ATA SMART attributes used by consumer SATA drives. Consumer utilities such as Hard Disk Sentinel or CrystalDiskInfo often show missing or inconsistent health data for SAS drives. The health values in this listing come from the erasure software’s native SAS reporting. After purchase, use an enterprise-grade tool (your RAID controller utility, smartctl, or manufacturer diagnostics) to read drive health.
Compatibility & Disclosures SAS Interface – Servers Only
This drive uses an SAS interface and is compatible with servers only—not standard desktop computers. It requires a SAS controller (HBA or RAID card) or a SAS-capable backplane. It will not work on a standard SATA port or in a typical desktop or laptop.
15mm Height & Bare Drive
The PM1643 is a 15mm-tall 2.5" drive. Confirm your server bay or caddy accepts 15mm drives (most 2.5" server bays do; 7mm/9.5mm laptop-style bays do not). This is a bare drive – no tray, caddy, screws or cables are included.
IBM OEM Drive
This is an IBM-branded OEM version of the Samsung PM1643, formatted to standard 512-byte sectors for use with standard SAS HBAs and RAID controllers. Some storage arrays and proprietary systems require specific vendor firmware or drive qualification. Please verify compatibility with your exact system before purchasing.
Testing & Condition Erasure Verified – PASSED
Every drive was sanitized with EPS Xerase using NIST 800-88 Rev. 2 Purge methods (drive-level sanitize command followed by a full media overwrite and verification), and each drive’s erasure log shows a PASSED status. No customer data remains on the drive.
Reminder: SAS Drive – Server Use Only
This drive uses an SAS interface and is compatible with servers only—not standard desktop computers.
R2v3 Certified Facility – Condition Codes
F4-Hardware Functional C6-Used Excellent
Processed at an R2v3 and RIOS certified ITAD and electronics recycling facility. Each drive was individually SMART tested, health graded and functionally verified before being approved for resale.
Used, pulled from a working enterprise environment. Professionally tested, Grade A health, zero grown defects and in excellent operating condition. May show light cosmetic wear such as minor scuffs or labels from prior use.
What’s Included
One (1) Samsung PM1643 3.84TB SAS SSD, IBM 02YC039 – bare drive only. No tray or caddy, no screws, no cables, no software and no original packaging. Drive is securely packed in anti-static protection for shipping.
Important Information
Disclaimer: Items are used government/corporate surplus with possible cosmetic flaws (discoloration, scuffs, markings). No guarantee on longevity. While thoroughly tested, undiscovered defects may exist. No partial refunds.
Payment: Due within 4 days or order may be canceled. Contact us for payment issues.
Shipping: FedEx/UPS/USPS with insurance included. Items $500+ require signature. Ships to lower 48 US only (no PO boxes) within 1-2 business days. Tracking provided via email.
Returns: Must return in original packaging/condition. Lots must be returned whole. Local pickup buyers arrange own returns. No partial refunds - full return required for issues.
Contact: messaging only. Business hours: Mon-Fri 8AM-3:30PM ET.
