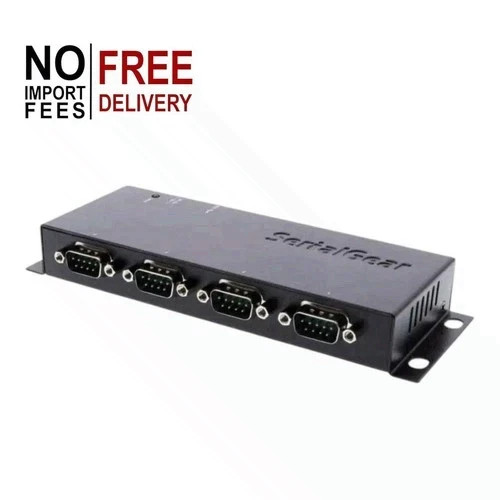

USB BAY Docking USBG-BAY4 Serial Adapter Box
RS232 Port X 4 feature a rugged metal enclosure!
Industrial USB to Serial Converter
NEW MODEL DOES NOT REQUIRE AC ADAPTERFour Port Serial RS-232 DB-9 Box USB Converter6ft. USB A to B Detachable cable (can be extended up to 15ft)Driver CDEasy Instructions BookletUSBG-BAY4 Item uses FTDI chip 232RL 4S RS232 to USB Adapter w/ Metal Case
All New SerialGear(TM)
Provides 4 RS232 Serial Ports over USB PortProvides 4 DB-9 ConnectorsBaud Rate from 75 bps to 921.6Kbps512-Byte Deep FIFOs for each PortSupports 5,6,7,8 Data BitsOdd, Even, Mark, Space, or None parity modeSupports 1, 1.5 and 2 Stop BitsSupports USB Bus PowerDC Jack for Optional DC 5V Power Input
INTRODUCTION:
The USBG-BAY4 is a 4 port DB9 RS232 to USB serial adapter that is designed for PC, thin client, or server to provide instant COM port expansion via the Universal Serial Bus (USB).
The USBG-BAY4 provides the scalability to quickly adapt to new USB technologies.
Multiple modules can be added to a single USB interface allowing you to add RS232 connectivity as needed. Complete product line offer many choices help you to expand and make your network grow with your requirements.
With the USB Plug-and-Play feature, simply plug in, follow the instructions of Install Wizard, then you are done.
You dont have to deal with Card Slots, I/O address, IRQ jumpers, DMA and others when you are connecting the devices. The System will recognize the device and install the drivers automatically.
The USBG-BAY4 is an ideal solution for your expanding applications.
SPECIFICATIONS:
USB Port Fully compatible with USB 1.0 and USB 1.1; Forward compatible with USB 2.0Serial Port Supports 4 DB9-Male UART Serial portsData Rate from 75 bps to 921.6Kbps512-Byte Deep FIFOs for each PortSupports 5,6,7,8 Data BitsSupports 3-wire RS232 Signals (TXD, RXD, GND)Odd, Even, Mark, Space, or None parity modeSupports 1, 1.5 and 2 Stop BitsRigid Metal Case for Critical Applications
Power Requirements:
Normally Power solely from USB Bus, no external power supply needed.+5V DC Jack Input for supports Power over DB9-Male applications.Form Factor 6.83(L) x 3.83(W) x 0.96 (H) (17.35 x 9.72 x 2.43 cm)
