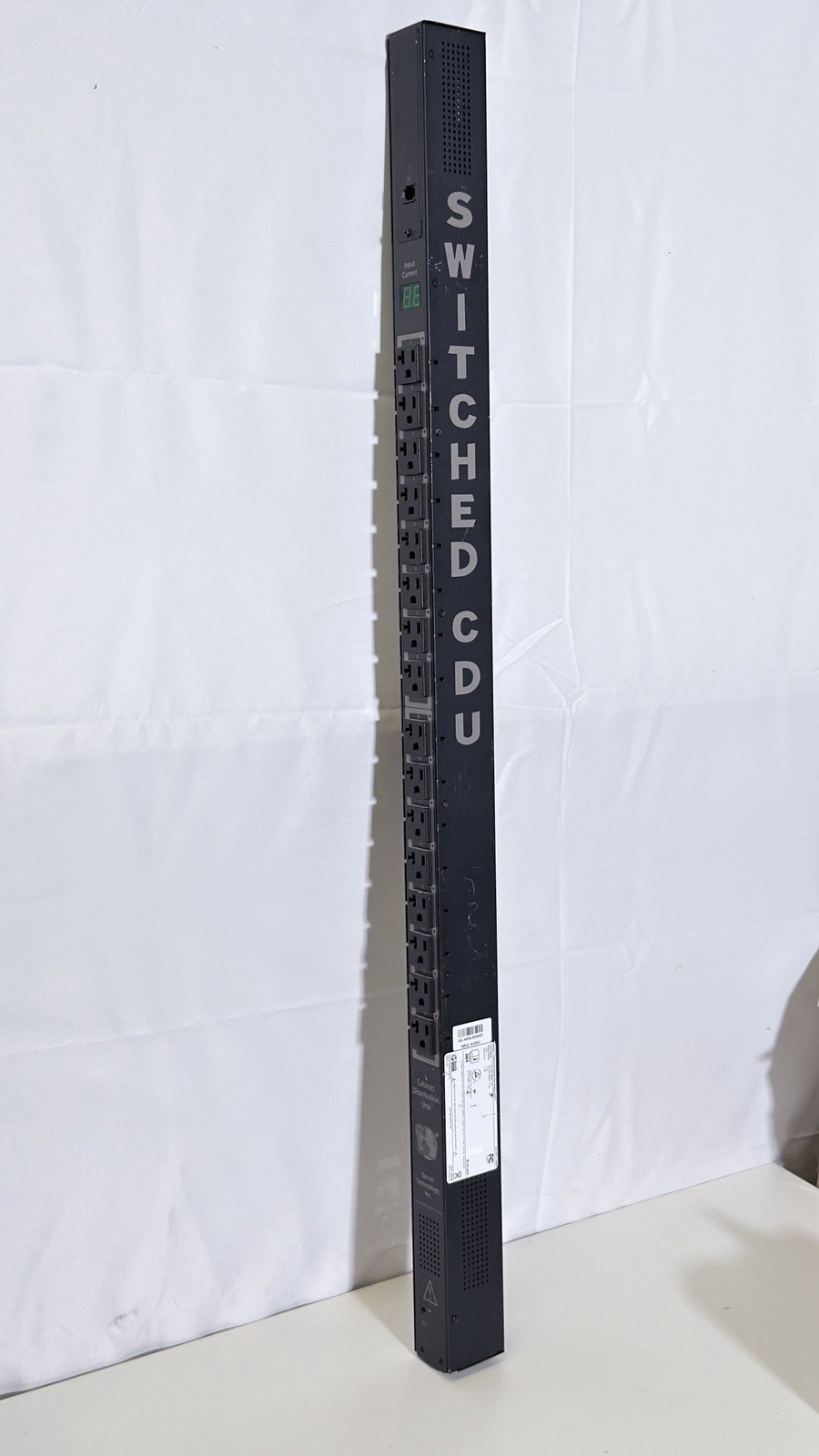

This is for one used Server Technology CW-16V1-C20MX Switched PDU 120V 16-NEMA 5-20R-Outlets L5-20P. This is a full-featured Server Tech PDU with remote monitoring and remote switching capabilities.

• Includes one Server Technology CW-16V1-C20M Switched PDU 120V 16-NEMA 5-20R-Outlets L5-20P as pictured above. Also includes one C19 to L5-20P power cable and a mounting bracket. No other parts or accessories are included.
• This pdu is in good working and in good cosmetic condition. Cosmetic defects include light scratches and scuff marks.

Technical Specifications

• Input Plug Type: NEMA L5-20P
• Input Current (A): 20
• Input Nominal Voltage (V): 100V – 120V
• Input Phase: 1-Phase
• Outlets: (16) NEMA 5-20R

Features

• Outlet Control: Individual outlet remote on/off switching. Cycle power to individual outlets or groups of outlets to reboot servers. Or, power off unused receptacles.
• Network Monitoring: Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
• PIPS (Per Input Power Sensing): Accurately measures Active Power, Apparent Power, Energy k-Wh, Power Capacity, and Power Capacity Used using the network interface. See the aggregate current draw, in Amps, locally using the onboard LED.
• Branch Circuit Protection: This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses.

Product Information

Manufacturer: Server Technology
MPN: CW-16V1-C20MX
Shipping Weight: 15 lbs.
Shipping Dimensions: 50 x 6 x 6 Inches
