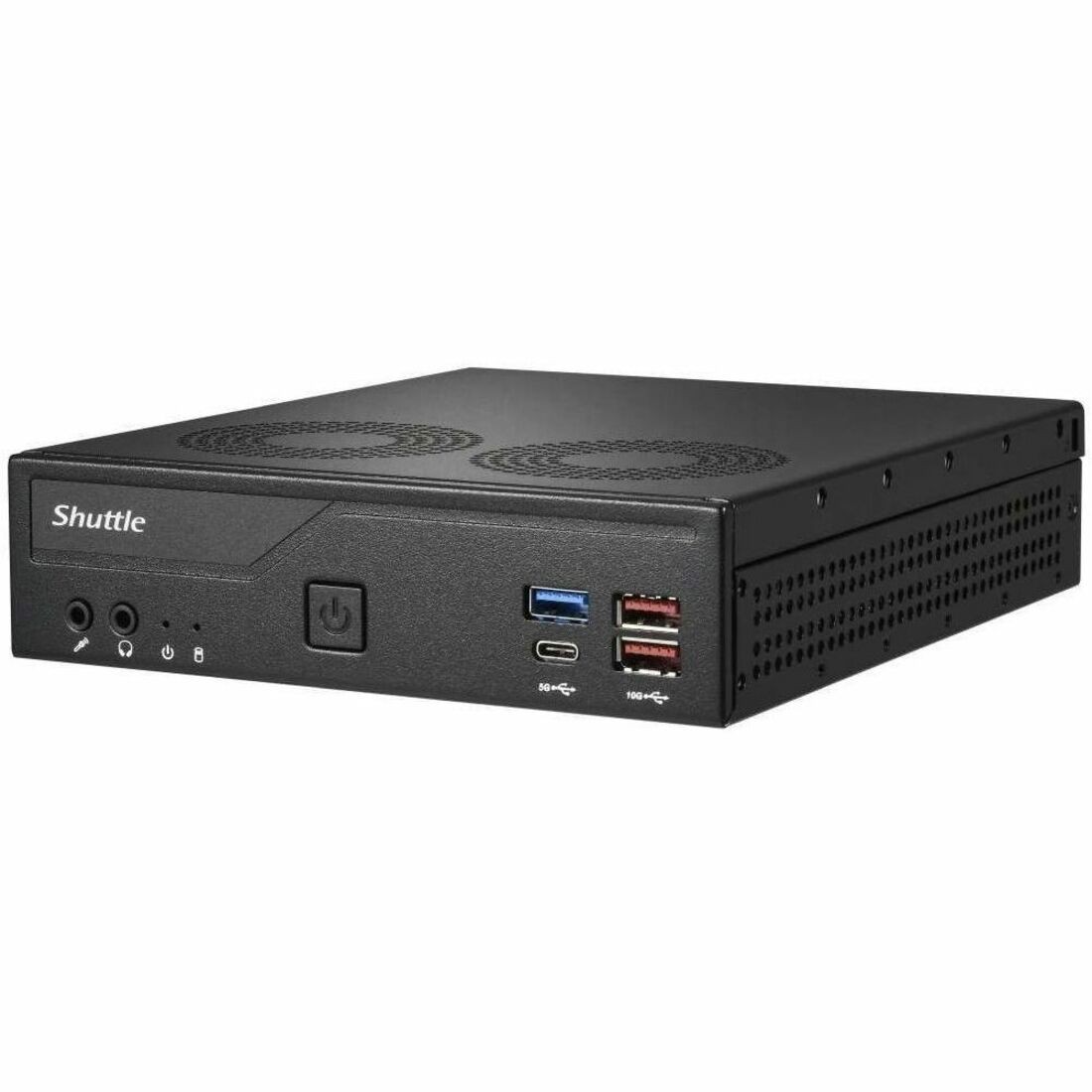

Shuttle Computer 294499 XPC Slim Barebone Desktop System Shuttle Computer 294499 XPC Slim Barebone Desktop System
International Customers: All electronic products are packaged for sale in the US with US voltage.
Energy Star: Yes
Product Description
This item is brand-new, factory sealed.
Embracing Modern Versatility | Your Gateway to Comprehensive Computing Power
The Shuttle XPC Slim DH770 is a 1.3-liter Barebone Mini-PC featuring the H770 chipset, designed to support Intel 12th, 13th, and 14th generation LGA1700 processors with a maximum TDP of up to 65W.
Thanks to Intel UHD graphics and dual DDR5-5600 support, the DH770 delivers enhanced graphics performance, faster memory access, and robust multitasking capabilities. It excels in AIoT Edge tasks, crystal-clear video streaming, and various demanding applications. Its compact design houses a wide array of I/O interfaces, including HDMI 2.0, DisplayPort 1.4, USB 3.2, COM (RS232/422/485), SATA 3.0, M.2 SSD, dual 2.5G LAN, and WLAN expansion. Whether utilized for a 4-display TV wall, interactive digital signage, NVR stations, or automation control, the DH770 offers exceptional versatility and reliability across various industries.
Supports the Latest Intel 14th Gen Processor
Harness the power of the latest 10nm architecture and H770 chipset with the DH770, supporting Intel Raptor Lake Refresh (14th Gen) Processors. Its performance hybrid architecture extends core technology, integrates Intel graphic technology, enhances core efficiency, and delivers intelligent workload optimization while enabling the next-generation immersive visual and creative experience.
Upgrade to 14th Gen Intel CPU Now!
? Up to 24 cores: 8 performance cores and 16 efficient cores
? Supports Intel Thread Director for optimal multitasking
? Maximized 32 threads and peak clock speed up to 5.8GHz via 120W power
? Advanced connectivity options like Wi-Fi 7FORM FACTOR
1.3L chassisPROCESSOR
Support Intel 12th/13th/14th Generation Core i3/i5/i7/i9, Pentium, Celeron LGA1700 CPU max. TDP 65WCHIPSET
Intel H770 Express chipsetMEMORY
2 x DDR5 SODIMM slots,32GB per DIMM (Max 64GB)
DDR5 5600 MHzVIDEO OUTPUT
HDMI 2.0 x 2+ DisplayPort x 2, Quad video outputs
4K playback (Dual channel memory recommended)
Integrated in CPUAUDIO
Realtek ALC 888S High Definition AudioETHERNET
(2)Intel 2.5GbE LAN
Supports 10/100/1000 Mb/Sec.
Support wake ON LAN (WOL) featureSTORAGE INTERFACE
SATA 6.0Gb/s interface
NVMe interface
Support SATA RAID 0,1ONBOARD CONNECTORS
(1) 4pin fan connector
(1) VGA(For PVG01 use)
(1) 1x4 pin USB header(For WWN03 use)
(1) SATA connector w/power
(1) Front audio header
(1) Auto power on header
(1) RS232 voltage switchFRONT PANEL
(2) USB 3.2 Gen1 ports
(Include Type C x1)
(2) USB 3.2 Gen2 ports
(1) Microphone-In
(1) Line-Out
(1) Power-On button
(1) Power LED
(1) HDD LEDBACK PANEL
(2) RJ45 LAN port w/LED
(2) HDMI port
(2) Display port
(2) USB 3.2 Gen1 ports
(2) USB 3.2 Gen2 ports
(1) RS232
(1) RS232/RS422/RS485
(1) External 4pin header
(1) DC-in
(2) Wireless Antenna fixture
(1) Kensington lockDRIVE BAYS
(1) 2.5" HDD / SSD bayPOWER
120W Power Adapter
Input:100- 240V AC
19V 6.32AACCESSORIES
XPC Multilanguage Quick User Guide
XPC DVD Driver
VESA mount
VESA Screw pack
Power cord
Thermal Grease
HDD Screw pack
120W adapterEXPANSION SLOT
(1) M.2 2280 Type M key socket
(1) M.2 2230 Type E key socketOS SUPPORT
Windows 11 64 bit O.S
LinuxREMARK
RS232 ports support 0/5/12V output. Voltage setting please refer to Quick Guide.OPERATING TEMPERATURE
0oC-50oCItem Dimension (L"xW"xH")
11 x 6 x 11
Weight
7 lbs
Warranty Information
3 years SpecificationControllersController Type
Power DescriptionThermal Design Power65 WMaximum Power Supply Wattage120 WFrequency
Input Voltage
ProcessorProcessor Supported
- Core i5
- Core i7
- Core i9
- Pentium Gold
Processor SocketSocket LGA-170064-bit ProcessingYesChipsetChipset ManufacturerIntelChipset ModelH770Physical CharacteristicsForm FactorSlim PCWeight (Approximate)2.87 lbProduct ColorBlackHeight1.7"Color ExpansionsNumber of 2.5" Bays1Number of M.2 Interfaces2Number of Total Expansion Bays1MemoryMemory TechnologyDDR5 SDRAMMaximum Memory Supported64 GBTotal Number of Memory Slots2Memory StandardDDR5-5600/PC5-44800Display & GraphicsGraphics Memory AccessibilitySharedGraphics Memory TechnologyDDR5 SDRAMGeneral InformationBrand NameShuttleMarketing Information ROBUST 1.3-LITRE SLIM PC SUPPORTS INTEL CORE PROCESSORS WITH SOCKET LGA1700 AND FOUR UHD DISPLAYS The Shuttle XPC slim Barebone DH770 with H770 chipset houses the performance of Intel's 12th/13th/14th generation Core desktop processors (codenamed Alder Lake-S and Raptor Lake-S [Refresh]) for socket LGA1700 in a compact 1.3-litre format. The DH770 allows for four Ultra HD displays to be operated at the same time via 2x HDMI and 2x DisplayPort. It also offers Dual Intel 2.5G LAN, four USB 3.2 Gen 2 and COM ports. The slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 °C. This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry. Product TypeBarebone SystemProduct NameXPC slim DH770 Barebone SystemManufacturerShuttle, IncManufacturer Part NumberDH770Product ModelDH770Product LineXPC slimTitleProduct TitleShuttle XPC slim DH770 Barebone System - Slim PC - Socket LGA-1700StorageSupported Storage Drive Interfaces
- Serial ATA III
- PCI Express 4.0 x4
Supported Storage Drive Types
- Windows 11 x64
- Linux
- Windows 10 x64
