SHUTTLE COMPUTERS Complete System Includes the following:
- Intel Pentium 7505
- 8GB RAM
- 128GB SSD
- Preinstalled Wi-Fi
- Windows 11 PRO
DH32UE Back I/O Ports:
- Audio: Mic & Headphone
- Power Button
- SD Card Reader
- USB 3.2
- Power Input
- HDMI Input
- Ethernet Port
- COM Port
- USB 3.0
- External Power On
Speed Up Your Workflow | Powerful 4K Quad Display Support

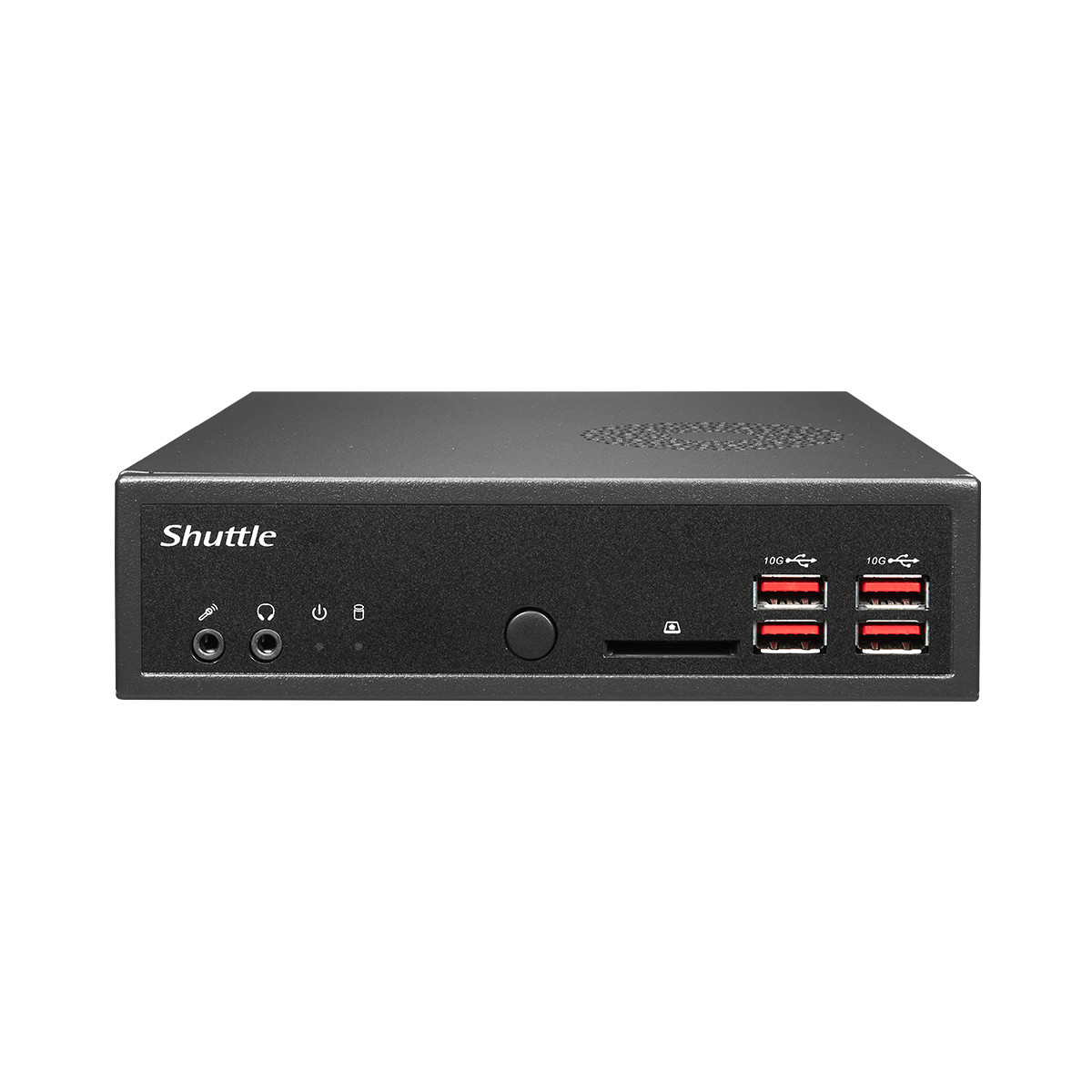

The Shuttle DH32UE is a compact powerhouse built on Intel’s 11th Gen Tiger Lake-U platform. Despite its small footprint, it delivers impressive computing power, seamless multitasking & rich connectivity, perfect for demanding vertical applications.
Powered by Intel Core processors with integrated UHD graphics & support for high-speed DDR4-3200 memory, the DH32UE offers fast data throughput, enhanced graphics performance & improved power efficiency.This model supports up to four independent 4K displays at 60Hz via its 4 native HDMI outputs, ideal for control rooms, video conferencing setups & multi-screen digital signage.
Key Features:
Powered by Intel 11th Gen Tiger Lake-U CPU Supports up to 4 Independent 4k Displays (4x HDMI) Integrated Intel UHD Graphics Supports DDR4-3200 High speed memory Ultra-compact form factor, space saving design Rich connectivity: USB, Lan, SD card, COM ports Perfect for control rooms, signage, conferencing & multitasking. Processor Intel Tiger Lake-U Pentium 7505 15W CPU
Optional: i3-1115G4, i5-1135G7, i7-1165G7Memory 2 x DDR4 SODIMM (Max 64GB)
Dual Channel, DDR4-3200 MHzVideo Graphics Intel UHD / Xe Graphics
Celeron/Pentium/i3: 48 EUs | i5: 80 EUs | i7: 96 EUsVideo Output 4 x HDMI 2.0b
Supports 4K @ 60Hz on 4 independent displays
EDID Emulation (DH32UE only)Audio Realtek ALC662/897/888S
2-channel High Definition AudioEthernet 2 x Intel i211 (10/100/1000 Mbps)
Supports Wake-on-LANStorage Interface 1 x SATA 6.0 Gb/s
1 x 2.5" HDD/SSD BayExpansion Slots 1 x M.2 2280 (M-Key)
1 x M.2 2230 (E-Key)Onboard Connectors (1) SATA power, (2) 4-pin fan connectors
(1) Auto Power-On header, (1) VGA, (1) RS232, (1) RS232/422/485
(1) External 4-pin header (Power/Clear CMOS/5V/GND)Front Panel (4) USB 3.2 Gen2
(1) Mic-In, (1) Earphone-Out
(1) Power Button, (1) Power LED, (1) HDD LED
(1) SD Card ReaderBack Panel (4) HDMI Ports, (4) USB 3.2 Gen1
(2) RJ45 LAN, (2) COM Ports
(1) External Power/Clear CMOS Header
(2) Wireless Antenna Mounts, (1) DC-In, (1) Kensington LockPower 90W Power Adapter
Input: 100–240V AC, Output: 19V 4.7A DCDimensions 190mm (L) x 165mm (W) x 43mm (H)Operating Temperature 0°C to 50°COS Support Windows 10 64-bit, LinuxWindows 11Accessories VESA Mount, Power Cord, Screws
Quick User Guide, Driver DVD
24/7 IT Support - 1 Year Warranty - Certified Refurbished
