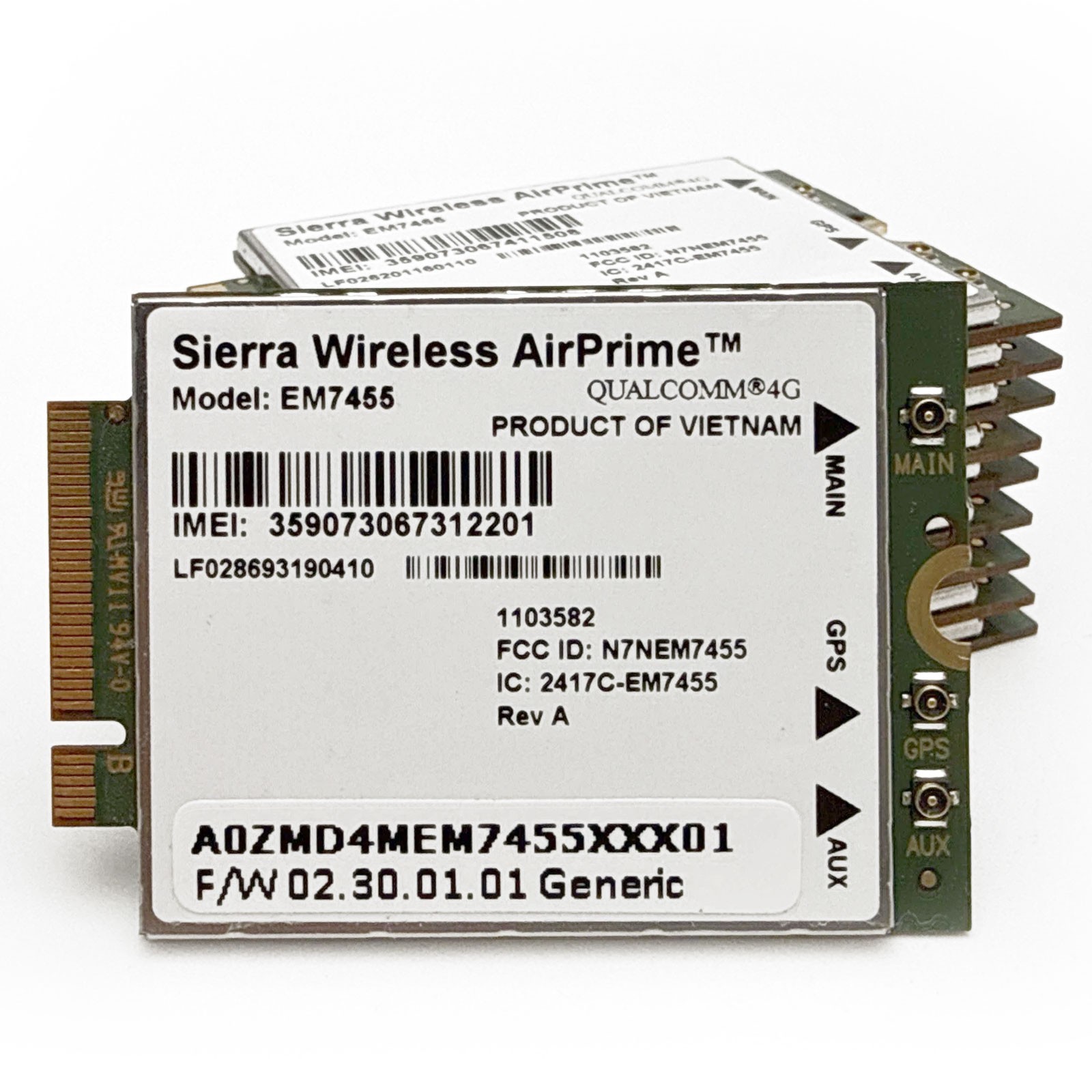

Sierra Wireless, EM7455 M.2The Sierra Wireless EM7455 Embedded Module is an LTE Cat 6 M.2 module that provides LTE, UMTS, and GNSS connectivity for notebook, ultrabook, tablet computers, and M2M applications over 15 different LTE radio frequency bands globally with primary target area Americas and EMEA. The EM7455 will allow a maximum downlink speed of 300 Mbps and a maximum uplink speed of 50 Mbps, including LTE Advanced, with automatic fall back to 3G networks.

Brand

Semtech (Sierra Wireless)

Form Factor

M.2 3042

Primary Technology

LTE - cat 6

Chipset

QualcommMDM9230

GNSS Technology

GPS

GLONASS

BeiDou

LTE Bands

B1 (FDD 2100), B2 (FDD 1900), B3 (FDD 1800), B4 (FDD 1700 / AWS), B5 (FDD 850), B7 (FDD 2600), B12 (FDD 700ac), B13 (FDD 700c), B20 (FDD 800DD), B25 (FDD 1900), B26 (FDD 850), B29 (SDL 700), B30 (FDD 2300), B41 (TDD 2500)

UMTS Bands

B1 (2100), B2 (1900),B3 (1800),B4 (AWS),B5 (850),B8 (900)
