XR80s are open box (pre-owned, some wear, set up for use but Neveractually used in the field, new condition!). The XR80s are factory reset and inperfect cosmetic and working condition.
Barrel connection cords included in purchase.
Value for ONE new routers (1,799+ Each -Source: CDW andWestward Sales and SHI international).

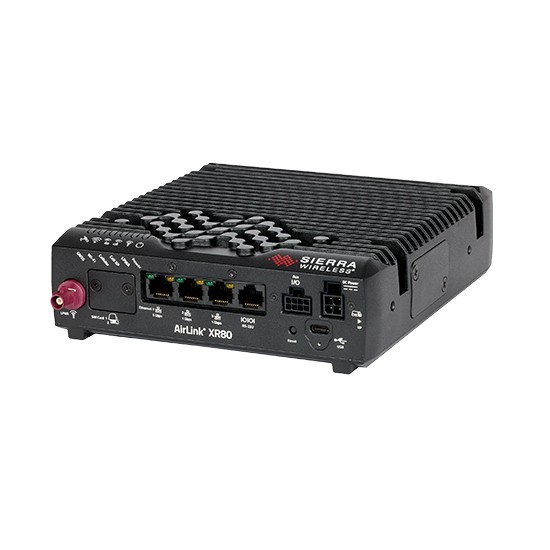

The supercharged AirLink® XR80 5G LTE router is optimizedfor fixed and mobile applications. The available dual-5G cellular radio and 5×4MU-MIMO deliver the flexibility expected from a high-performance vehicle andindustrial 5G router with customized configurations. The AirLink XR80 supportscomplete device-to-cloud security, reduces total cost of ownership with ALMSOut-of-Band management, and, with its cartridge-based design, enables long-termexpandability and upgradability for critical mobile and industrial deployments.
Single: 5G: 3X Ethernet (2x1 Gbps + 1x5 Gbps)
Dual 5G: 4x Ethernet (3x1 Gbps + 1x5 Gbps)
Use Case: Mobile and critical applications in public safetyand field services fleets. Fixed wireless access, SCADA, Edge, and industrialIoT.
NDAA Compliant Product = well suited for government, defenseand a range of projects subject to the NDAA.
AirLink® XR80 – Router Specifications
AirLink® XR80 – Router Specifications
KEY FEATURES
Cellular Radios
5G/LTE Cat-20
LPWA for ALMS Out of Band Management
Ethernet
Single 5G: 3x RJ45 (2×1 Gbps + 1×5 Gbps)
Dual 5G: 4x RJ45 (3×1 Gbps + 1×5 Gbps)
Serial
Single/Dual RS-232 (DB9) with optional cables
GNSS
48 Channel GNSS with Dead Reckoning
CAN
CAN bus/OBD-II (J1979)/J1939)
I/O
5 GPIO
USB
USB 3.1 USB-C
Bluetooth
–
IP Rating
Sealed Aluminum Housing (IP64 Rated)
QoS = Application/Traffic Priority Queuing
WAN Monitors = Connection Failure Recovery
Services
AirLink Complete
Operating System
AirLink OS
Management System
ALMS
POWER
Input Voltage
7 to 36 VDC
Power Consumption
Peak: 54W (4.5A @12V)
Standby: 55mW (4.5mA@12V)
Power Modes
Built-in protection against voltage transients including 5VDC engine cranking and +200 VDC load dump
Ignition Sense with time delay shutdown
dual sim
GNSS w Dead Reckoning
IP64 Rated
Airlink OS w AirLink Complete
