The Signamax Category 5eMD-Series Unscreened Patch Panelswere designed to feature a fully enclosed, modular design,which provides flexibility and protection of printed circuitry duringtermination. The sixfold 110-type connector blocks significantlyimprove connector-to-connector interference isolation andelectrical transition between socket contacts and IDC’s. For easycircuit identification, each port designation features a labeling areaand a reference number.

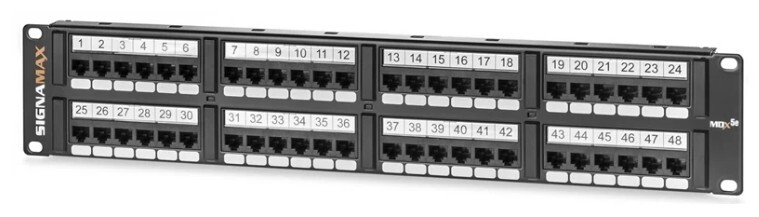

The MD-series panels are available in 12, 24, or 48 port versionsfeaturing a rolled-edge steel construction eliminating panel flexduring fixed termination. The contact design provides enhancedplug-to-jack connection integrity and protects against damagecaused by insertion of 4 or 6 position plugs. Termination can bedone using a standard single-position 110 termination tool, and theports are all rated for a minimum of 750 plug insertions providingfor the highest level of system reliability.
