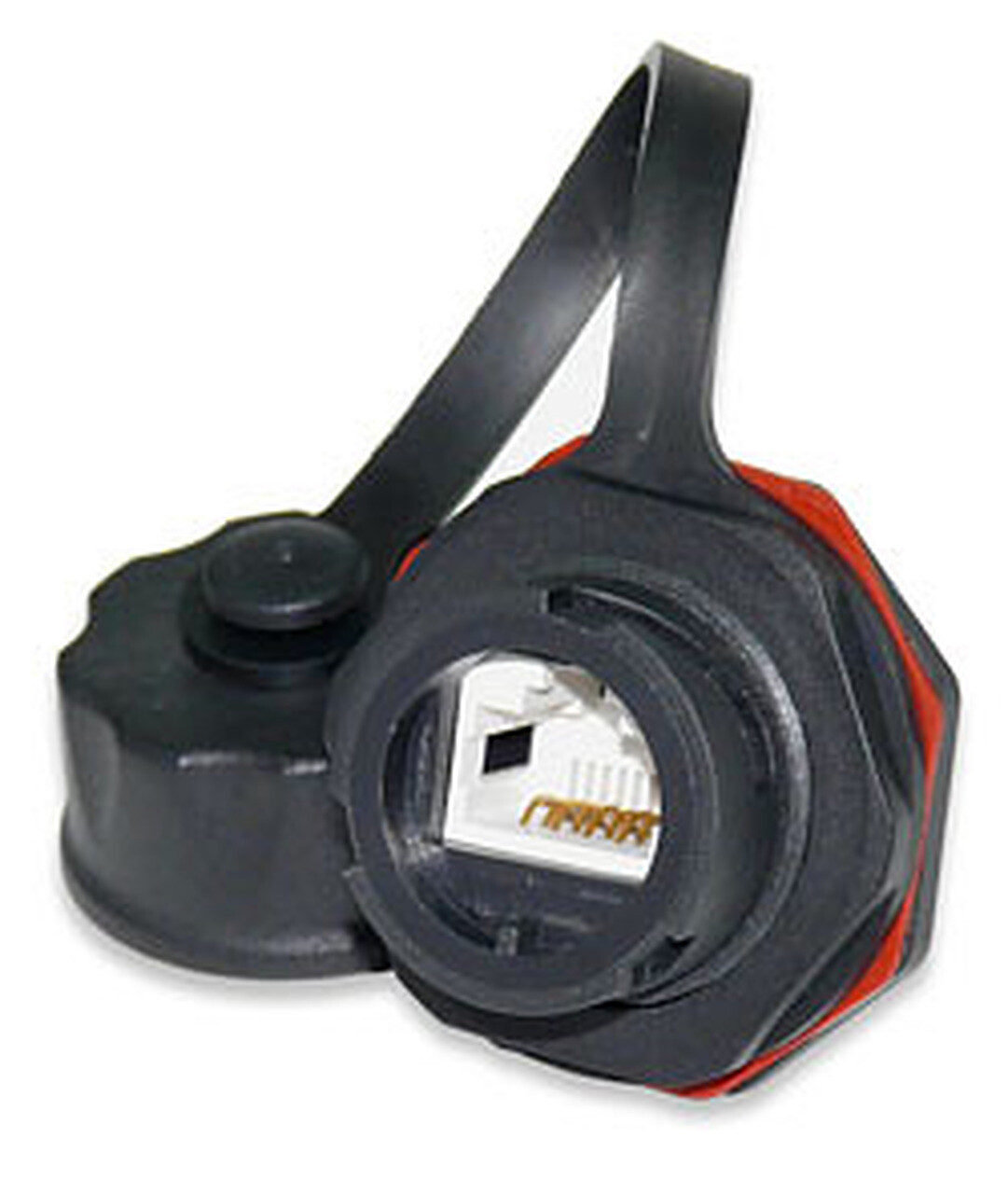

Signamax KJS458IG-C6C Cat 6 FTP Industrial IP67 Jack Protective Cap T568A/BBrand new in original packaging.
OVERVIEW
Signamax industrial grade jacks provide the same high-level transmission performance as other Signamax twisted-pair connectors in-tended for regular commercial applications, but with a robustness capable to withstand harsh environments typical to factory floors, chemical, food processing plants, etc. Unique IP67-rated jack housing design guarantees superb protection against liquid and solid agents’ penetration, against vibrations, and for a long-life reliable performance. Jacks are furnished with dust caps to prevent expo-sure of unmated connectors and are available in an unscreened (UTP) and screened (FTP) versions.KEY FEATURES

• Unique IP67-rated jack housing design
• Furnished with dust caps
• Applications – factory floors, chemical, food processing plants
• T568A and T568B wiring with an easy-to-read color-code wiring label
• Termination with standard single-position 110 termination tool
• Rear 110-type contacts provide improved wire retention and ease of termination
• Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4 or 6 position plugs
• Rated for at least 750 plug PERFORMANCEANSI/TIA/EIA-568-C.2: meets or exceeds category 6 (1 MHz–250 MHz) component specifications
  TRANSMISSION MEDIAKJ458IG-C6C: Unscreened twisted pair (UTP)KJS458IG-C6C: Unscreened twisted pair (UTP) or screened twisted pair (ScTP, FTP, STP)
  JACK TYPE8p8c (8-position, 8-contact) “RJ45” type
  WIRING SCHEMEANSI/TIA/EIA-568-C.2: T568A & T568BISO/IEC 11801 2nd Ed.: 8-position pin/pair assignment (1-2/3-6/4-5/7-8)
  WIRE GAUGE22-26 AWG (0.643-0.404 mm)
  CONSTRUCTIONExternal housing: high impact thermoplasticConnector housing: high impact thermoplastic, UL94V-0 fire retardantJack spring wire: phosphor bronze alloy plated with 50 μin of gold over 70-100 μin of nickelIDC: 110 type, phosphor bronze alloy with 100-μin 100% tin alloy
  FOOTPRINTAssembly: 39 mm (1.6 in) dia.Connector module: Standard keystone footprint
  MOUNTING DIMENSIONSH 38.9 mm W 36.6 mm D 46.2 mmH 1.53 in W 1.44 in D 1.82 in
  IP CLASSIP67:– jack to Signamax IP67 mounting box– jack to Signamax IP67 equipment or patch cord– jack to Signamax IP67 dust cap
  OPERATING TEMPERATURE-10 °C-+60 °C (-14 °F-+140 °F)
  COMPLIANCEANSI/TIA/EIA-568-C.2, ISO/IEC 11801 2nd Ed., CENELEC EN 50173, FCC Part 68 Subpart F, UL 1863, IEC 60603-7
  APPLICATIONSX.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, 10GBASE-T (up to 55 m), TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD
