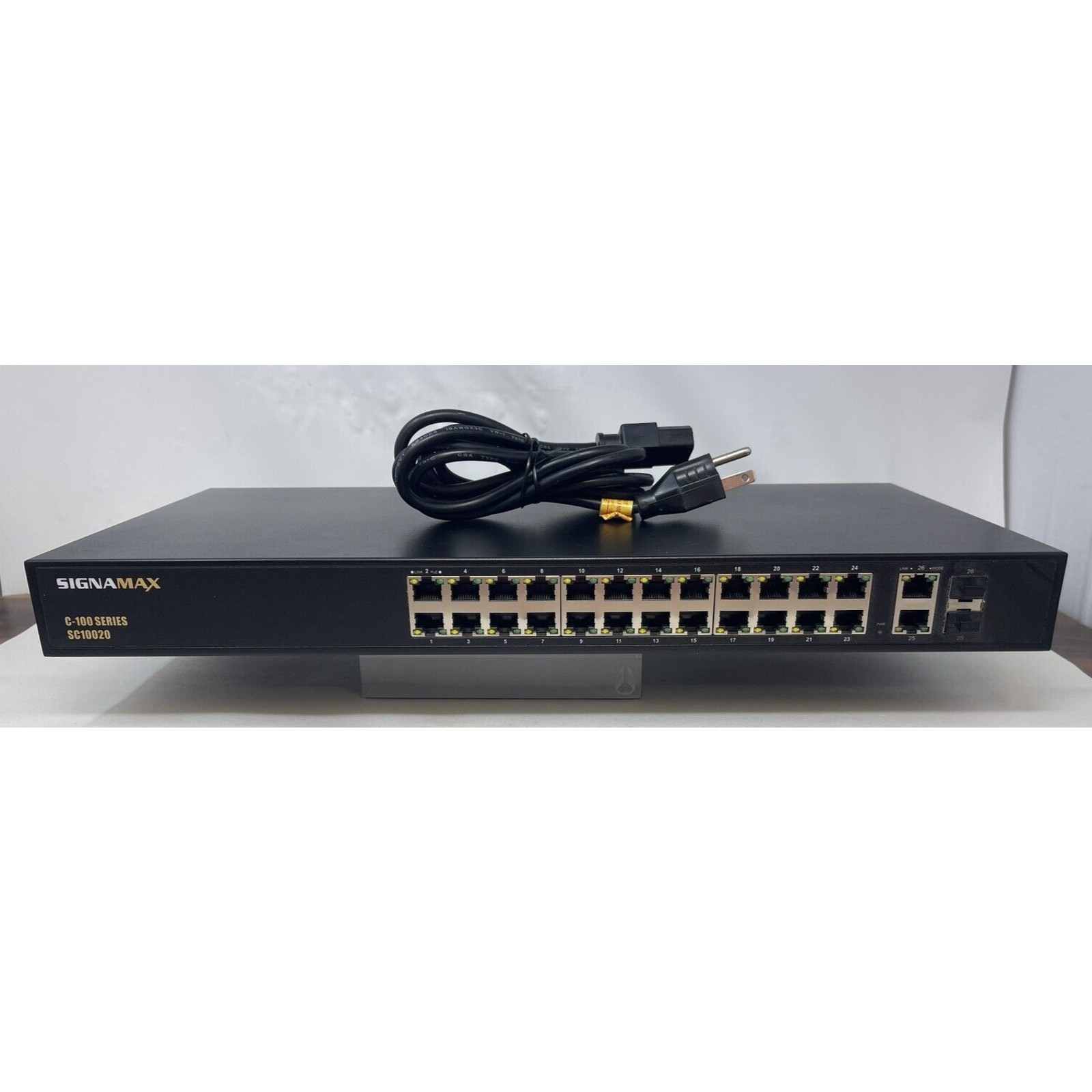

C-100 24 Port Fast Ethernet PoE+ Switch
* Zero touch Plug and Play connectivity
* Delivers up to 385W PoE with PoE+ support on all ports
* 400W internal power supply
* 2 Gigabit SFP combo uplink interfaces
* Rugged metal case with clean black finish
* Integrated mounting brackets for rack installation

RJ-45 (Downlink): 24 10/100
Uplink Ports: 2 Gigabit SFP Combo
PoE: 24

PoE
* Budget: 385W
* Support IEEE 802.3af/IEEE802.3at on each port
* Dynamic Power Allocation

PERFORMANCE
* Switching Capacity: 8.8Gbps
* Forward Rate: 6.6Mpps
* 4K MAC Addresses
* 4Mb Packet Buffer
* Supports 10K Jumbo Frames
* Wirespeed Forwarding

LAYER 2 STANDARDS
* IEEE 802.3 10BaseT
* IEEE 802.3u 100BaseTX
* IEEE 802.3ab 1000BaseT
* IEEE 802.3 Auto-Negotiation
* SFP ports support IEEE 802.3u (100FX), 802.3z (1000SX/LX/LHX/ZX)
* IEEE 802.3x Flow Control
* IEEE 802.3az Energy Efficient Ethernet (EEE)

ELECTRICAL CHARACTERISTICS
* Max Power Consumption: 400W
* Power Supply AC Input: 100 – 240 V AC, 50/60 Hz
* MTBF: 100K hrs

PHYSICAL CHARACTERISTICS
* Dimensions: 17.3” W x 8.3” D x 1.7” H (44 cm x 21 cm x 4.4 cm)
* 19 in rack mounting hardware included
* Weight: 6.8 lb (3.1 kg)

ENVIRONMENTAL REQUIREMENTS
* Operating Temperature: 14 to 131°F (-10 to 55°C)
* Storage Temperature: -40 to 158°F (-40 to 70°C)
* Operating/Storage Humidity: 5 to 95% (non-condensing)

CERTIFICATIONS
* CE Mark: EN 55022, Class B; FCC Part 15 Class B; VCCI Class B
* Safety: CE/LVD EN60950
