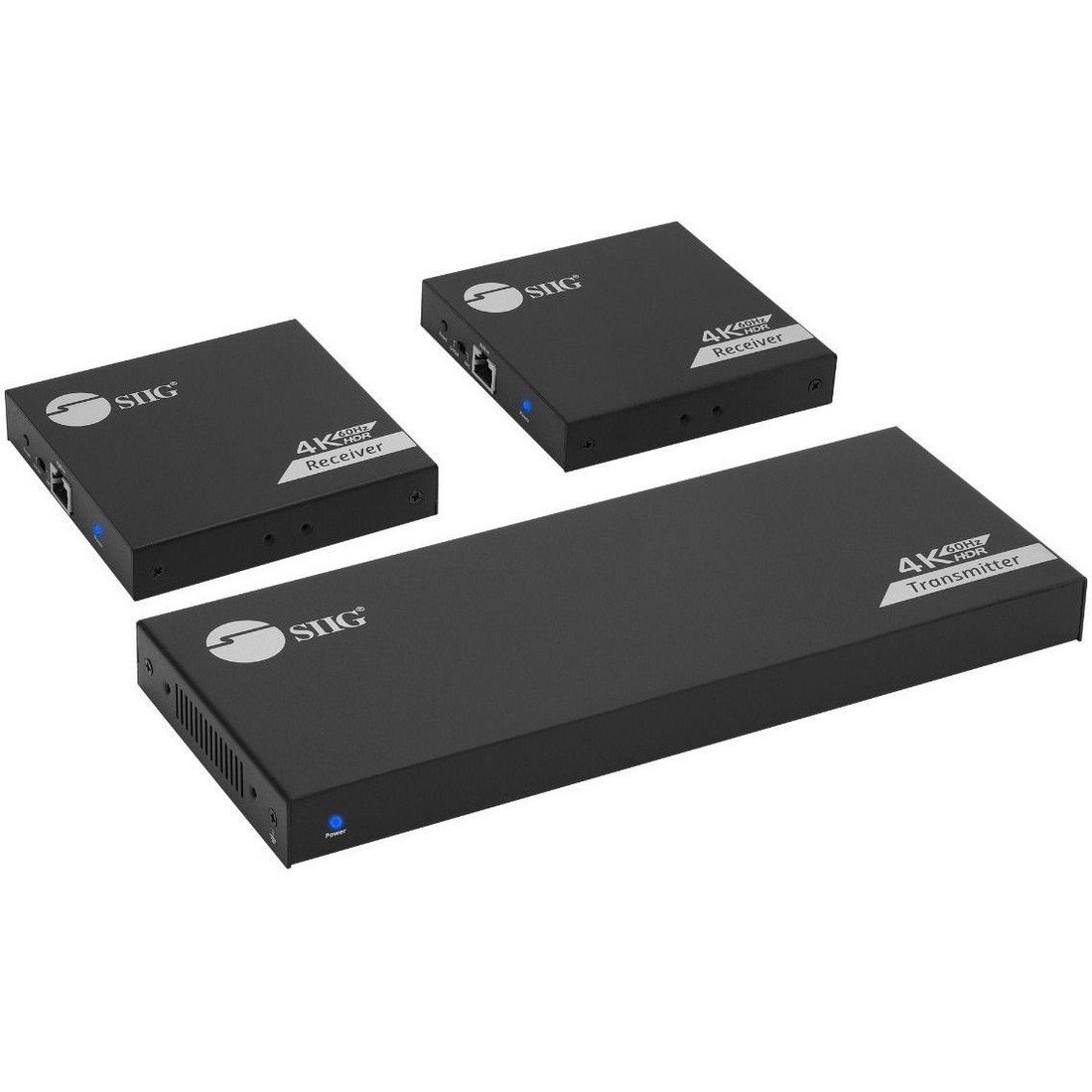

SIIG 1x2 HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232 (ce-h27911-s1) SIIG 1x2 HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232 (ce-h27911-s1)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: 1 x Transmitter 2 x Receiver 3 x Power Adapter 1 x IR Blaster extension cable 2 x IR Receiver extension cable Terminal block Mounting kit User Manual
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Product Description
This item is brand-new, factory sealed.
Features
4K HDMI Extension - Easily extends UHD 4K@60Hz HDMI signals up to 230ft (70m) over economical Cat6/7 cabling to up to 2 displays
Advanced Transmission Technology - Unique ultra-high-definition video digital transmission and connection extender technology, can extend and transmit 4K@60Hz YUV 4:4:4 video and audio, with zero latency, HDR
HDMI Loopout + Extend 2 Displays - Supports one HDMI loop-out for additional local display connections and extender 2 receivers for HDTV or Projector via Cat6/7 cable
EDID Management - Support EDID management capability to controls the resolution output to the display(s)
Audio Extraction - Extracts digital audio from the HDMI signal and routes it through the receiver's digital S/PDIF port via PCM2, Dolby 5.1, DTS 5.1 audio signal
IR Control - Built-in bi-directional IR provides full remote control capabilities, control the HDMI source device at the remote display location and vice versa
ARC and Audio Extraction - Through the Toslink connection of the Receiver (RX)
RS-232 Control - Support RS-232 command control in the Transmitter
Protection - Protection, Surge Protection, ESD Protection
High Quality Wall mount Design - High quality metal housing improve heat dissipation and ensure system stability during long hours of operation
Easy Installation - Plug and play installation, no driver installation required
Multiple Connectivity Ports
Comes with one HDMI video input port, one HDMI video loop-out port, two HDMI video output ports, four RJ45 network ports, three 3.5mm IR emitter ports, three 3.5mm IR receiver ports, two S/PDIF ports, one RS-232 terminal block, one DIP switch, three reset buttons, two audio slide switches, one DC power jack (12V/2A) for TX, two DC power jacks (5V/2A) for RXs Video Resolution:
Up to 3840x2160 at 60Hz, 2160p / 1080p / 1080i / 720p / 480p Compliant with HDCP 2.2 Transmission Distance:
4K at 60Hz: Up to 70m via Cat6/7 cable
4K at 60Hz: Up to 40m via Cat5 cable Audio:
HDMI: PCM2/5.1/7.1, Dolby and DTS 5.1
Toslink: PCM2, Dolby and DTS 5.1 Full frequency IR signal from 20KHz to 60KHz RS-232:
3-pin: GND-RxD-TxD, follow RS-232 Levels, Support up to 115200 baud rates Network cable:
UTP/STP CAT5e/6/6a/7 Product:
Housing material:
Metal with wall mount design Color:
Black Transmitting unit (TX):
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 19-pin HDMI, Female, Loopout
2x 8-pin, RJ45, video output
1x 3.5mm jack, IR Blaster
1x 3.5mm jack, IR Receiver
1x 3-pin Terminal Block, RS-232 for control
1x 4-pin DIP Switch for EDID management
1x Power jack
1x Reset button Receiving unit (RX):
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 8-pin, RJ45, video input
1x 3.5mm jack, IR Blaster
1x 3.5mm jack, IR Receiver
1x S/PDIF Toslink, Audio and ARC
1x Slide switch, (S/PDIF and ARC)
1x Power jack
1x Reset button Power adapter:
Input:
100-240V / 50-60Hz TX :
DC 12V/2A RX :
DC 5V/2A UL listed:
E335801 / Level: VI Environmental conditions:
Operating temperature:
14 to 140 degrees F
Storage temperature:
-4 to 158 degrees F
Relative humidity:
0 to 90% RH (non-condensing) Certifications/Standards:
FCC, CE, RoHS Interface
1x Transmitter (TX)
1x 19-pin, HDMI, Female (input)
1x 19-pin, HDMI, loop-out, Female (output)
1x 3.5mm infrared jack, IR emitter (output)
1x 3.5mm infrared jack, IR receiver (input)
2x 8-pin, RJ45 (output)
1x 3-pin, RS-232 terminal block (for control)
1x 4-pin, DIP switch (for EDID management)
1x Reset button
1x DC power jack, 12V/2A 2x Receivers (RX)
2x 19-pin, HDMI, Female (output)
2x 3.5mm infrared jack, IR emitter (output)
2x 3.5mm infrared jack, IR receiver (input)
2x 8-pin, RJ45 (input)
2x S/PDIF, Toslink digital audio (output)
2x Audio slide switch (S/PIDF and ARC)
2x Reset button
2x DC power jack, 5V/2A Package contents
1x2 HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC and RS-232
Power adapter (x3)
IR Blaster extension cable (x1)
IR Receiver extension cable (x2)
Terminal block
Mounting kit
User Manual SpecificationPower DescriptionFrequency
Physical CharacteristicsTransmitter Weight (Approximate)1.43 lbReceiver Width4.15"Receiver Height0.79"Product ColorBlackReceiver Depth4.04"Transmitter Depth4.09"Receiver Weight (Approximate)8.64 ozTransmitter Height0.91"Transmitter Width10.43"WarrantyLimited Warranty2 YearInterfaces/PortsNetwork (RJ-45)YesHDMI OutYesNumber of HDMI Inputs1HDMI InYesNumber of HDMI Outputs3Number of Network (RJ-45) Ports4VideoMaximum Video Resolution3840 x 2160Graphics Modes4KGeneral InformationBrand NameSIIGMarketing Information Multiple Connectivity Ports Comes with one HDMI video input port, one HDMI video loop-out port, two HDMI video output ports, four RJ45 network ports, three 3.5mm IR emitter ports, three 3.5mm IR receiver ports, two S/PDIF ports, one RS-232 terminal block, one DIP switch, three reset buttons, two audio slide switches, one DC power jack (12V/2A) for TX, two DC power jacks (5V/2A) for RXs Applications Meeting room Lecture hall Educational facilities Multimedia education Home theater Restaurant Shopping center Library Show room Product TypeVideo Extender Transmitter/ReceiverProduct Name1x2 HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232ManufacturerSIIG, IncManufacturer Part NumberCE-H27911-S1Media & PerformanceTwisted Pair Cable StandardCategory 7Media Type SupportedTwisted PairTitleProduct TitleSIIG 1x2 4K60Hz HDMI Splitter Over Cat6 Extender with Loopout/IR/ARC & RS-232 - Up to 230ft [70m] - Near Zero Latency (CEH27911S1)Technical InformationMaximum Operating Distance229.66 ftNumber of Input Devices Supported1Connectivity TechnologyWiredNumber of Output Devices Supported2 Shipping
