SIIG HDMI 4K30Hz KVM Over IP Extender - 120m[394ft] - Over IP KVM Extender - One to Many - HDMI Loop-out - Downscaler - Low-latency (293259) SIIG HDMI 4K30Hz KVM Over IP Extender - 120m[394ft] - Over IP KVM Extender - One to Many - HDMI Loop-out - Downscaler - Low-latency (293259)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: HDMI 4K30Hz KVM Over IP Extender - RX Power Adapter DC 5V/1A User Manual
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Product Description
This item is brand-new, factory sealed.

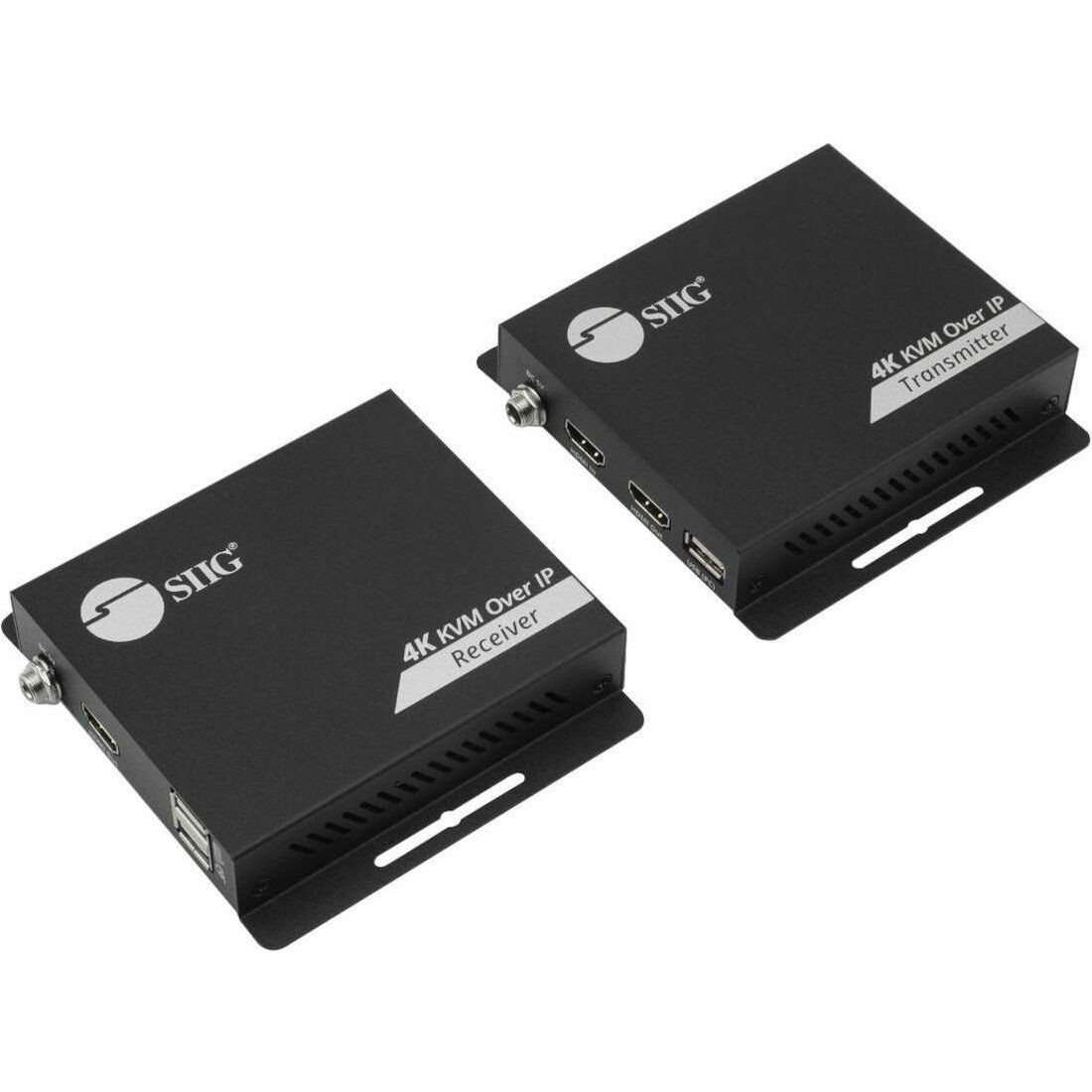

HDMI 4K30Hz KVM Over IP Extender - 120m(394ft) - Over IP KVM Extender - One to Many - HDMI Loop-out - Downscaler - Low-latency
HDMI 4K30Hz KVM Over IP Extender - 120m (394ft) is designed for long-distance transmission of high-definition video, audio, and USB signals over a standard Cat 6 network cable. It allows seamless remote control of computers, servers, and media devices with a maximum range of 394 feet (120 meters). HDCP 1.4, HDMI Loop-out, Downscaler, Low-latency signal transmission, plug-and-play installation, the additional receiver unit (part#- CE-H3KE01-S1) is sold separately
Features
High-Quality and Long-Distance Signal Transmission
4K 30Hz up to 394 feet (120m) - Transmits video content up to 4K@30Hz with HDCP 1.4 compliance, ensuring compatibility with protected content; Downscales 4K to 1080p at the receiver's HDMI output, ensuring compatibility with a wide range of displays
One to One Connection
One-to-Many Connection
Following with TCP/IP standard and Compatible with gigabit Ethernet switch hubs, enabling 1-to-1 or 1-to-many extension modes for versatile setups, the additional receiver unit (part# CE-H3KE01-S1) is sold separately
Flexible Connectivity
USB Connection for Keyboard and Mouse Control - Delivers three USB Type-A ports, two for independent HID keyboard & mouse to control your PC system from a remote location and one for host connection such as Laptop or Desktop. It also supports wireless keyboard and mouse with a dongle plugged into the USB port
*Note: Touch screen functionality is not supported
HDMI Loop-Out
The transmitter features an HDMI loop-out, allowing local monitoring while extending the signal to a remote display or dual-screen setups
High-Speed Transmission
Delivers a maximum video bandwidth of 3.4Gbps per channel (10.2Gbps across all channels), ensuring smooth and reliable signal transmissionCompliant with HDCP 1.4 specificationVideo resolution:
4K30Hz, 1080p, 1080i, 720p, 576p, 480pBandwidth:
3.4Gbps / 340MHz (10.2Gbps all channels)Transmission distance:
Up to 120m for 4K30HzAudio Format:
PCM 2/5.1/7.1chProduct:
- Color: Black
- Housing: Metal
- Transmitting unit (TX):
Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 19-pin HDMI, Type A, Female, Output
1x 8-pin, RJ45 Output
1x 4-pin USB Type-A, Female, for Host connection
1x Reset Button
1x Power Jack
- Receiving unit (RX):
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 8-pin RJ45, Input
2x 4-pin USB Type-A Female, connect to Keyboard/Mouse
1x K/M Switch Button
1x Reset Button
1x Power JackPower adapter:
Input: 100-240V AC, 50/60 Hz
Output: DC 5V/1A
UL listed: E470034 / Level: VIEnvironmental conditions:
Operation Temperature: 32 to 122 degrees F
Storage Temperature: 14 to 158 degrees F
Relative humidity: 5 to 90% RH
FCC, CE, RoHSPackage contents
HDMI 4K30Hz KVM Over IP Extender - 120m
2x Power adapter 5V/1A
USB A to A Cable
User ManualItem Dimension (L inchxW inchxH inch)
12 x 3 x 10
Weight
3.00lb SpecificationPower DescriptionInput Voltage Range100-240V ACFrequency
Input Voltage
Physical CharacteristicsReceiver Width4.09"Receiver Height0.91"Product ColorBlackReceiver Depth4.41"Receiver Weight (Approximate)7.52 ozColor FamilyBlackWarrantyLimited Warranty2 YearInterfaces/PortsNumber of USB Ports2Network (RJ-45)YesNumber of HDMI Ports1Host InterfaceHDMIUSBYesHDMIYesNumber of Network (RJ-45) Ports1VideoMaximum Video Resolution3840 x 2160Graphic Mode4K UHDGeneral InformationBrand NameSIIGMarketing Information HDMI 4K30Hz KVM over IP Extender - RX is designed to receive high-definition video, audio and USB signals over long distances via standard Cat 6 / 7 network cable. It allows seamless remote control of computers, servers, and media devices with a maximum range of 394 feet (120 meters). HDCP 1.4, Downscaler, Low-latency signal transmission, plug-and-play installation, additional receiver for CE-H27R11-S1 kit More from the Manufacturer Product TypeKVM Extender ReceiverProduct NameHDMI 4K30Hz KVM Over IP Extender - RX - One to Many - Downscaler - Low-latencyManufacturerSIIG, IncManufacturer Part NumberCE-H27R11-S1TitleProduct TitleSIIG HDMI 4K30Hz KVM Over IP Extender - 120m[394ft] - Over IP KVM Extender - One to Many - HDMI Loop-out - Downscaler - Low-latency (CEH27R11S1)Technical InformationMaximum Operating Distance393.70 ftData Link ProtocolsTCP/IPDevice TypeKVM ExtenderConnectivity TechnologyWired Shipping
