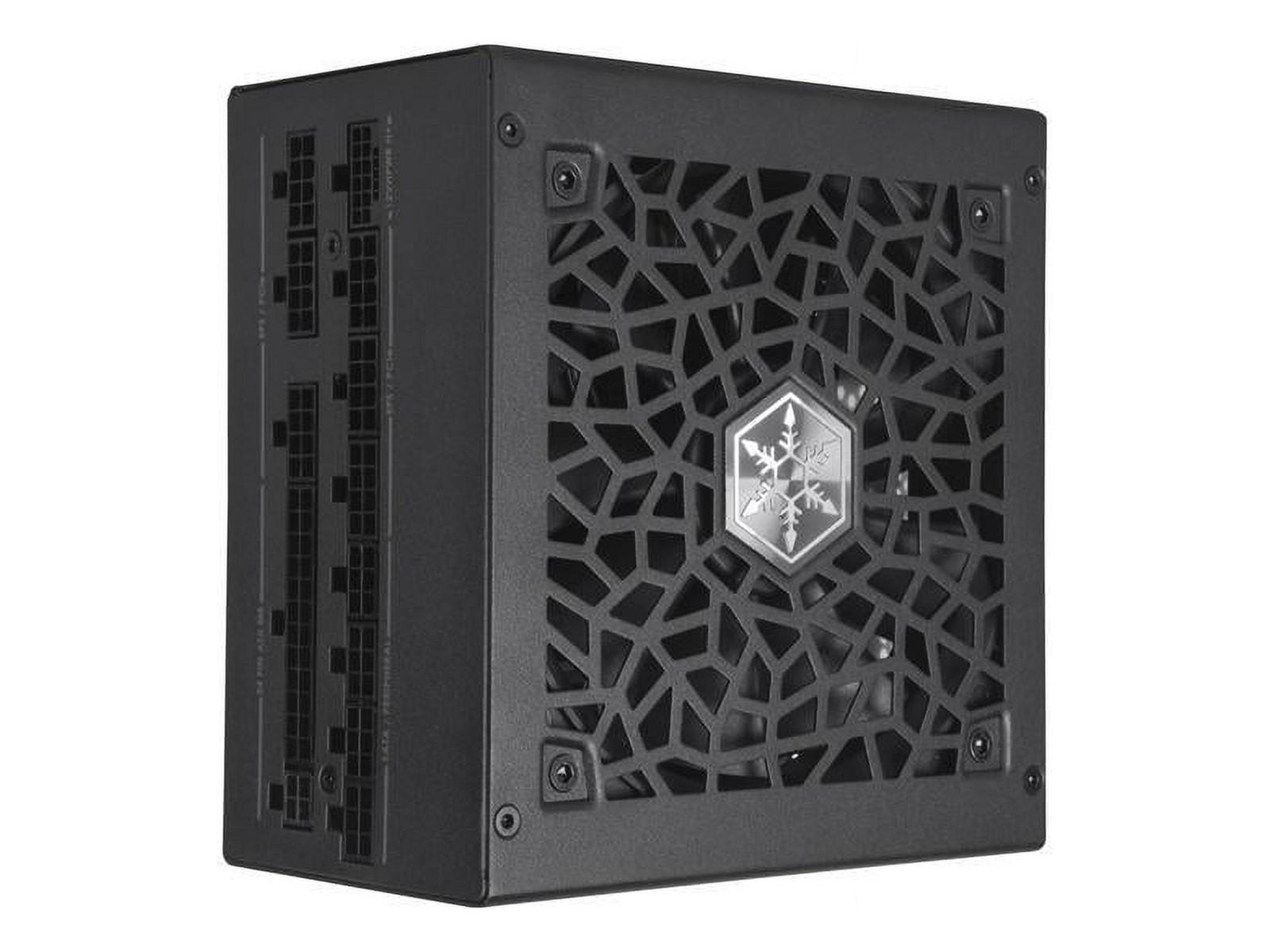

SilverStone SST-AX1300MCPT-A 1300W Power Supply (sst-ha1300r-pm) SilverStone SST-AX1300MCPT-A 1300W Power Supply (sst-ha1300r-pm)

International Customers: All electronic products are packaged for sale in the US with US voltage.

Certifications & Standards: TUV CE FCC UKCA EAC CCC

Energy Efficiency Certification: 80 Plus Platinum

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)
China Restriction of Hazardous Substances (China RoHS)
Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin: China

Product Description

This item is brand-new, factory sealed.

HELA 1300R Platinum

Cybenetics Platinum 1300W ATX 3.0/3.1 & PCIe 5.0 Fully Modular ATX Power Supply


Supports 12VHPWR PCIe connector with ATX 3.0/3.1 and PCIe Gen 5 standard

High efficiency with Cybenetics Platinum certification

Super flexible black flat cables

100% modular cables

24/7 continuous power output with 50? operating temperature

All Japanese electrolytic capacitors

Silent running 120mm FDB fan with semi-fanless and delayed shut-off function

180 angled SATA connectors designed for stack mounted hard drives Product No.
SST-HA1300R-PM Model (safety certification)
SST-AX1300MCPT-A Color
Black (lead-free paint) Max. DC Output
1300W Power density
720W per liter Load Range
Output / Max.(Amps) / Min.(Amps) / Range (%) / Line Reg.(%) / Ripple(mVp-p)
+3.3V / 24A / 0A / +/-5% / +/-1% / 40mV
+5V / 24A / 0A / +/-5% / +/-1% / 40mV
+12V / 108.3A / 0A / +5/-7% / +/-1% / 80mV
+5VSB / 3.0A / 0A / +/-5% / +/-1% / 40mV
-12V / 0.5A / 0A / +/-5% / +/-1% / 80mV Combined +3.3V and +5V
120W Combined +12V
1300W Input Voltage
90 to 264 Vrms Input Frequency Range
47Hz to 63Hz PFC
Active PFC (PF>0.9 at full load) Efficiency
is more than or equal to 89% and
