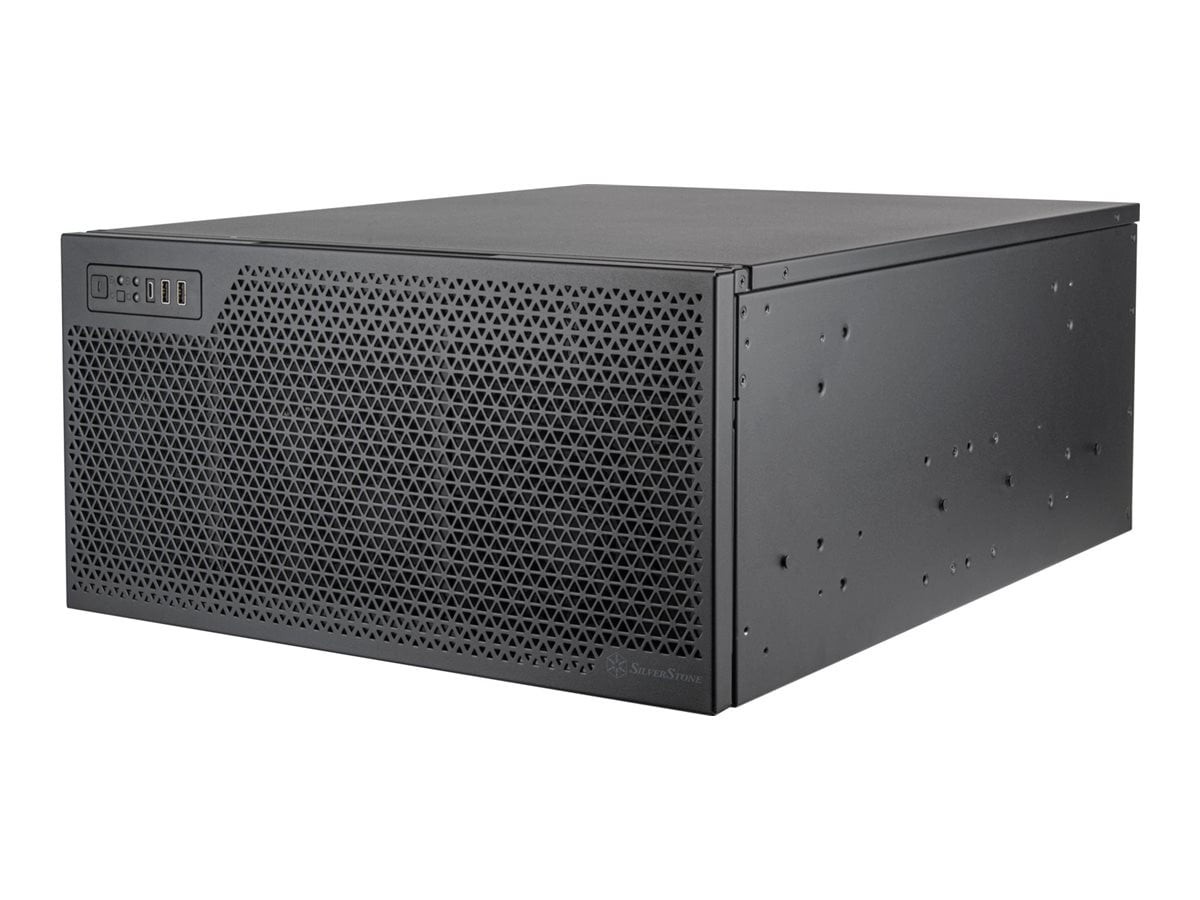

SilverStone SSTRM52 RM52 5U Rackmount Server Chassis SilverStone SSTRM52 RM52 5U Rackmount Server Chassis

International Customers: All electronic products are packaged for sale in the US with US voltage.

This item is brand-new, factory sealed.

RM52
5U rackmount server chassis with dual 360mm liquid cooling compatibility
Supports up to SSI-EEB motherboards
Supports dual 360mm liquid cooling radiators
8 PCI expansion slots
Reserved sliding rail mounting holes for quick rail installation
Includes one USB Type-C interface
Upright or horizontal placement flexibility
Dual-purpose chassis Industrial / Home
Designed for industrial rackmount or high-end home system usage, which can be placed in vertical or horizontal orientations.
Cooling performance up another notch
SilverStones unwavering commitment to achieving superior cooling performance is evident in the RM52, which boasts dual 360mm radiator compatibility, a notable improvement over the single 360mm radiator featured in its predecessor.
Tremendous hardware versatility
An internal 3.5" drive cage allows the installation of 2 x 3.5" HDDs. If its to be left unoccupied, enables the option of installing a secondary PSU in SFX form factorModel No.
SST-RM52Chassis form factor
5UMotherboard
SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITXMaterial
SteelDrive Bay
Internal
3.5" x 2 (compatible with 2.5" x 3) + 3.5" x 2 (compatible with SFX PSU)
2.5" x 4Power Supply
Primary PSU slot: PS2 (ATX) / Mini Redundant / 2U Redundant (V3.0 or after)
Secondary PSU slot: SFX (occupies 3.5" bracket)Limitation of PSU
160mm-190mm
(Removal of 3.5" drive cage eliminates PSU depth limitation)Cooling system
Front
120mm x 6
Rear
Rear I/O:
120mm x 1 / 140mm x 1 (1 x 140mm fan included)
Rear fan cage:
80mm x 2 (2 x 80mm fans included)Radiator support
Front
120mm x 4 / 360mm x 2
Rear
120mm x 1Limitation of CPU cooler
Height w/ expansion card retainer: 181mm
Height w/o expansion card retainer: 192mmExpansion card
Length: 512mm (without installing front fans, radiators, and internal radiator bracket removed) / 365mm (dual radiators installed with each radiator with fans having a combined thickness of 53mm)
Width w/ expansion card retainer: 160mm
Width w/o expansion card retainer: 198mmExpansion Slot
8Front I/O Port
USB Type-C x 1
USB 3.0 x 2LED Indicators
Power status x 1
HDD activity x 1
LAN activity x 2Extra
Side switch for chassis intrusion securityItem Dimension (L"xW"xH")
28 x 23 x 17

Weight
79 lbs

Warranty Information
1 Year SpecificationPhysical CharacteristicsProduct MaterialSteelForm FactorRack-mountableWeight (Approximate)25.24 lbCooler TypeLiquid CoolerProduct ColorBlackHeight8.7"Color FamilyBlackCompatible Rack Unit5UMaximum GPU ExpansionsTotal Number of Expansion Slots8Interfaces/PortsUSB Port Details

• 1 x USB Type C
• 2 x USB 3.0

Front USBYesTotal Number of USB Ports3BaysNumber of Internal 2.5" Bays4Number of Internal 3.5" Bays4General InformationBrand NameSilverStoneMarketing Information Cooling performance up another notch! SilverStone's unwavering commitment to achieving superior cooling performance is evident in the RM52, which boasts dual 360mm radiator compatibility, a notable improvement over the single 360mm radiator featured in its predecessor. Tremendous hardware versatility An internal 3.5" drive cage allows the installation of 2 x 3.5" HDDs. If it's to be left unoccupied, enables the option of installing a secondary PSU in SFX form factor Excellent space maximization To avoid any unforeseen damages to either the motherboard or the graphics cards, an expansion card retainer with storage drive mounting holes is included to prevent sagging of graphics cards while maximizing space utilization Highly versatile internal layout Easy rack accessibility Server rack sliding rails can be easily fitted onto the chassis with the reserved mounting holes. Product TypeServer CaseProduct NameSST-RM52 Server CaseManufacturerSilverStone Technology, IncManufacturer Part NumberRM52Product ModelSST-RM52TitleProduct TitleSilverStone SST-RM52 Server Case (SSTRM52)Technical InformationMotherboard Supported

• SSI EEB
• SSI ATX
• Mini ITX

Installed Fan Size
