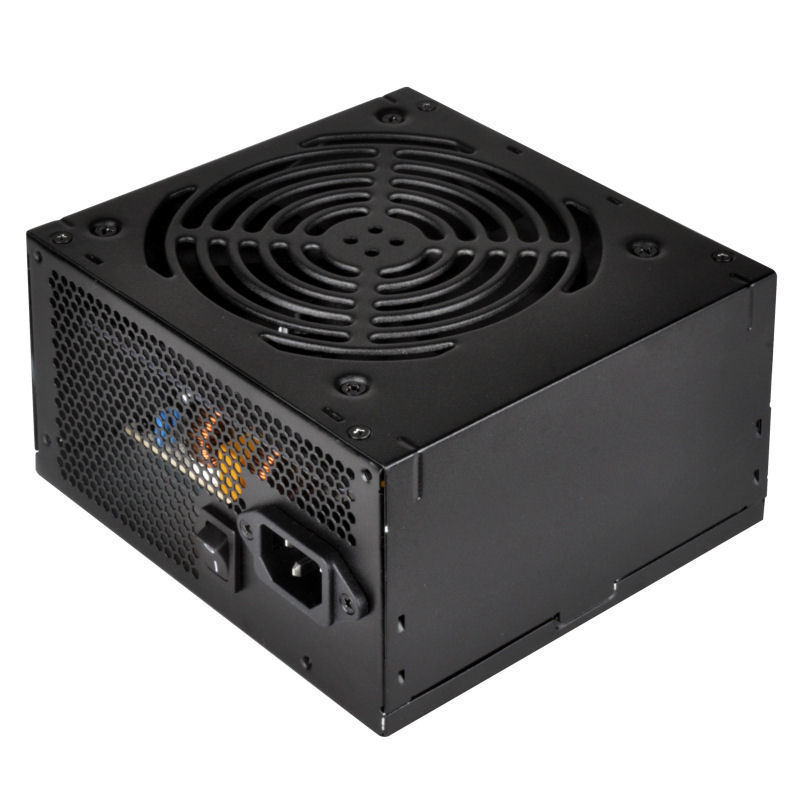

ilverStone created the Essential series power supplies to provide enthusiasts with an affordable choice when building PCs. ET750-B has 80 PLUS Bronze efficiency with single +12V rail and the ability to provide 24/7 40?continuous output. In addition, it’s equipped with low-noise 120mm fan and all-black flat cables for easier management. Even high-end systems with powerful graphics cards can be powered easily by Essential series PSUs’ standard 8pin / 6pin PCI-E connectors, making them an outstanding choice for those seeking the most value and performance for their money.
? High efficiency with 80 PLUS Bronze certification
? 24/7 continuous power output with 40? operating temperature
? Class-leading single +12V rail
? Silent running 120mm fan with 18 dBA
? PCI-E 8pin and PCI-E 6pin connectors support
? All-black flat cables design
Model No.SST-ET750-BMax. DC Output750WPower density415W per literLoad (Amps)///3.0A/Min.(Amps)0A0A0A0A0ARange (%)±5%±5%±5%±5%±10%Line Paint)Combined +3.3V & +5V120WCombined +12V744WInput Voltage90 ~ 264 VrmsInput Frequency Range47Hz ~ 63HzPFCActive PFC(PF>0.96 at full load)Efficiency82% ~ 85% @ 20% ~ 100% loadingMTBF100,000 hoursOperating temperature0°C ~ 40°CProtectionOver Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature ProtectionConnectors1 x 24 / 20-Pin motherboard connector(500mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(750mm)
4 x 8 / 6-Pin PCIE connector("500mm / 150mm" x 2)
6 x SATA connector("500mm / 150mm / 150mm" x 2)
3 x 4-Pin Peripheral connector(500mm / 150mm / 150mm)
1 x 4-Pin Floppy connector(500mm / 150mm / 150mm / 150mm)Cooling SystemSingle 120mm silent fanForm factorATXNoise Level18dBA minimumDimension150 mm (W) x 86 mm (H) x 140 mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)
