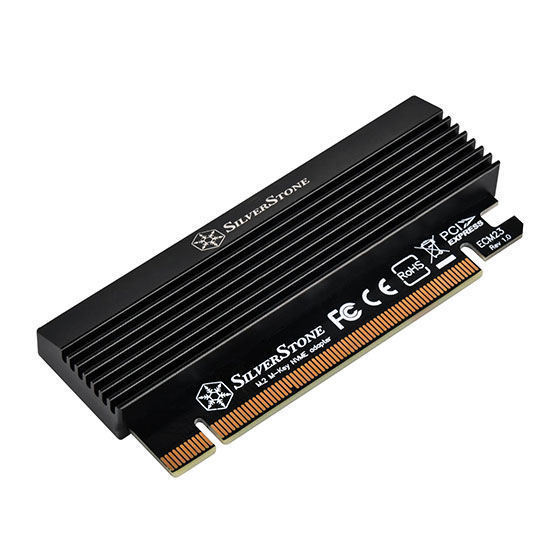

SilverStone’s ECM23 is an adapter card designed for users wanting to utilize or add speedy M.2 devices such as SSD onto their existing PC or motherboard. ECM23 supports M.2 device (M key) to run via the super fast PCIe interface for added storage potential. It also includes an aluminum heatsink to enhance cooling and protect installed M.2 device. For users looking to expand their M.2 slots with fastest interface possible, the ECM23 is a must have.

The following SSD models have been tested and verified by SilverStone to work optimally with the product presented on this page.
Intel NVMe SSD 760p Series
Samsung NVMe SSD 970 EVO M.2
Samsung NVMe SSD 970 PRO M.2
Samsung NVMe SSD SM951/961 M.2
Samsung NVMe SSD 960 EVO M.2
Samsung NVMe SSD 960 PRO M.2

Model No.SST-ECM23LED indicatorPCIe M.2 SSD Read / Write LED: Blue blinkingInterfacePCI Express x 4 via full size x 16 pinoutSSD InterfaceM.2 (NGFF)Module KeyPCIe x 4 NVMe-based M keyOperating system supportMicrosoft Windows 7 (32bit/64bit), 8/8.1/10 (32bit/64bit) or future release version
Mac OS 10.2.8 or above
LinuxSupport Length of M.2 SSD30mm, 42mm, 60mm, 80mmNet Weight and dimensionHeatsink with PCB:105mm (W) x 11mm (H) x 44mm (D), 52g
Heatsink with PCB:4.13" (W) x 0.43" (H) x 1.73" (D), 52gThermal PadThermal conductivity1.5W/m.kOperating temperature-40 °C ~ 220 °CThermal pad thickness0.5 / 1 / 1.5mmNet Weight and dimensionCharcoal Pad：70 mm (W) x 0.5 mm (H) x 20mm (D), 1.95g
Blue Pad ：70 mm (W) x 1 mm (H) x 20mm (D), 3.6g
Gray Pad: 70 mm (W) x 1.5 mm (H) x 20mm (D), 5.5g

Charcoal Pad：2.76" (W) x 0.02" (H) x 0.79" (D), 1.95g
Blue Pad：2.76" (W) x 0.04" (H) x 0.79" (D), 3.6g
Gray Pad：2.76" (W) x 0.06" (H) x 0.79" (D), 5.5g
