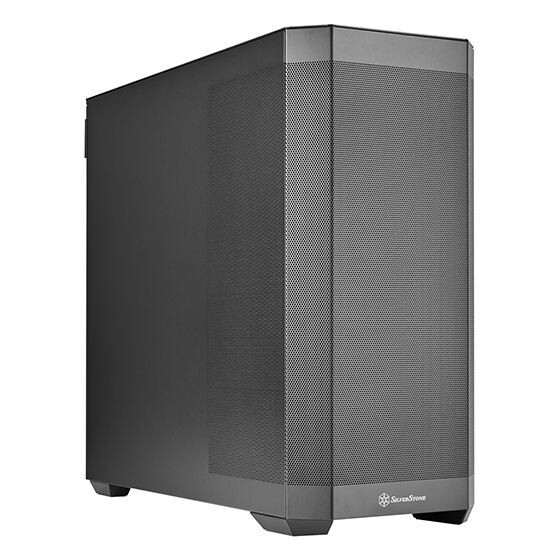

Crafted from high-grade steel, provides exceptional durability and robustness
Fully perforated front mesh panel for unobstructed airflow.
Compatible with SSI-EEB workstation motherboards
Supports up to 15 x 2.5" SSDs / 3.5" HDDs, including 15mm thick SSDs
Multi-GPU capability with 8 PCI slots
Front I/O includes 1 x USB Type-C, 2 x USB 3.0, 1 x Combo Audio
Model SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX
Drive bay
Internal
3.5" / 2.5" x 11
3.5" x 1 / 2.5" x 2
2.5" x 2
Cooling system
Front
120mm x 3 / 140mm x 3
Rear
120mm x 1 / 140mm x 1
Top
120mm x 3 / 140mm x 3 / 160mm x 2
Side
120mm x 2 [1]
Radiator support
Front
120mm / 140mm / 240mm / 280mm / 360mm / 420mm
Rear
120mm / 140mm
Top
120mm / 140mm / 240mm / 280mm / 360mm / 420mm
Side
120mm / 240mm [1]
Limitation of CPU cooler
188mm
Expansion slot
8
Limitation of expansion card
Length: 428.9mm (with front 25mm thickness fans installed)
330mm (with side radiator & fans installed)
Power supply
Standard PS2 (ATX)
Limitation of PSU
220mm
Front I/O port
USB Type-C x 1
USB 3.0 x 2
Combo Audio x 1
Dimension
244.9mm (W), x 528.3mm (H), x 543.2mm (D), 70.28 liters
9.64" (W), x 20.8" (H), x 21.39" (D), 70.28 3.5"/2.5" combo drive trays are also mounted in this location but cannot coexist with the fans or radiators.
