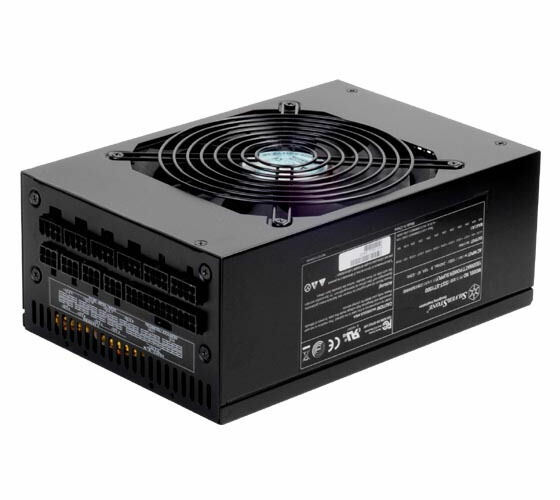

IntroductionReaching 1500W DC output (1600W peak), the Strider ST1500 is effectively at the limit of what an internal PC power supply can achieve in terms of wattage rating. For SilverStone, getting to this maximum power was only part of the goal for a consumer-level power supply so every desirable feature know were added to create a dream product. The list starts with unprecedented eight +12V rails with each capable of up to 25A and continues with features such as 100% modular cables, 80 PLUS Silver worthy efficiency ratings, and quietness level that matches most 500W PSUs. If there is one upgrade that will likely outlast a PC enthusiastfs interest in computing, the ST1500 may just be it.
Special Feature1500W continuous and 1600W peak power100% modular cables with cable bagEfficiency 85%~88% at 20%~100% loading with 80 PLUS Silver certificationClass-leading eight +12V rails with 110A (Peak up to 120A)1500W continuous power output with 40‹C operating temperatureStrict }3% voltage regulationSilent running 135mm fan with 19dBA minimumJapanese main capacitorsFour PCI-E 8pin, eight PCI-E 6pin, and twelve SATA connectors supportSupport ATX 12V 2.3 & EPS 12VActive PFC
Connectors1 x 24 / 20-Pin Motherboard connector i550mmj
1 x 8 / 4-Pin EPS / ATX 12V connector i750mmj
1 x 8-Pin EPS 12V connector i750mmj
4 x 8/6-Pin PCIE connector i550mmj
4 x 6-Pin PCIE connector i550mm / 150mmj
12 x SATA connector i500mm / 250mm / 250mmj
12 x 4-Pin Peripheral connector i500mm / 250mm / 250mmj
4 x 4-Pin Floppy connector i500mm / 250mm / 250mm / 150mmj
