￭ Compact design with a depth of 140mm for easy integration

￭ High efficiency with 80 PLUS Platinum certification

￭ 100% modular cables

￭ 24/7 continuous power output with 40℃ operating temperature

￭ Class-leading single +12V rail

￭ Strict ±3% voltage regulation and low ripple & noise

￭ Ultra silent 120mm fan with intelligent semi-fanless operation

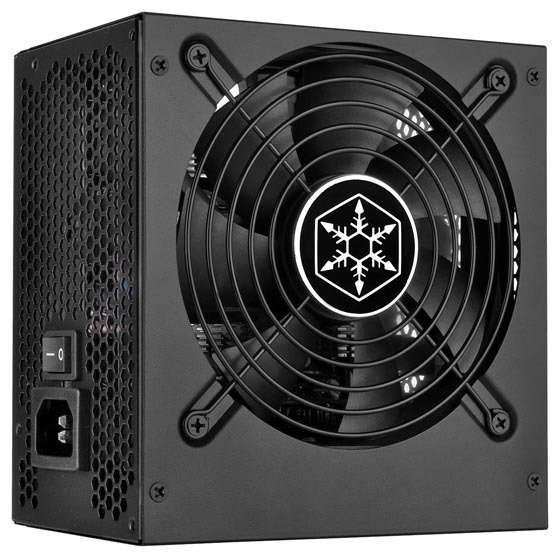

Model No. SST-ST75F-PT Max. DC Output 750W Power density 415W per liter Load Range +3.3V +5V +12V +5VSB -12V Max.(Amps) 22A 22A 62.5A 3.0A 0.3A Peak (Amps) / / / / / Min.(Amps) 0A 0.2A 0A 0A 0A Range (%) ±3% ±3% ±3% ±5% ±10% Line Reg.(%) ±1% ±1% ±1% ±1% ±1% Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV Color Black（Lead-Free Paint） combined +3.3, +5V 120W combined +12V 750W Input Voltage 90V~264V Input Frequency Range 47Hz~63Hz PFC Active PFC（PF>0.9 at full load） Efficiency 89%~92% at 20%~100% loading MTBF 100,000 hours Operating temperature 0°C ~ 40°C Protection Over current protection
Over power protection
Over voltage protection
Under voltage protection
Over temperature protection
Short circuit protection Connectors 1 x 24 / 20-Pin motherboard connector（550mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（750mm）
4 x 8 / 6-Pin PCIE connector（"550mm / 150mm"x2）
8 x SATA connector（"600mm / 150mm / 150mm /150mm"x2）
6 x 4-Pin Peripheral connector（"600mm / 150mm / 150mm"x2）
2 x 4-Pin Floppy connector（"600mm / 150mm / 150mm / 150mm"x2） Cooling System Single 120mm silent fan Noise Level 0 ~ 28 dBA Dimension 150 mm (W) x 86 mm (H) x 140 mm (D) Weight 2.25 kg Form factor ATX Certification 80 PLUS Platinum Other
Compatible with ATX12V v2.4
