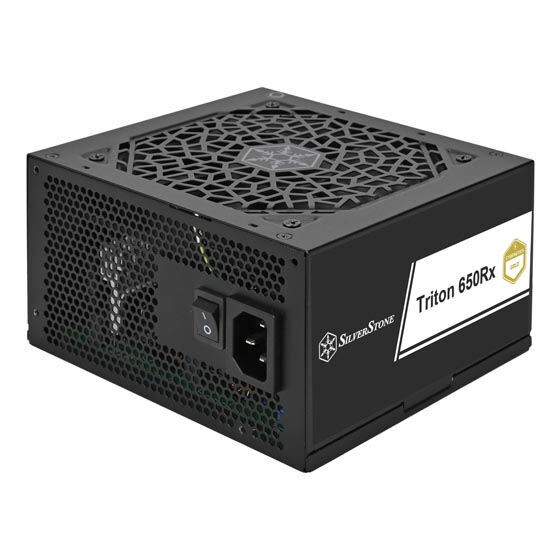

Supports 12V-2x6 PCIe connector with ATX 3.1 and PCIe Gen 5 standardLatest PCIe Gen 5 standard to support up to 2X power excursionSilent running 120mm ICB cooling fanBlack embossed cable designMain Japanese electrolytic capacitorsHigh efficiency with Cybenetics Gold certification24/7 continuous power output with 40℃ operating temperatureCompact design with a 140mm depth for easy integrationProduct No.SST-TR650R-GFModel (safety (lead-free paint)Max. DC Output650WPower density359.9W/LLoad RangeOutput +3.3V +5V +12V1 +5VSB -12VMax.(Amps) 18A 18A 54.1A 3.0A 0.3AMin.(Amps) 0A 0A 0A 0A 0ARange (%) ±5% ±5% ±5% ±5% ±10%Line Reg.(%) ±1% ±1% ±1% ±1% ±1%Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mVCombined +3.3V & +5V100WCombined +12V649WInput Voltage90 ~ 264 VrmsInput Frequency Range47Hz ~ 63HzPFCActive PFC（PF>0.9 at full load）Efficiency87% ~ 89% overall efficiencyMTBF100,000 hoursOperating temperature0°C ~ 40°CProtectionOver power protection
Over current protection
Over voltage protection
Short circuit protection
Under voltage protection
Over Temperature protectionConnectors1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
1 x 12+4-Pin 12V-2x6 connector
2 x 8 / 6-Pin PCIe connectors
6 x SATA connector
2 x 4-Pin Peripheral connectorCooling SystemSingle 120mm ICB bearing fanNoise Level18 dBA min.CertificationCybenetics GoldForm factorATX (PS2)Dimension150mm (W) x 86mm (H) x 140mm (D)5.91" (W) x 3.39" (H)
