* Note: AC 90-240V power adapter is included in carton package.

Product description

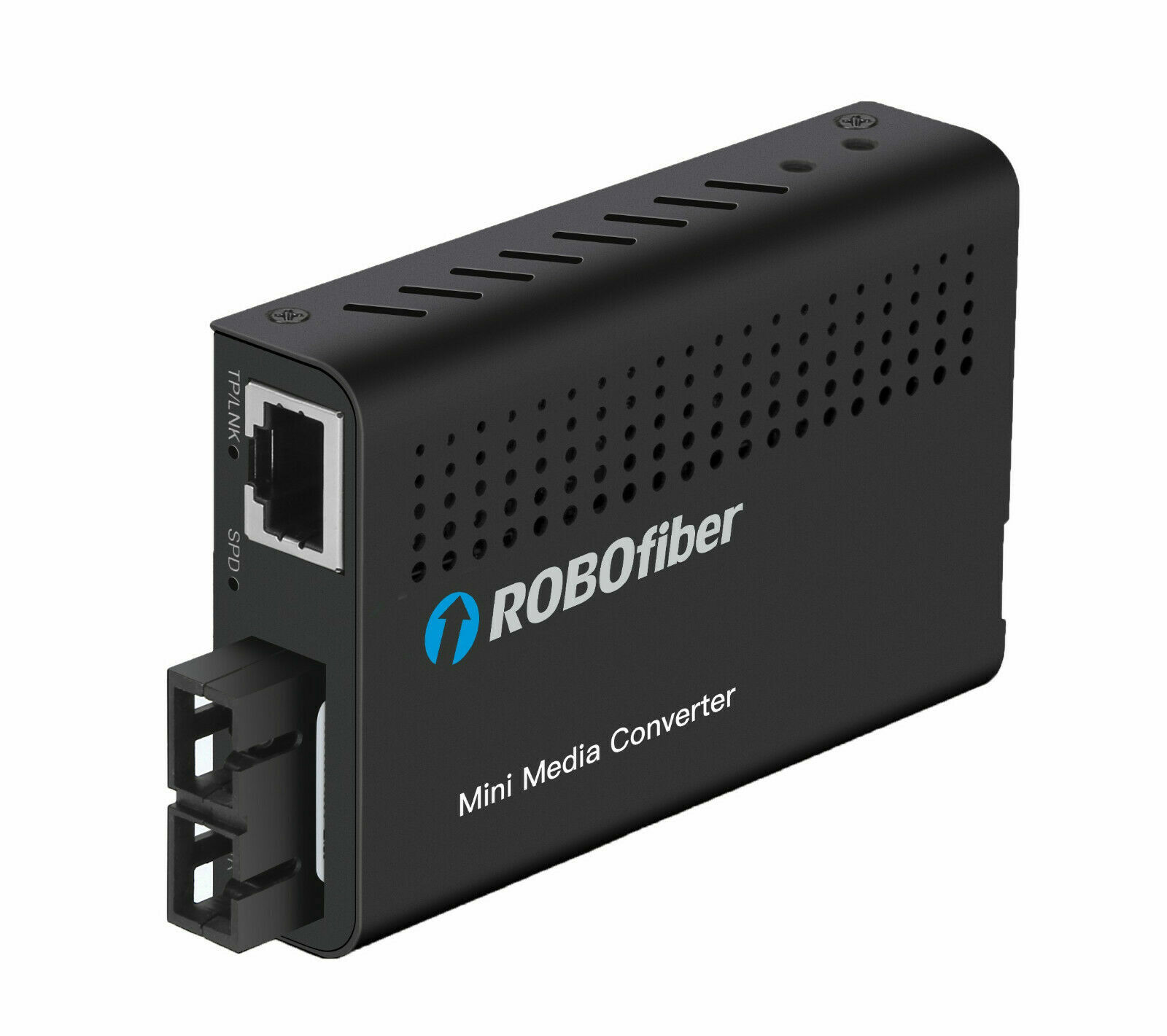

LFC series are newest series of media converters. The LFC-100-SC020 is a 10/100Base-Tx to 100Base-FX singlemode fiber, SC connector, 1310nm, 20Km reach optical port un-managed Fast Ethernet media converter. The RJ-45 copper port has auto-negotiation 10/100 and MDI/MDI-X features and DIP switch settings available for LFP function, converter-switch mode and speed and flow controls. LED indicators signal the power status of the converter, UTP port speed, UTP Link and FX port Link. Used with their compatible LFC-CH12 fiber optic chassis they can be aggregated up to 12 units in a 19" wide and only 1RU of height space only. This is the highest density attainable for unmanaged fiber media converters.

The LFC-100-SC020 Fast Ethernet converter is a cost effective fiber media converter. It also offers the optional wall mounting solution for individual converters named to 100Base-FX media MDI/MDIX

Forward 2048 bytes (Max.) packets in switch mode

Forward 9k bytes in converter mode (fiber & copper port at the same speed, transparent)

Provides DIP switch to set function

• Select UTP speed (10/100M)
• Select LPF enable / disable
• Converter mode enable / disable
• Select Half/Full Duplex flow

Supports Q in Q double tagged frame transparent

Supports IEEE 802.1Q Tag VLAN pass thru

Aggregates into LFC-CH12 series chassis available with various power supplies

Technical specifications

Copper interface:RJ45 copper IEEE 802.3 10Base-T and 802.3u 100Base-TX compliantOptical interface:100Base-FX, SMF, SC duplex, 1310nm, 20Km reachEthernet interface:Supports 10/100BaseTX, Full, Half duplex n-way (Auto-Negotiation). Supports Full, Half duplex, 10/100 speed manual selection. Transmission Packet Rate for 10/100Base-TX : 14880 per second /148800 per second. Copper TP cable 4 pair Cat. 5, 5e UTPOptical connector:SC duplex connectorFront LEDs:PWR, Fiber Link, TP Link, SpeedPower:External 90-260V AC switching adapter 12VDC@1A with NEMA1-15(2 blades only), US type main plug
AC 90-240V power adapter is included in carton packageTemperature:0~50°C (Operating); -30~70°C (Storage)Humidity:10-85% non condensing (Operating); 0-90% (Storage)Consumption:less than 4WDimensions(WxDxH):60mm x 90mm x 20mmWeight:180g (without AC adapter)Compliance:FCC part 15, Subpart B, Class A, ANSI C63.4:2003 CE EN55022:2006, Class A EN55024:1998+A1:2001+A2:2003 LVD: EN 60 950-1:2001MTBF:65,000 hours

Additional information on LFC-100-SC020 converter: PDF Datasheet; PDF Installation Manual.
