-Introduction-
NanoKVM-PCIe is a new form factor of NanoKVM, featuring an integrated PCIe bracket for secure mounting inside the chassis, delivering an enhanced experience for desktop users.
Building upon the NanoKVM-Cube, NanoKVM-PCIe adds optional WiFi and PoE functionality (available as optional features); It features a PCIe slot for power delivery from the motherboard's PCIe interface. Additionally, its wired Ethernet (ETH) connection offers enhanced stability, meeting more professional requirements. Both NanoKVM-Cube and NanoKVM-PCIe share the same image and application suite, automatically adapting to different hardware versions.
The NanoKVM series includes an HDMI input port that can be recognized by the computer as a monitor to capture the computer's display. A USB 2.0 port connects to the host computer, functioning as a HID device (e.g., keyboard, , touchpad), while utilizing spare TF card storage space to mount as a USB drive. All models include a standard 100Mbps Ethernet port for network transmission of video and control signals. The PCIe version features a standard 0.49-inch OLED display showing real-time status information, WiFi configuration details, and more.
Note: The NanoKVM PCIe version draws power exclusively from the PCIe interface and cannot function as a graphics card/display device directly receiving images from PCIe.
To meet diverse user needs, the NanoKVM-PCIe offers optional modules—WiFi and PoE—which can be freely combined.
-Use Cases-
- Server Management: Enables real-time server monitoring, status retrieval, and control operations.
- Remote Desktop & Power Management: NanoKVM eliminates dependency on network connectivity or host software, functioning as external hardware to deliver direct remote control capabilities.
- Remote System Installation: NanoKVM emulates a USB drive to mount installation images for OS deployment or access BIOS settings;
- Remote Serial Port: NanoKVM exposes serial ports for IPMI integration or web-based serial terminal interaction with development boards. Users may also expand with additional accessories;
- Dual-Computer Collaborative Operation

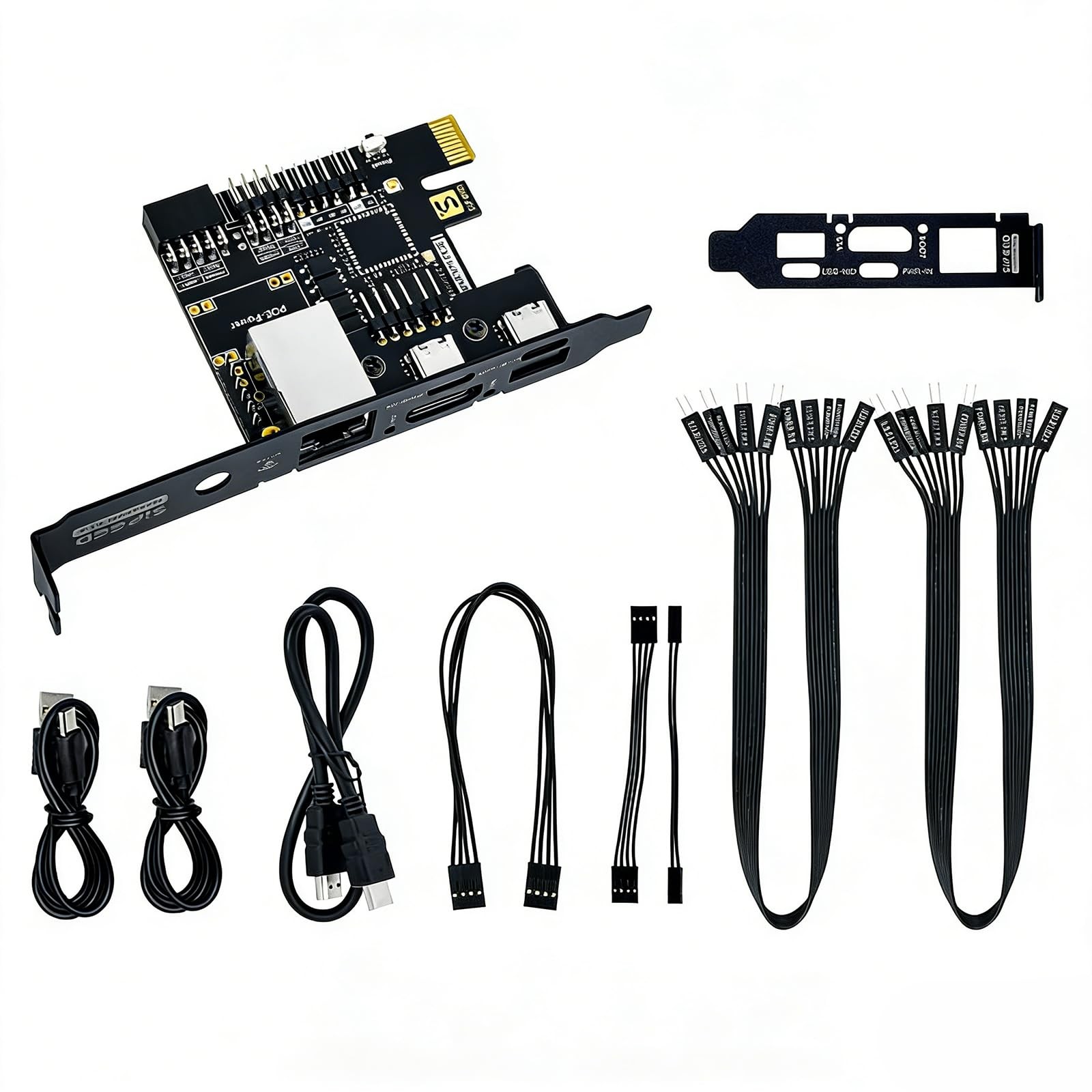

【Remote Control Operations Server】Sipeed NanoKVM-PCIe is an IP-KVM solution based on the LicheeRV Nano RISC-V Linux single-board computer, inheriting the Nano's ultra-compact form factor and powerful capabilities. NanoKVM-PCIe represents an evolved form of NanoKVM, featuring an integrated PCIe bracket for secure mounting inside chassis, delivering an enhanced experience for desktop users.
【Meeting Diverse Needs】Based on the NanoKVM Cube IP-KVM architecture, Sipeed NanoKVM-PCIe adds optional WiFi and PoE functionality (available as optional features). It features a PCIe slot for power delivery from the motherboard's PCIe bus. Additionally, its wired Ethernet (ETH) connection offers enhanced stability for professional applications. To meet diverse user requirements, the NanoKVM-PCIe provides dual optional modules for WiFi and PoE, supporting flexible combinations.
【Robust Connectivity】 Sipeed NanoKVM-PCIe incorporates an HDMI input port, which can be recognized by the computer as a monitor to capture the display screen. USB 2.0 port connects to the computer host, functioning as a HID device (keyboard, , touchpad), while simultaneously utilizing TF card storage space to mount as a USB drive.
【100Mbps Ethernet Support】Sipeed NanoKVM-PCIe features a 100Mbps Ethernet port for network transmission of video and control signals. The PCIe version of NanoKVM comes standard with a 0.49-inch OLED display, showing real-time status information, WiFi configuration details, and more.
【Server Management】Sipeed NanoKVM-PCIe enables real-time monitoring and control of server operation. Supports remote desktop access and host power cycling: NanoKVM overcomes limitations requiring the host to be networked or specific system software, functioning as external hardware to provide direct remote control capabilities.
【Supports Remote Installation】Sipeed NanoKVM-PCIe emulates a USB flash drive device, enabling mounting of installation images for system deployment or access to computer BIOS settings. NanoKVM Lite features serial ports for use with IPMI or connection to other development boards via web-based serial terminal interaction. Users may also expand functionality with additional accessories.
