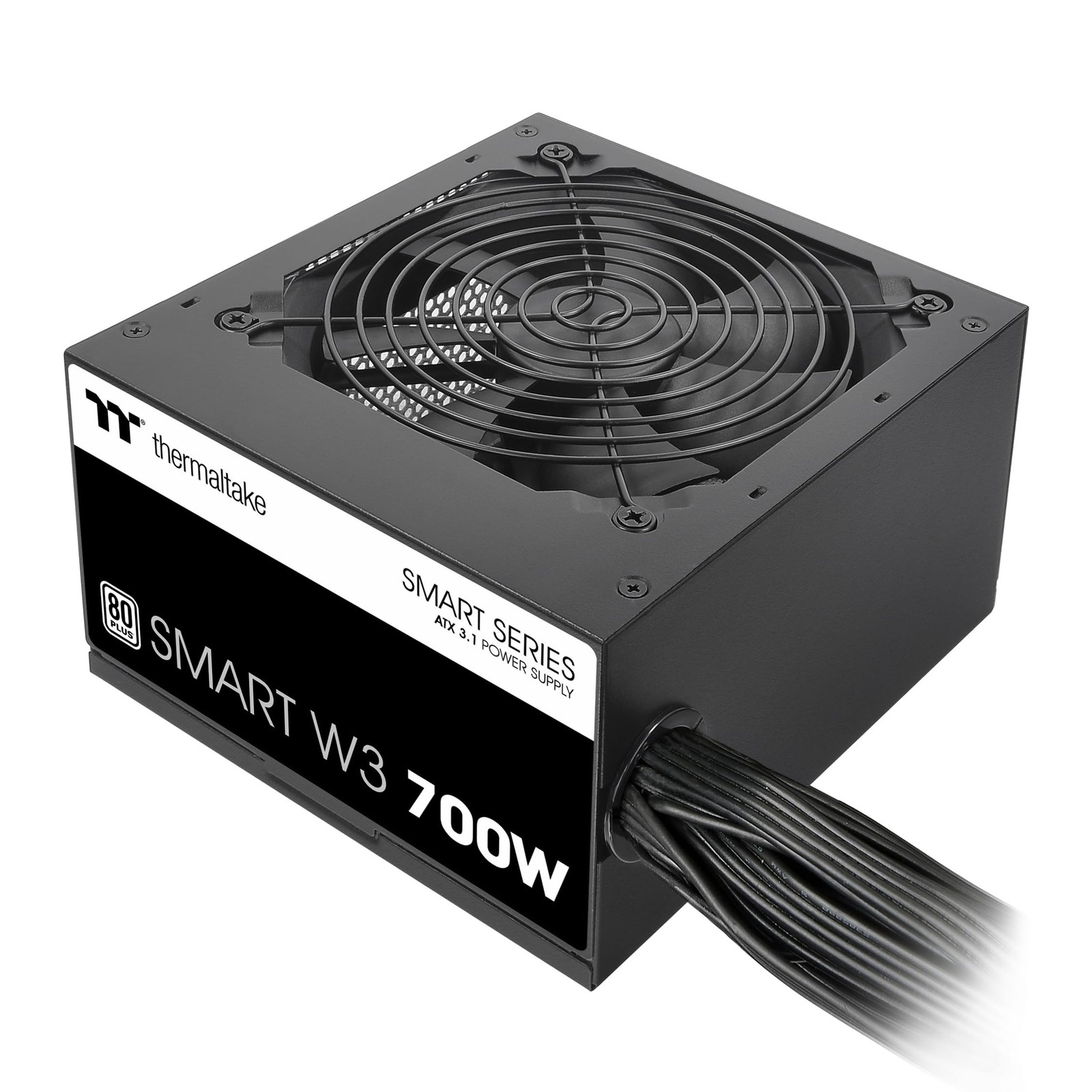

Smart W3 Series 80Plus Certified 700W Power Supply; ATX v3.1 Spec; 120mm FDB Fan; 5 Year Warranty; PS-SPW-0700NNFAWU-1
Product Details Color: Black
Size: 700W
Style: 80+ White (ATX 3.1)
Brand: Thermaltake
MPN: PS-SPW-0700NNFAWU-1
UPC: 841163094525
EAN: 0841163094525

• Model Name: Smart W3 Series
• Brand: Thermaltake
• Compatible Devices: PC
• Connector Type: ATX, Molex, PCI Express, SATA
• Output Wattage: 700
• Form Factor: ATX
• Wattage: 700 watts
• Cooling Method: Air
• Item dimensions L x W x H: 5.5 x 5.9 x 3.4 inches
• Item Weight: 4.3 Pounds
• Compatible Devices: PC
• Connector Type Used on Cable: ATX, Molex, PCI Express, SATA
• Output Wattage: 700
• Form Factor: ATX
• Wattage: 700 watts
• Cooling Method: Air
• Power Supply Design: Non-Modular
• Current Rating: 12 Amps
• Number of Fans: 1
• Fan Size: 120 Millimeters
• Maximum Input Voltage: 240 Volts (AC)
• Minimum Input Voltage: 115 Volts
• System Bus Connector Type: 24 Pin
• EU Spare Part Availability Duration: 5 Years
• Model Name: Smart W3 Series
• Brand: Thermaltake
• Manufacturer: Thermaltake
• UPC: 841163094525
• Mfr Part Number: PS-SPW-0700NNFAWU-1
• Model Number: SP3-700AH2NLW
• Warranty Description: 5 Year Manufacturer
• Unit Count: 1.0 Count
• Item Dimensions: 5.5 x 5.9 x 3.4 inches
• Item Weight: 4.3 Pounds

• Fully compatible with Intel ATX v3.1 specification.
• 80PLUS certified up to 80% efficiency.
• DC to DC high amperage +12V rail design.
• Low-profile flat black cable; 120mm FDB cooling fan.
• Built in Industrial grade protection with 5-year warranty.

The Smart W3 series is certified by 80 PLUS efficiency and designed to meetATX 3.1 standards, offering 500W, 600W, and 700W options. It's perfect forbudget-conscious users seeking an efficient and reliable entry-level powersupply, backed by a solid 5-year warranty. Ultra-quiet 120mm cooling fandelivers excellent airflow at an exceptionally low noise level. •P/N:P223S-SPW-0700NNFAWU-1 •Model: SP3-700AH2NLW •Type: Analog •Watts: 700W•Color: Black •Dimensions: 150mm(W)x86mm(H)x140mm(D) •PFC (Power FactorCorrection): Active PFC •Power Good Signal: 100-150 msec •Hold Up Time: 17msecat 80% load •Input Current: 12A - 6A •Input Frequency Range: 50Hz/60Hz •InputVoltage: 100-240V～ •Operating Temperture: 5°C to + 40°C •Operating Humidity:20% to 85% •Storage Temperture: -40°C to + 55°C •Storage Humidity: 10% to 95%•Cooling System: 12cm FDB Fan •Efficiency: Meet 80 PLUS® at 115Vac input.•MTBF: 100 •Safety Approval: CB/FCC/cTUVus/ICES/UKCA/CE/LVD/RCM •PCI-E 6+2PIN:2 •Protection: OCP/OVP/UVP/OPP/OTP/SCP
