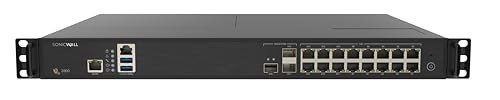

SonicWall NSa 2800 Network Security/Firewall Appliance (03-ssc-4692) SonicWall NSa 2800 Network Security/Firewall Appliance (03-ssc-4692)Certifications & Standards: FCC Class A ICES Class A CE (EMC, LVD) UL cUL Mexico DGN Notice by UL ANATEL SCIP RCM MIC Terminal VCCI Class A KCC/MSIP BSMI MTCTE/TEC CB

Additional Information: Operating system - SonicOS 8 Interfaces - 16x 1GbE, 3 x 10/5/2.5/1G SFP/SFP+, 2 x USB (type-A), 1 Console, 1 Mgmt. port Storage/(Expansion) - 128 GB (Up to 512 GB) Centralized Management Network Security Manager (NSM) 3.0 and above, CLI, SSH, Web UI, REST APIs Logical VLAN and tunnel interfaces (maximum) - 256 SAML Single Sign-On Users - 40,000 Access points supported (maximum) - 512 Firewall inspection throughput - 8 Gbps Threat Prevention throughput - 6 Gbps Application inspection throughput - 7 Gbps IPS throughput - 7 Gbps Anti-malware inspection throughput - 6 Gbps TLS/SSL inspection and decryption throughput - 1.8 Gbps IPSec VPN throughput - 5.5 Gbps Connections per second - 50,000 Maximum Connections (SPI) - 2,000,000 Maximum connections (DPI) - 1,000,000 Maximum connections (TLS) - 150,000 Site-to-site VPN tunnels - 2,000 IPSec VPN clients (max) - 50 (1,000) SSL-VPN licenses (max) - 2 (500) Encryption/Authentication - DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography Key exchange Diffie Hellman Groups - 1, 2, 5, 14v Route-based - VPN RIP, OSPF, BGP Certificate support - Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft, CA for SonicWall-to-SonicWall VPN, SCEP VPN features - Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant, VPN Gateway, Route-based VPN Global VPN client platforms supported - Microsoft® Windows 7, Windows 8, Windows 8.1 and Windows 10 NetExtender - Microsoft® Windows 10, Windows 10/11 and Linux Mobile Connect - Apple® iOS, Mac OS X, Google® Android™, Chrome OS, Windows IP address assignment - Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay NAT modes - 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode Routing protocols - BGP, OSPF, RIPv1/v2, static routes, policy-based routing QoS - Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM) Authentication - LDAP (multiple domains), XAUTH/RADIUS, TACACS+, SAML SSO1, Radius accounting NTLM, internal user database, 2FA, Terminal Services, Citrix, Common Access Card (CAC) VoIP - Full H323-v1-5, SIP Standards - TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3 Certifications - IPv6/USGv6 Form factor - 1U Rack-mountable Power supply (W) - 90 Input power (AC): 100-240 VAC, 50-60 Hz Total heat dissipation (BTU) - 180.01 WEEE weight (kg) - 4.8 Environment (Operating/Storage): 0°C to +40°C / -40°C to +70°C Humidity: 5-95% non-condensing

Application/Usage:

Environmental Compliance:

Waste Electrical and Electronic Equipment Directive (WEEE)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)

Product Description

This item is brand-new, factory sealed.

SonicWall latest mid-range next-gen firewalls, Network Security Appliance (NSa) 2800 and 3800 offer medium and large enterprises industry-leading threat prevention performance at the lowest total cost of ownership in their class. The firewalls are the cornerstones of the threat protection solution that includes simplified centralized firewall management, Zero Trust enablement, flexible licensing with an option of managed firewall services, and an embedded cyber warranty for risk mitigation.

The Gen 8 firewalls deliver comprehensive security features such as intrusion prevention, VPN, application control, malware analysis, URL filtering, DNS Security, Geo-IP and Bot-net services, protecting the perimeter from advanced threats without becoming a bottleneck

Gen 8 NSa firewalls drives strong security with a comprehensive solution encompassing of threat protection, centralized management, reporting and analytics, security and managed service options, Secure Service Edge (SSE) integration, and cyber warranty

Hardware

NSa 2800 and 3800, built with the latest hardware components, deliver multi-gigabit threat prevention throughput - even for encrypted traffic. Featuring a high port density, including multiple 10 GbE, the firewall solutions support network and hardware redundancy with high availability and dual power supplies.

Architecture

The Gen 8 NSa Series runs on SonicOS 8, a new operating system that delivers a modern user interface, intuitive workflows and user-first design principles. SonicOS 8 provides multiple features designed to facilitate enterprise level workflows. It offers easy policy configuration, zero-touch deployment and flexible management - all of which allow enterprises to improve both their security and operational efficiency

NSa 2800 and 3800 support advanced networking features, such as SD-WAN, dynamic routing, layer 4-7 high availability and high-speed VPN functionality. In addition to integrating firewall and switch capabilities, the appliance provides a single-pane-of-glass interface to manage both switches and access points.

Threat Protection and Security Services

Built to mitigate the advanced cyberattacks of today and tomorrow, the Gen 8 NSa Series offers access to SonicWall's advanced firewall security services, allowing you to protect your entire IT infrastructure. Solutions and services such as Cloud Application Security, Capture Advanced Threat Protection (ATP) cloud-based sandboxing, patented Real-Time Deep Memory Inspection (RTDMI™) and Reassembly-Free Deep Packet Inspection (RFDPI) - for all traffic including TLS 1.3 - offer comprehensive gateway protection from most stealthy and dangerous malware, including zero-day and encrypted threats.

Flexible licensing includes Hardware Only, Essential, Advanced and Managed Protection Security Suite (MPSS) to meet your unique needs. MPSS augments resources with managed services for firewalls

A Cloud Secure Edge Connector integration provides secure access to their private applications behind the firewalls. Users and devices can adhere to a Zero-Trust framework for application access

Cyber Warranty

An embedded cyber warranty is offered as part of your security services to mitigate costs of security breach, meet compliance requirements and promote peace of mind.

SpecificationManagement & ProtocolsManageableYesPower DescriptionFrequency

• 50 Hz
• 60 Hz

Power Consumption52.80 WPhysical CharacteristicsForm FactorRack-mountableWeight (Approximate)10.14 lbHeight1.8"Compatible Rack Number of Ports16USBYesNumber of Network (RJ-45) Ports16I/O ExpansionsTotal Number of Expansion Slots3Expansion Slot Type

• Expansion Slot
• SFP+
• SFP (mini-GBIC)

Number of SFP+ Slots3General InformationBrand NameSonicWallMarketing Information SonicWall's latest mid-range next-gen firewalls, Network Security Appliance (NSa) Series, offers medium and large enterprises industry-leading threat prevention performance at the lowest total cost of ownership in their class. The firewalls are the cornerstones of the threat protection solution that includes simplified centralized firewall management, Zero Trust enablement, flexible licensing with an option of managed firewall services, and an embedded cyber warranty for risk mitigation. The Gen 8 firewalls deliver comprehensive security features such as intrusion prevention, VPN, application control, malware analysis, URL filtering, DNS Security, GeoIP and Botnet services, protecting the perimeter from advanced threats without becoming a bottleneck. Gen 8 NSa firewalls drive strong security with a comprehensive solution encompassing of threat protection, centralized management, reporting and analytics, security and managed service options, Secure Service Edge (SSE) integration, and cyber warranty Hardware Gen 8 NSa Series, built with the latest hardware components, delivers multi-gigabit threat prevention throughput - even for encrypted traffic. Featuring a high port density, the firewall solutions support network and hardware redundancy with high availability and dual power adapters including one for redundancy. Architecture The Gen 8 NSa Series runs on SonicOS 8, a new operating system that delivers a modern user interface, intuitive workflows and user-first design principles. SonicOS 8 provides multiple features designed to facilitate enterpriselevel workflows. It offers easy policy configuration, zero-touch deployment and flexible management - all of which allow enterprises to improve both their security and operational efficiency The NSa Series supports advanced networking features, such as SD-WAN, dynamic routing, layer 4-7 high availability and high-speed VPN functionality. In addition to integrating firewall and switch capabilities, the appliances provide a single-paneof-glass interface to manage both switches and access points. Threat Protection and Security Services Built to mitigate the advanced cyberattacks of today and tomorrow, the Gen 8 NSa Series offers access to SonicWall's advanced firewall security services, allowing you to protect your entire IT infrastructure. Solutions and services such as Capture Advanced Threat Protection (ATP) cloud-based sandboxing, patented Real-Time Deep Memory Inspection (RTDMI™) and Reassembly-Free Deep Packet Inspection (RFDPI) - for all traffic including TLS 1.3 - offer comprehensive gateway protection from most stealthy and dangerous malware, including zero-day and encrypted threats. Simplified licensing includes Hardware Only, Advanced (APSS) and Managed Protection Security Suite (MPSS) to meet your unique needs. MPSS augments resources with managed services for firewalls. A Cloud Secure Edge Connector integration provides secure access to their private applications behind the firewalls. Users and devices can adhere to a Zero-Trust framework for application access. Cyber Warranty An embedded cyber warranty is offered as part of your security services to mitigate costs of security breach, meet compliance requirements and promote peace of mind. More from the Manufacturer Product TypeNetwork Security/Firewall ApplianceProduct NameNSa 2800 Network Security/Firewall ApplianceManufacturerSonicWall Inc.Manufacturer Part Number03-SSC-4692Product ModelNSa 2800Product SeriesNSaMedia & PerformanceVPN Throughput704 MB/sIPS Throughput896 MB/sTitleProduct TitleSonicWall NSA 2800 HIGH AVAILABILITY (03SSC4692)Network & CommunicationEthernet Technology

• 10 Gigabit Ethernet
• 5 Gigabit Ethernet
• 2.5 Gigabit Ethernet
• Gigabit Ethernet

Technical ManagementNew Connections Per Second50000Number of VPN Supported1000Data Link Protocols

• Threat Protection
• Zero Trust Network Access (ZTNA)
• Intrusion Prevention
• Application Control
• Malware Protection
• URL Filtering
• DNS Security
• Content Filtering
• Cloud Sandboxing
• Real-Time Deep Memory Inspection (RTDMI)
• Reassembly-free Deep Packet Inspection
• Malicious Traffic
• SSL Inspection
• SSL Decryption
• TLS Decryption
• TLS Inspection
• Dead Peer Inspection
• Distributed Denial of Service (DDoS)
• Botnet Filtering
• Web Content Filtering

Firewall Throughput8 Gbit/sEncryption Standard

• TLS
• TLS (128-bit)
• AES (192-bit)
• AES TechnologyWired Shipping
