Sonicwall 01-SSC-6942 TZ105  Secure Firewall Appliance
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

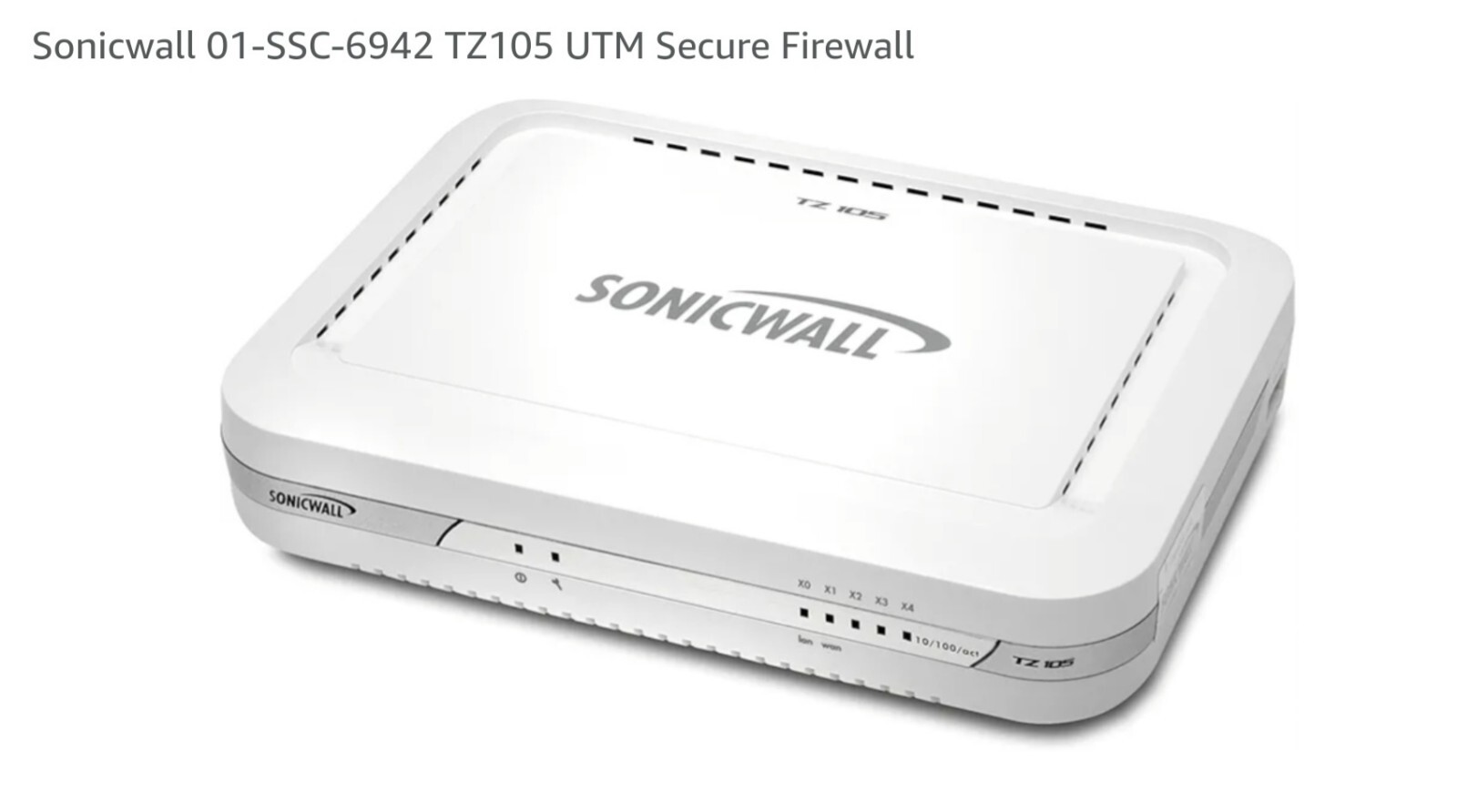

Sonicwall 01-SSC-6942 TZ105 Secure Firewall Appliance
Price: US $90.00
  • Firewall Protection: Remote Access Authentication, Content Filtering, Malware Protection, URL Filtering, Web Content Filtering, Deep Inspection Firewall, Reassembly-free Deep Packet Inspection, and

  • Firewall Protection (continued): Gateway Antivirus, Anti-spyware, Denial of Service (DoS), Distributed Denial of Service (DDoS), Egress Filtering, Cookies Blocking, Dead Peer Detection

Encryption Standard: DES, 3DES, AES (142-bit), AES (128-bit), AES (256-bit), SHA-1, MD5 Intrusion Prevention, NAT, PAT, IPSec NAT Traversal, 5 Network (RJ-45) Ports, Fast Ethernet, 10/100Base-TX


  • Virtualization: 8000 x Maximum UTM/DPI Connections, 8000 x Maximum Connections, 1000 x New Connections/Sec, 1 x SonicPoints Supported, 5 x Site-to-Site VPN Tunnels, 5 x VLANS

  • USB Port, AC Adapter (Power Source) 12 V DC, Management Port, 32 MB Flash Memory, 256 MB Standard Memory, Secure Digital (SD) Card , Height: 1.4", Width: 7.5", Depth: 5.6

  • Mfr Part style="margin-top:0; margin-bottom:0;">
  • Alt Part Number:   01-SSC-6942


  • Technical Description

  • Processors Installed:  500 MHz

  • RAM Memory:  256 MB

  • Flash Memory:  32 MB

  • Data Link Protocol:  Ethernet, Fast Ethernet

  • Network Ports:  5x Fast Ethernet RJ-45

  • Management Ports:  1x RJ-45 Serial Console, 1x USB


  • Network / Transport Protocol:  TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP

  • Routing Protocol:  OSPF, RIP-1, RIP-2, static IP routing, policy-based routing (PBR)

  • Remote Management Protocol:  SNMP 3, HTTP, HTTPS, CLI

  • Power Consumption Operational:  5.2 Watt

  • Power Input:  100 to 240 VAC, 50-60 Hz, 1 A

  • Min Operating Temperature:  32 °F

  • Max Operating Temperature:  104 °F

  • Humidity Range Operating:  5 - 95% (non-condensing)

  • Output Voltage:  208 - 230 V AC


  • Width:  7.6 in

  • Depth:  5.6 in

  • Height:  1.4 in

  • Firewall style="margin-top:0; margin-bottom:0;">
  • Content Filtering

  • Cookies Blocking

  • Dead Peer Detection

  • Deep Inspection Firewall

  • Denial of Service (DoS)

  • Distributed Denial of Service (DDoS)

  • Egress Filtering

  • Gateway Antivirus

  • Malware Protection
