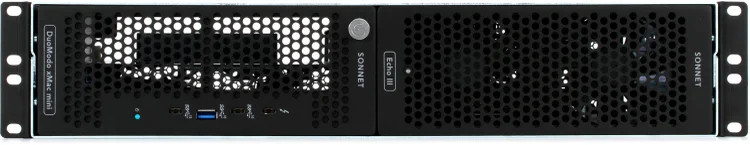

Sonnet Technologies DuoModo xMac mini/Echo III Rackmount System

Price: US $1731.03

Connect PCIe Cards to Your Thunderbolt 3-equipped Computer and Expand Storage
Today's laptop, mini desktop, and all-in-one computers pack tons of power. In fact, they're more powerful than the full-sized towers of yesteryear. To top it off, thanks to modern Thunderbolt connectivity, today's computers support a vast array of peripherals with blazing-fast speeds. But what's missing are PCIe expansion slots and extra storage — must-have features for creative professionals. That's where the Sonnet Technologies DuoModo xMac mini/Echo III Rackmount System comes in. This cutting-edge Dual-module enclosure features an Echo III Module that allows for the connection of three full-length PCIe cards to your Thunderbolt 3-equipped computer, and an xMac mini Module that provides the ultimate Mac mini upgrade with NVMe storage expansion and additional peripheral connection ports. If you've been eyeing a high-powered portable computer, but don't want to part with your PCIe-based rig, the DuoModo Rackmount System is the Sweetwater is an Authorized Sonnet Technologies Dealer

Genuine Open Box Item
Sweetwater's 2-year warranty*

Sonnet Technologies DuoModo xMac mini/Echo III Rackmount System Thunderbolt 3 Expansion System with 3 PCIe Slots and Enclosure for Intel or M1 Mac Mini Connect PCIe Cards to Your Thunderbolt 3-equipped Computer and Expand Storage

Today's laptop, mini desktop, and all-in-one computers pack tons of power. In fact, they're more powerful than the full-sized towers of yesteryear. To top it off, thanks to modern Thunderbolt connectivity, today's computers support a vast array of peripherals with blazing-fast speeds. But what's missing are PCIe expansion slots and extra storage — must-have features for creative professionals. That's where the Sonnet Technologies DuoModo xMac mini/Echo III Rackmount System comes in. This cutting-edge Dual-module enclosure features an Echo III Module that allows for the connection of three full-length PCIe cards to your Thunderbolt 3-equipped computer, and an xMac mini Module that provides the ultimate Mac mini upgrade with NVMe storage expansion and additional peripheral connection ports. If you've been eyeing a high-powered portable computer, but don't want to part with your PCIe-based rig, the DuoModo Rackmount System is the perfect solution.

Easy expansion via a single Thunderbolt 3 port

The Echo III Module makes expanding your computer a breeze. Simply plug it into one of your machine's Thunderbolt 3 ports, and you'll benefit from 2750 MB/s of PCIe bandwidth. The Echo III accommodates three full-height, single-width cards, or one double-width card plus one single-width card. At Sweetwater, we've found that this expansion system supports every Thunderbolt 3-compatible, non-GPU card — including Avid HDX. The Echo III Module is also integrated with a 400-watt power supply that includes 75 watt of auxiliary power, and saves energy by automatically powering on and off with your computer. This system's dual temperature-controlled, variable-speed Noctua fans are rated at 17dBA for whisper-quiet cooling. A rugged steel housing rounds out the DuoModo's impressive design.

The latest generation of Mac mini and iMac Pro computers are multi-core powerhouses. They boast all the power your hungry Pro Tools sessions need. Unfortunately, they lack PCIe ports. In the past, this would make them unsuitable for Pro Tools HDX systems. But now, thanks to the Sonnet Technologies DuoModo xMac mini/Echo III Rackmount System, any computer with a Thunderbolt 3 port is fair game. The Echo III Module supports up to three HDX PCIe cards, and it has been tested and qualified for use with Avid Pro Tools.

Sonnet Technologies DuoModo Echo III Module Features:

40 Gbps Thunderbolt 3 interface delivers 2750 MB/s of PCIe bandwidth
Universal support for all Thunderbolt 3-compatible, non-GPU PCIe cards
Tested and qualified for use with Avid Pro Tools
Integrated 400W power supply includes 75W of auxiliary power and automatic on/off feature
Dual temperature-controlled, variable-speed Noctua fans yield whisper-quiet cooling
2 Thunderbolt 3 ports
Works with Apple M1, Thunderbolt 3, and Thunderbolt 4 computers
Rugged steel housing for maximum durability
Includes power cable and a 27.6-inch Thunderbolt 3 cable with ThunderLok retainer clip

Ultimate upgrade for storage expansion and additional ports

Connect your Mac mini to this module that will enhance storage, provide SSD sockets and front panels ports, and add internal connections to expand your desktop's speed and functionality. The enclosure securely mounts the Mac mini and features four front panel connections with one passthrough 40 Gbps Thunderbolt port, plus two Type-C USB ports and one Type-A 10 Gbps USB port. As for internal connections, the xMac mini Module includes two M.2 NVMe SSD sockets, an internal USB 3.2 Type-A port, and an internal Thunderbolt 3 port that connects the dock to the Mac mini. And with a temperature-controlled, ultra-quiet fan, seamless operation is the name of the game for the xMac mini Module.

Sonnet Technologies DuoModo xMac mini Module Features:

1 passthrough 40 Gbps Thunderbolt 3 storage dock
2 Type-C 10 Gbps USB 3.2 ports
1 Type-A 10 Gbps USB 3.2 port
Holds an Intel or M1 Mac mini (sold separately)
2 M.2 NVMe SSD sockets for adding up to 16TB of SSDs (SSDs sold separately)
1 Internal 10Gbps USB 3.2 Type-A port connects to iLok USB-A, thumb drive, or bus-powered USB storage drive
Temperature-controlled fan provides quiet cooling
Comes with power cable and Thunderbolt 3 (40 Gbps) cable

SpecificationDetail Form Factor Rackmount Number of Ports 2 x SSD Sockets (xMac mini), 3 x PCIe Slots (Echo III) Connection Type 3 x Thunderbolt 3, 2 x USB-C, 2 x USB Type A, Compatibility Pro Tools HDX Power Source AC cable (included) Dimensions 19" x 16.5" x 3.5" RETURN INFORMATION We want you to be completely happy with your purchase from Sweetwater. If you are not satisfied with your product, you may return it for a refund of the purchase price within 30 days. If your purchase was eligible for Free Shipping, the shipping cost will be deducted from your credit or refund. Returns must be in the complete and original packaging with all accessories and complete documentation (Owner's Manual, warranty card, quick start guides, etc.), show no signs of wear or use, and include a Return Authorization number or be subject to a restocking fee. Fast, FREE Shipping!
