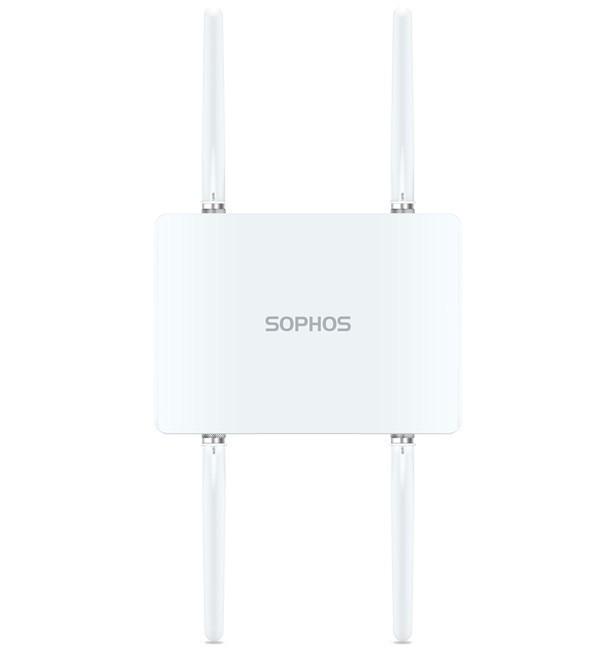

Sophos AP6 420X Wi-Fi 6 Access Point | 2.5G PoE+Sophos AP6 420X Wi-Fi 6 Access Point | 2.5G PoE+ Overview The Sophos AP6 420X is a Wi-Fi 6 access point designed for high-performance wireless networking and flexible deployment. It features dual-band 802.11ax Wi-Fi 6 connectivity with dedicated 2.4 GHz and 5 GHz radios, 2x2:2 wireless performance, and an integrated 2.5 Gigabit Ethernet interface with PoE+ support. External omnidirectional antennas support flexible coverage options, including 120° sector and 30° directional antennas. Key Features
- 802.11ax Wi-Fi 6 wireless standard.
- Dual-radio design with dedicated 2.4 GHz and 5 GHz radios.
- 2x2:2 wireless performance.
- 2.5 Gigabit Ethernet interface with 802.3at PoE+ support.
- External omnidirectional antenna design.
- Optional 120° sector and 30° directional antenna configurations.
- DFS support for compatible wireless channels.
- Maximum power consumption of 30 W.
- Can be managed through Sophos Fusion or the local web interface for individual AP6 access points.
- Designed for integration with the Sophos wireless and security ecosystem.
Specifications Brand Sophos Model AP6 420X Wireless Standard 802.11ax / Wi-Fi 6 Radios Dual Radio: 1x 2.4 GHz single-band, 1x 5 GHz single-band Wireless Performance 2x2:2 Antennas External omnidirectional Antenna Options 120° Sector, 30° Directional DFS Supported Ethernet Interface 1x 2.5 Gigabit Ethernet with PoE+ Power over Ethernet 802.3at PoE+ Maximum Power Consumption 30 W Management Sophos Fusion; local web interface for individual AP6 access points Dimensions (W x H x D) 260.5 x 69 x 180 mm (10.26 x 2.72 x 7.09 inches) Weight 1.6 kg Deployment Outdoor; pole/wall mount Certifications / Compliance CB, UL, CE, FCC, ISED, RCM, TEC, EN 60601-1-2 (Medical Equipment Directive)
