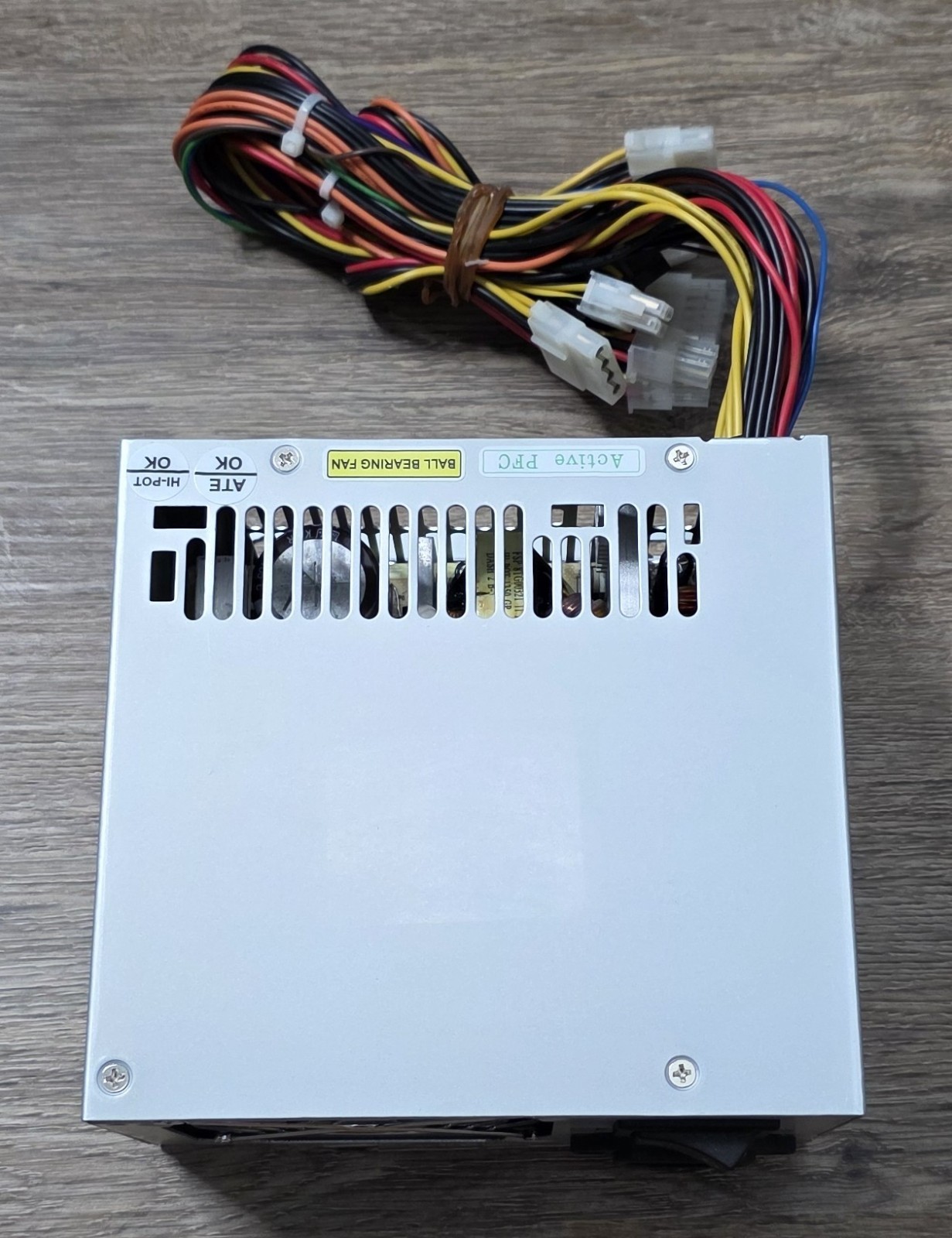

For sale is a Sparkle Power ATX 350W Power Supply.Model Number: SPI350PFB
Item is new, never been mounted or used.Will have some light scratching from laying in stock.
SPI350PFB (80PLUS, RoHS Compliant) 350 Watts ATX12V Switching Power Supply Features • Complied with ATX12V standard • Active Power Factor Correction (PFC) meet EN61000-3-2 • High efficiency and reliability • Compatible with European Union Directive 2002/95/EC (Restriction on Hazardous Substances). • Remote ON/OFF function • Internal 12V DC fan included • Noise Killer (thermal fan speed control function) • Low noise and ripple • Output over voltage, short circuit, and over current protection • 100% Hi-pot, ATE, and burn-in tested • Re-settable power shut down • Complies with FCC part 15 subpart J class B 115Vac operation, and CISPR 22 class B at 230Vac operation Approved by CUL/UL60950-1, TUV EN609 • report,FCC,EMC
Specification • Temperature Range:Operating: 0°C ~ +50°C on full load; storage & shipping: -20°C ~ +80°C • Humidity: 5-90% on operating,5-95% on storage • Dielectric Withstand:Primary frame ground 1800V AC for 1 second • Efficiency: 80% minimum, typical up to 87% • Rise time: Less than 20ms • Hold-up Time: 17ms minimum at nominal input voltage • Power Good Signal:Power on delay time 100 ~ 500ms, off delay 1ms minimum (TTL and CMOS compatible) • Leakage Current: Less than 3.5mA at 264Vac, 50Hz • MTBF: 100,000 hours on maximum load at +25°C • Dimensions (LxWxH): 140x150x86mm / 5.5x5.9x3.4inch
Input Characteristics Input Range: 90 ~ 264Vac (RMS), Full Range Input Frequency: 43 ~ 63Hz Input Current: Max 6A (RMS) @ 115Vac, 3A (RMS) @ 230Vac Inrush Current: No damage at cold start
Output Characteristics Output Voltage Minimum Load Normal Load Maximum Load Load Reg. Ripple & Noise +3.3V 0.3A 10A 20A ± 5% 50mV P-P +5V 0.5A 10A 20A ± 5% 50mV P-P +12V1 1.0A 8A 16A ± 5% 120mV P-P +12V2 1.0A 8A 16A ± 5% 100mV P-P-12V 0.0A 0.25A 0.5A ± 10% 120mV P-P +5Vsb 0.0A 1.25A 2.5A ± 5% 50mV P-P *+3.3V and +5V total output not exceed 150W * Total output for this subject power supply is 350W
