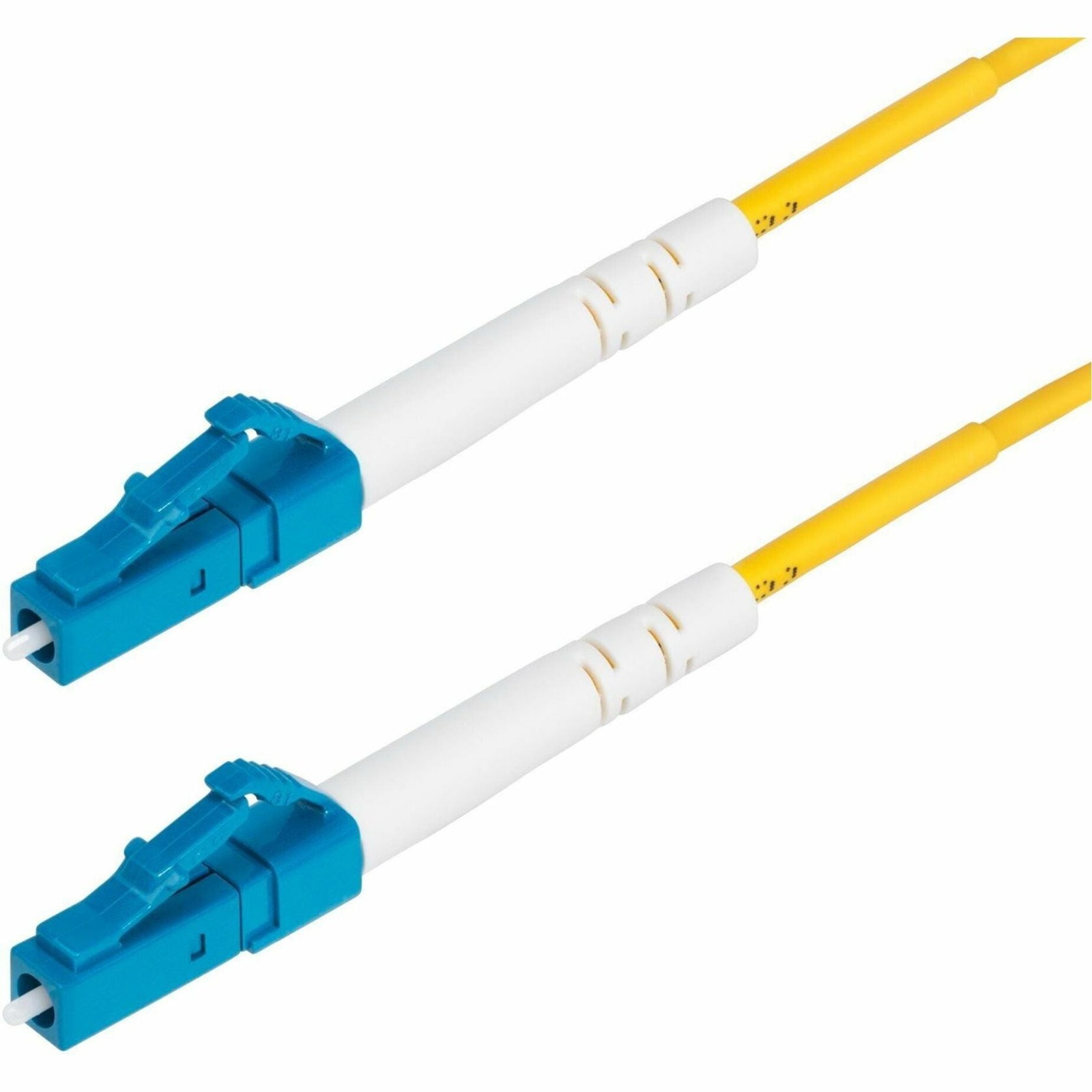

StarTech 5m [16.4ft] LC to LC [UPC] OS2 Single Mode Simplex Fiber Optic Cable StarTech 5m [16.4ft] LC to LC [UPC] OS2 Single Mode Simplex Fiber Optic Cable

International Customers: All electronic products are packaged for sale in the US with US voltage.

End of Life Manual Availability: Yes

WEEE Statement: RoHS Declaration URL: Certification: EU RoHS

Environmentally Friendly: Yes

REACH Declaration URL: free of SVHC: Yes

Environmental Compliance:

Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)

Product Description

This item is brand-new, factory sealed.

OS2 LC to LC Single Mode Simplex Fiber Optic Patch cable facilitates connectivity across 40G/100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long to single-fiber networking devices including simplex patch panels, SFP transceivers, and fiber NICs. This 9/125µm OS2 simplex single mode fiber patch cord is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.

Engineered for Optimal ceramic ferrules ensure accurate fiber alignment for an insertion loss below 0.3dB. Ultra Physical Contact (UPC)-polished LC to LC fiber ends greatly improve return loss characteristics over older PC polishing techniques. The Bend Insensitive fiber core is surrounded by a layer of low refractive index material. This material reduces the amount of light that can escape the fiber cable by reflecting the light back into the fiber. The OS2 fiber patch cord is engineered for low attenuation and performance that exceeds ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards.

LSZH Cable Jacket

Housed in a Low-Smoke Zero-Halogen (LSZH) flame-retardant jacket, the OS2 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.

Each OS2 fiber cable is individually tested for insertion loss performance and includes a test report, for guaranteed compatibility and 100% reliability.

SpecificationPhysical CharacteristicsProduct MaterialPolypropyleneProduct ColorYellowJacket MaterialLow Smoke Zero HalogenColor FamilyYellowWarrantyLimited WarrantyLifetimeGeneral InformationBrand Name
