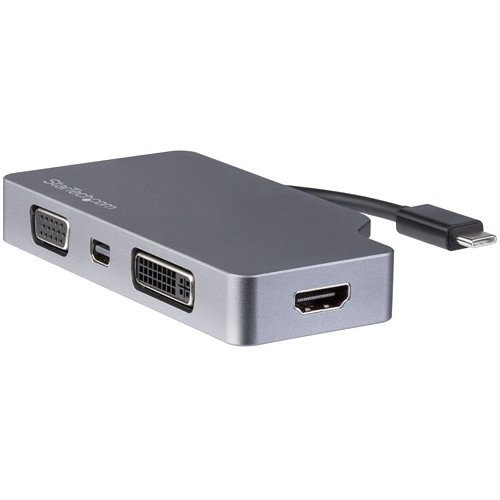

StarTech USB-C Multiport Video Adapter - Space Gray USB-C Adapter - 4-in-1 USB-C to VGA StarTech USB-C Multiport Video Adapter - Space Gray USB-C Adapter - 4-in-1 USB-C to VGA
International Customers: All electronic products are packaged for sale in the US with US voltage.
Environmentally Friendly: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: China
Product Description
This item is brand-new, factory sealed.
All-in-one video connectivity, with travel in mind
Avoid the hassle of carrying different adapters for different displays with this 4-in-1 USB-C video adapter. With VGA, DVI, HDMI and mDP output, you can connect your laptop to virtually any display. Its a convenient plug-and-play solution for travel or Bring Your Own Device (BYOD) applications, wherever you go.
The adapter features a built-in magnetic fastener that helps guide the breakout cable into place for quick and secure portability. With its durable aluminum enclosure, the adapter can withstand being carried around in any travel bag. Active or Passive Adapter
Active Adapter Style
AdaptersAV Input
USB Type-CAV Output
HDMI
DVI-D
VGA
Mini-DisplayPortChipset ID
Cypress - CYPD1120
Cypress - CY7C65210
Parade - PS8348B
Parade - PS171Audio Specifications
HDMI and mDP output - 7.1 surround soundMaximum Analog Resolutions
1920 x 1200 at 60HzMaximum Digital Resolutions
3840 x 2160 at 30HzSupported Resolutions
Max HDMI output: 3840 x 2160 at 30Hz
Max mDP output: 3840 x 2160 at 60Hz
HDMI and mDP output: 3840 x 2160, 2560 x 1600, 1920 x 1200, 1920 x 1080, 1280 x 720
DVI and VGA output: 1920 x 1200, 1920 x 1080, 1280 x 720Video Revision
DisplayPort 1.2Wide Screen Supported
YesConnector A
1 - USB-C (24 pin) DisplayPort Alt Mode Male InputConnector B
1 - Mini-DisplayPort (20 pin) Female Output
1 - VGA (15 pin, High Density D-Sub) Female Output
1 - DVI-D (25 pin) Female Output
1 - HDMI (19 pin) Female OutputNote
Only one video output is supported on the video adapter at a time, if multiple connections are made, only one of the outputs will functionHumidity
Storage: 5% to 90 % RH (no condensation)
Operating: 10% to 85 % RH (no condensation)Operating Temperature
0oC to 45oC (32oF to 113oF)Storage Temperature
-10oC to 70oC (14oF to 158oF)Cable Length
4.5 in (115 mm)Color
Space GrayEnclosure Type
Aluminum SpecificationPhysical CharacteristicsProduct MaterialAluminumWeight (Approximate)3.20 ozLength4.1"Product ColorSpace GrayHeight0.6"Color FamilyGrayWidth2.1"WarrantyLimited Warranty3 YearGeneral InformationBrand Name
