StarTech HDMI to RCA Converter Box with Audio - Composite Video Adapter - NTSC/PAL - 1080p - For Yellow StarTech HDMI to RCA Converter Box with Audio - Composite Video Adapter - NTSC/PAL - 1080p - For Yellow

International Customers: All electronic products are packaged for sale in the US with US voltage.

WEEE Statement: of Life Manual Availability: Yes

EU RoHS Declaration URL: Contents: HDMI to RCA Converter Box with Audio 1 x Universal Power Adapter (NA/JP, EU, UK, ANZ) 2 x Mounting Brackets 4 x Screws 1 x User Manual

Environmental Certification: EU RoHS

Environmentally Friendly: Yes

REACH Declaration URL: free of SVHC: Yes

Environmental Compliance:

Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin: China

Product Description

This item is brand-new, factory sealed.

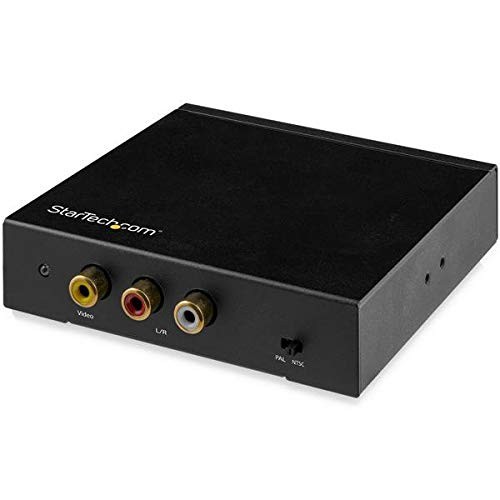

This HDMI to RCA converter box with audio converts a digital HDMI video source (with supporting audio) to work with analog RCA composite video televisions and displays, in both NTSC and PAL systems.
Uncompromised Quality
This HDMI to composite video converter provides features that ensure the highest quality output image, such as noise reduction, frame rate conversion and adaptive contrast enhancement.
With support for high-definition input resolutions up to 1080p, this RCA adapter lets you convert your HDMI signal to composite video and audio while still producing a crystal-clear picture.
Ultimate Convenience
This lightweight composite adapter is compact and highly portable, so you can use it virtually anywhere. Offering support for a wide range of HDTV and PC input resolutions, this versatile RCA converter is a perfect solution for using newer devices with your existing legacy displays.
The ability to convert and use your new HDMI equipped device with your older televisions or displays not only offers flexibility but also saves you the cost of upgrading hardware, making it extremely convenient for home or office applications.
Hassle-Free Setup
To ensure easy operation and installation, this unique RCA composite video converter allows for plug-and-play installation without any additional software or drivers.
HD2VID2 is backed by a 2-year warranty and free lifetime technical support.
Hardware
Active or Passive Adapter
Active
Audio
Yes
AV Input
HDMI
AV Output
Audio RCA
Composite
Industry Standards
Standard HDMI, DVI 1.0Performance
Audio Specifications
Input - LPCM 2Ch, 48kHz
Output - Stereo L/R
Supported Resolutions
Input
TV - 1080p, 720p, 576p, 480p at 60Hz
PC - 1920x1080, 1280x800, 1280x768, 1224x768, 800x600, 640x480 at 60Hz
Output
480i, 576pConnector(s)
Connector A
1 - HDMI (19 pin) Female Input
Connector B
1 - Composite Video (1 x RCA) Female Output
Input Connector(s)
1 - Stereo Audio (2 x RCA) Female OutputIndicators
LED Indicators
1 - Input LED
1 - Power LEDPower
Input Current
0.4 A
Input Voltage
100 - 240 AC
Output Current
2000 mA
Output Voltage
5 DC
Plug Type
M
Power Source
AC Adapter IncludedEnvironmental
Humidity
20-90% RH
Operating Temperature
0oC to 40oC (32oF to 104oF)
Storage Temperature
-20oC to 60oC (-4oF to 140oF)Physical Characteristics
Color
BlackWhats in the Box
Included in Package
1 - HDMI to Composite Converter
1 - Universal Power Adapter (NA/JP, EU, UK, ANZ)
2 - Mounting Brackets
4 - Screws
1 - User ManualItem Dimension (L"xW"xH")
9 x 8 x 3Weight
2 lbsWarranty Information
2 Year WarrantyPackage Contents:

• HDMI to RCA Converter Box with Audio
• 1 x Universal Power Adapter (NA/JP, EU, UK, ANZ)
• 2 x Mounting Brackets
• 4 x Screws
• 1 x User Manual

SpecificationPhysical CharacteristicsWeight (Approximate)0.49 lbProduct ColorBlackHeight1"Color Warranty2 YearInterfaces/PortsHDMIYesComposite VideoYesGeneral InformationBrand Name
