StarTech HDMI Extender over CAT6/5e with 3 Port Video Switch 4k 30Hz/115ft StarTech HDMI Extender over CAT6/5e with 3 Port Video Switch 4k 30Hz/115ft
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: HDMI Extender HDMI Receiver Remote Control Universal Power Adapter (NA/JP, UK, EU, ANZ) RJ11 Cable RJ11 to RS232 Converter Set of Mounting Screws Quick-Start Guide Mounting Brackets Rubber Feet
TAA Compliant: Yes
Environmentally Friendly: Yes
Application/Usage:
Digital Signage Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.

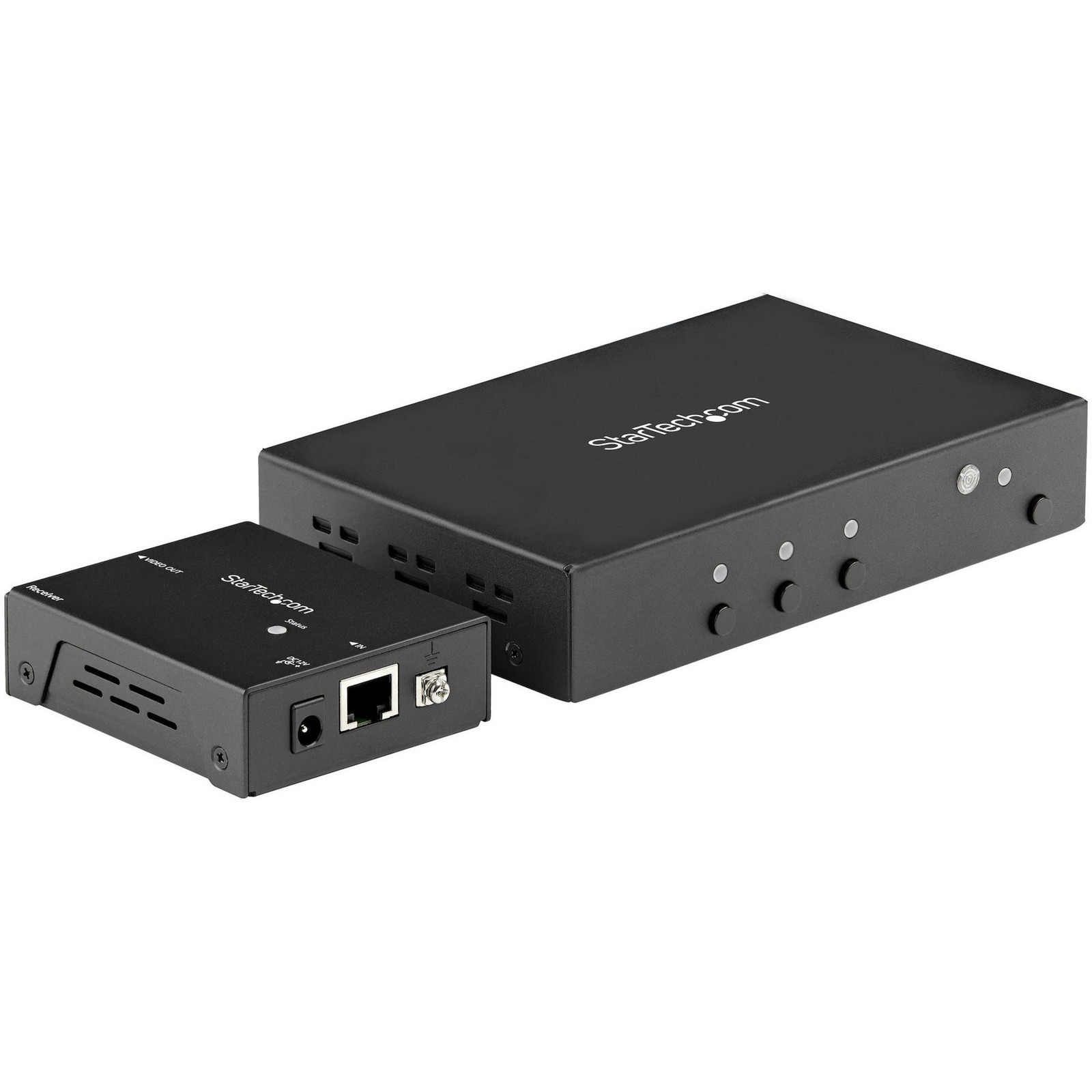

This HDMI over CAT6 extender with 3-port HDMI switch features HDBaseT™ and is TAA Compliant.
Astonishing 4K over CAT6
This HDMI Extender with a built-in Switch is capable of extending 7.1 audio and 4K at 30Hz video up to 115ft (35m), or 1080p up to 230ft (70m). The transmitter and receiver kit is connected using a single CAT5e/6 cable to avoid the hassle of running multiple cables.
Simplified Professional Installation
The HDMI Switch Box and Extender supports Power-over-Cable, meaning both the transmitter and receiver can be powered by the same single power source. Power-over-Cable is great for extending video to areas where power outlets may be limited, such as industrial sites. Use the metal housing, grounding bolts and included mounting brackets to create professional installation options, ideal for digital signage, boardrooms, and tradeshow applications.
Effortless Control with Automatic Switching
The 4K 30Hz HDMI extender box features several methods of input adjustment. Auto-detect switching selects newly connected devices, whereas priority selection allows you to choose the default active port. The IR Remote Control (batteries not included) and serial switching, using the included RJ-11 to DB9 adapter, offer additional input selection methods.
VS321HDBTK is backed by a 2-year warranty and free lifetime technical support.
Applications
- Enable presenters to connect a wide range of devices to one display
- Great for remote entertainment displays in restaurants, bars, or hotels
- Create brilliant digital signage displays in large commercial settings
- Optimize the location of your demo stations at tradeshows and in auditoriums
Package Contents:
- HDMI Extender
- HDMI Receiver
- Remote Control
- Universal Power Adapter (NA/JP, UK, EU, ANZ)
- RJ11 Cable
- RJ11 to RS232 Converter
- Set of Mounting Screws
- Quick-Start Guide
- Mounting Brackets
- Rubber Feet
SpecificationPower DescriptionPower Plug TypeType MPhysical CharacteristicsForm FactorDesktopReceiver Width4.10"Receiver Height1.30"Product ColorBlackReceiver Depth6.30"Receiver Weight (Approximate)1.30 lbWarrantyLimited Warranty2 YearInterfaces/PortsNetwork (RJ-45)YesHDMI OutYesNumber of HDMI Inputs3HDMI InYesNumber of HDMI Outputs1Number of Network (RJ-45) Ports2VideoMaximum Video Resolution4096 x 2160Graphics Modes4KGeneral InformationBrand Name
